SA66BVMW 0.073Sec 35Kg High Speed 12V HV Full CNC Case Waterproof Low Profile Blushless Programmable Smart Digital Servo
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.
AGFRC 0.073Sec 35Kg High Speed High Torque Brushless Low Profile Digital Servo For 1/10 Scale RC Drift

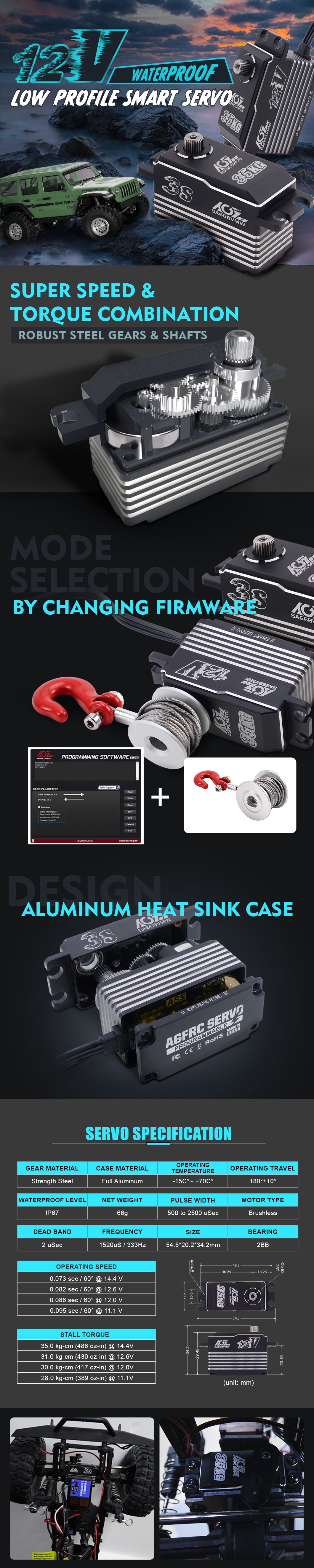

➤ SA66BVMW is low profile design smart servo, with a full aluminum short case and heat sink ribs for high-efficiency heat dissipation. 0.073sec fast speed, 35kg-cm high torque, and a magnetic sensor waterproof IP67, which allows the servo work ina humid environment or on rainy days.
➤ This low-profile smart servo allows for higher power applications. Enables it to be better applied to more models, like on-road, off-road, Touring, and drifting cars. Programmable Smart feature enable to change the firmware for regular and winch usage.
MAIN FEATURES
➤ Fast Cooling Heat Sink Case.
➤ Extra Strong Steel Gears.
➤ High Quality Brushless Motor.
➤ Metal Dual Ball Bearings.
➤ Programmable Digital Circuit.
➤ High Precision Magnetic Sensor Waterproof Up To IP67.
➤ Ideal for on-road, Touring, Drifting cars, airplanes, robots, etc..
SPECIFICATIONS
Operating Voltage
7.4V - 14.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Strength Steel
Sensor Type
Magnetic Sensor
Motor Type
Brushless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
TYU+JST 300mm / 22AWG
Wire Color
Dimensions
40.8*20.2*29.5mm
Weight
66g
Operating Speed
0.095 sec/60° @11.1V
0.086 sec/60° @12.0V
0.082 sec/60° @12.6V
0.073 sec/60° @14.4V
Stall Torque
28 kg·cm (389 oz·in) @11.1V
30 kg·cm (417 oz·in) @12.0V
31 kg·cm (430 oz·in) @12.6V
35 kg·cm (486 oz·in) @14.4V
PACKAGE INCLUDES
➤ 1 x SA66BVMW Servo
➤ 3 x 25T Plastic Horn
➤ 4 x M2 * 12mm Screw
➤ 1 x M3 * 8mm Screw
➤ 4 x Rubber Pad
➤ 4 x Copper Sleeve
➤ 1 x AGFRC Logo Sticker
➤ 1 x Silicon JST (Male) to XH2.5 4-Pin (Female) Adapter Cable, 20AWG, 10cm
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
