AGFRC
B45BHL V2 High Torque Fast Speed Low profile Digital Coreless Servo
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.

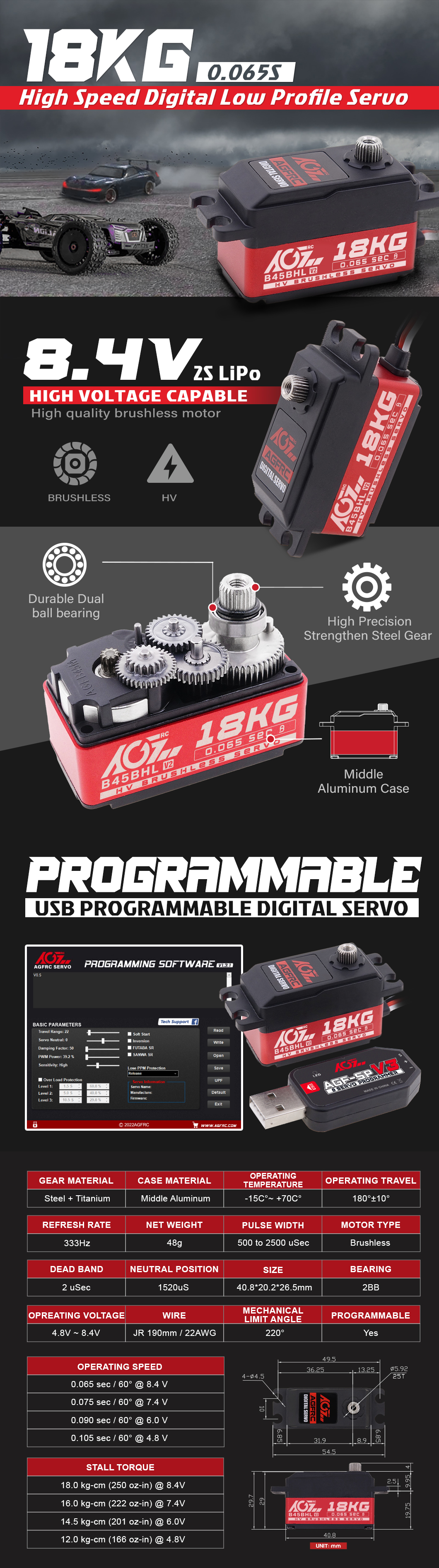

AGFRC B45BHL V2 0.065Sec 18Kg Fast Speed And Torque Low profile Digital Coreless Servo
➤ AGFRC B45BHL V2 programmable digital low profile Servo, with the plastic case of top and bottom, CNC aluminium middle case, and 4.8-8.4V nominal operating voltage. If your installation position is compact and has high requirements for speed and torque, then you should give this one a try of this one.
➤ In addition, the servo is made of green and environmentally friendly materials from production to packaging. It is an affordable and practical servo.
MAIN FEATURES
➤ Metal Double Ball Bearings.
➤ Splash-proof And Dust-proof.
➤ Plastic And CNC Aluminium Shell.
➤ Programmable Digital Low Profile Servo.
➤ More Durable Steel Gear And Titanium Gears.
➤ Long-life Span And Reliable Brushless Motor.
➤ Ideal for 1/10 1/12 On-Road, Off-Road and Truck cars, Helicopter, Plane, Robot Arm and Engine, etc.
SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum + Plastic
Gear Material
Strength Steel
Sensor Type
Potentiometer
Motor Type
Brushless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
JR 190mm / 22AWG
Wire Color
Dimensions
40*20.2*26.5mm
Weight
48g
Operating Speed
0.105 sec/60° @4.8V
0.090 sec/60° @6.0V
0.075 sec/60° @7.4V
0.065 sec/60° @8.4V
Stall Torque
12.0 kg·cm (166 oz·in) @4.8V
14.5 kg·cm (201 oz·in) @6.0V
16.0 kg·cm (222 oz·in) @7.4V
18.0 kg·cm (250 oz·in) @8.4V
PACKAGE INCLUDES
➤ 1 x B45BHL V2 Servo
➤ 2 x 25T Plastic Horn
➤ 4 x Mounting Screw
➤ 1 x Horn Screw
➤ 4 x Rubber Pad
➤ 4 x Copper Sleeve
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
Spec Datasheet
xxxxxx
