AGFRC A66BHLW 33KG Waterproof Brushless Servo
In stock: ships within 2 business days.
Low stock: lead time confirmed upon order.
Delivery: 4–9 days after shipment.
AGFRC A66BHLW 33KG 0.068sec IP67 Brushless Programmable Digital Servo with Magnetic Angle Sensor
➤ The AGFRC A66BHLW is a high-torque brushless digital servo designed for demanding RC vehicles and outdoor control applications. It delivers up to 33 kg-cm of stall torque and an operating speed of 0.068 sec/60° at 8.4 V.
➤ Featuring a brushless motor, FET drive, magnetic angle sensor, strength steel gears, dual ball bearings and an aluminum case, the A66BHLW provides responsive control and dependable mechanical support. Its IP67-rated protection, programmable PWM control and wide 4.8-8.4 V input range make it suitable for high-load RC setups.
Main Features
● Maximum stall torque of 33 kg-cm at 8.4 V
● Operating speed up to 0.068 sec/60° at 8.4 V
● Brushless motor with FET drive for responsive operation
● IP67-rated protection against dust and water ingress
● Magnetic angle sensor for precise position feedback
● Strength steel gears, metal bearing support and dual ball bearings
● Programmable PWM digital control with a 333 Hz refresh rate and 2 μsec dead band
● Aluminum case with a compact 40.8 x 20.2 x 29.5 mm body and 66 g net weight
Applications
● Ideal for 1/8 and 1/10 RC cars, trucks, crawlers, off-road vehicles and other high-load outdoor applications requiring fast, waterproof servo control.

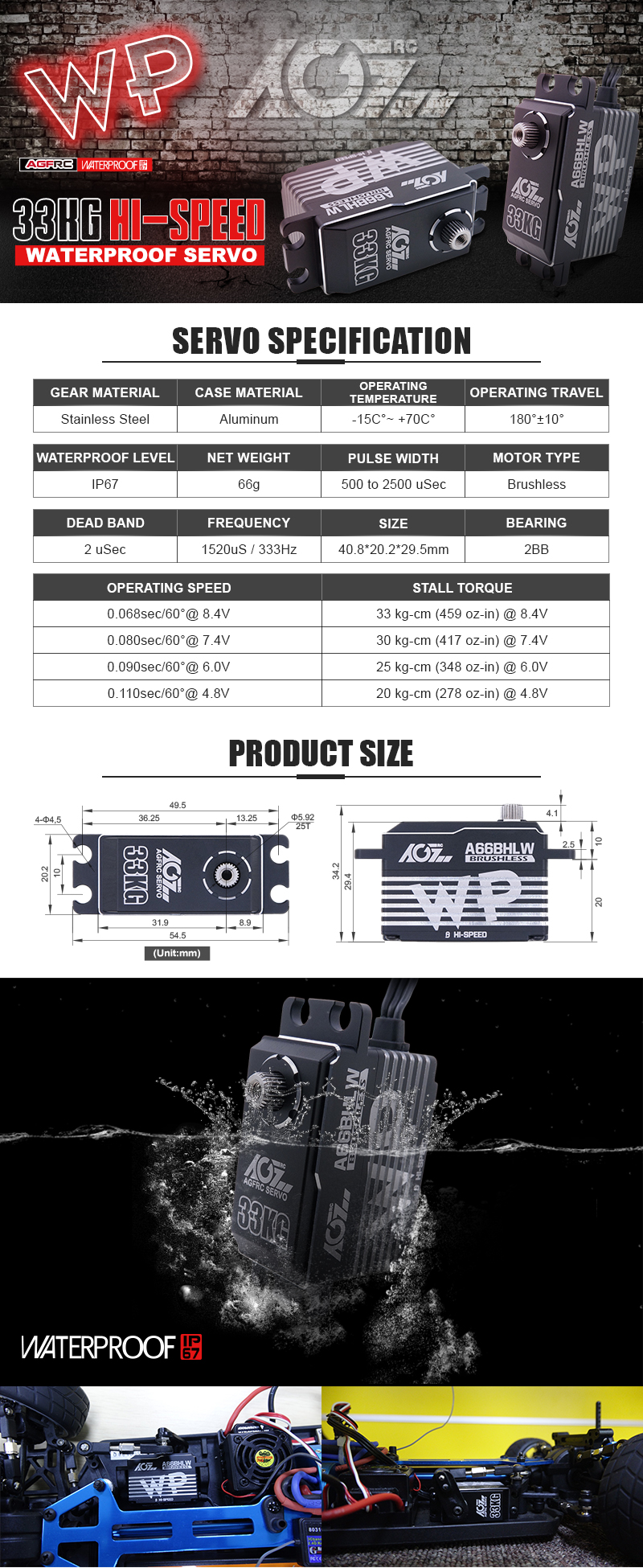

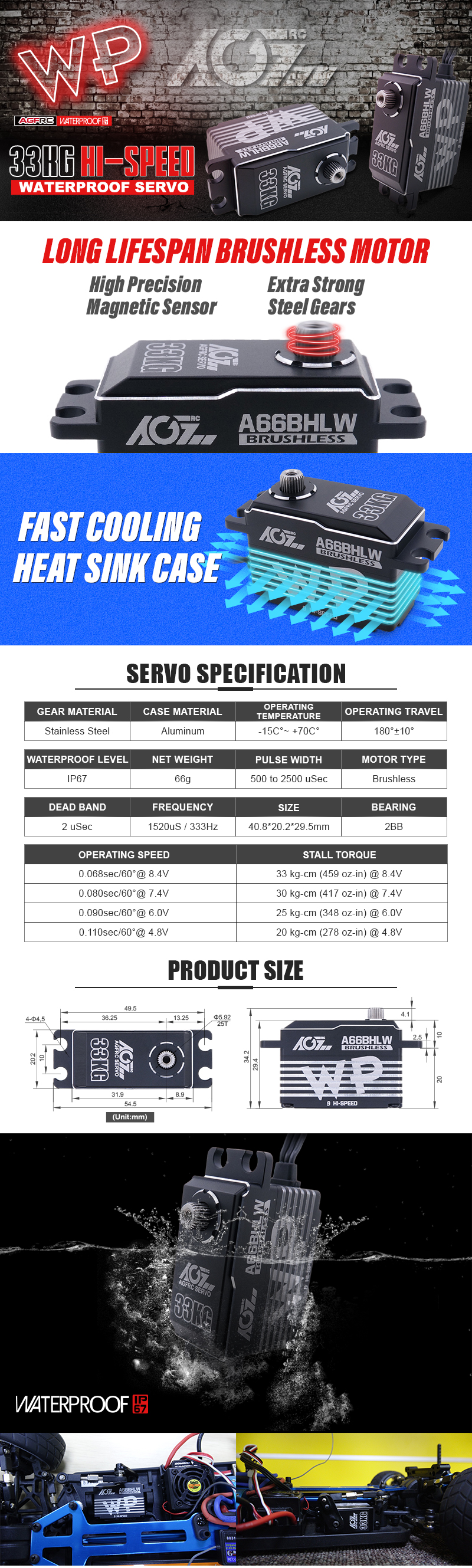

Specifications
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Strength Steel
Sensor Type
Magnetic Sensor
Motor Type
Brushless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
TYU 180mm / 22AWG
Wire Color
Dimensions
40.8*20.2*29.5 mm (1.61 × 0.80 × 1.16 in)
Weight
66 g (2.33 oz)
Operating Speed
0.110 sec/60° @4.8V
0.090 sec/60° @6.0V
0.080 sec/60° @7.4V
0.068 sec/60° @8.4V
Stall Torque
20 kg·cm (278 oz·in) @4.8V
25 kg·cm (347 oz·in) @6.0V
30 kg·cm (417 oz·in) @7.4V
33 kg·cm (458 oz·in) @8.4V
Package Includes
● 1 x A66BHLW Servo
● 1 x 25T Metal Horn
● 3 x 25T Plastic Horn
● 4 x M3 * 12mm Screw
● 1 x M3 * 8mm Screw
● 2 x M2 * 8mm Screw
● 4 x Rubber Pad
● 4 x Copper Sleeve
● 1 x AGFRC Logo Sticker
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
By
Robert Shanks
2021/1/1 9:12:58
Awesome servo, great power.
1
By
Malinda
2020/12/29 17:09:38
servo works great. Works good on 6v, but Struggles a little. The servo can handle 7.4v. Get a bec and put it on 7.4v, it will be much better
1
By
Rodgers
2020/11/12 12:40:48
This servo works really awesome, quiet, fast, with great torque, very satisfied, highly recommended.
1
By
Nick Waltons
2020/11/3 16:37:13
Awesome servo. Pretty pricy but worth it. Fast and responsive as well as strong.
1
By
Bobby
2020/10/21 17:01:18
Best upgrade dollar for dollar.
1
By
David
2020/10/10 14:40:47
Very strong and smooth operation. Probably going to pick up another just to keep oh hand for the next project
1
