AGFRC
Direct Power CNC High Torque Waterproof BLS Programmble Low Profile Digital Servo (A53BULW)
Estimated Standard shipping time is about 4 ~ 8 days
For the inventory goods, the package will be dispatched within 3 working days

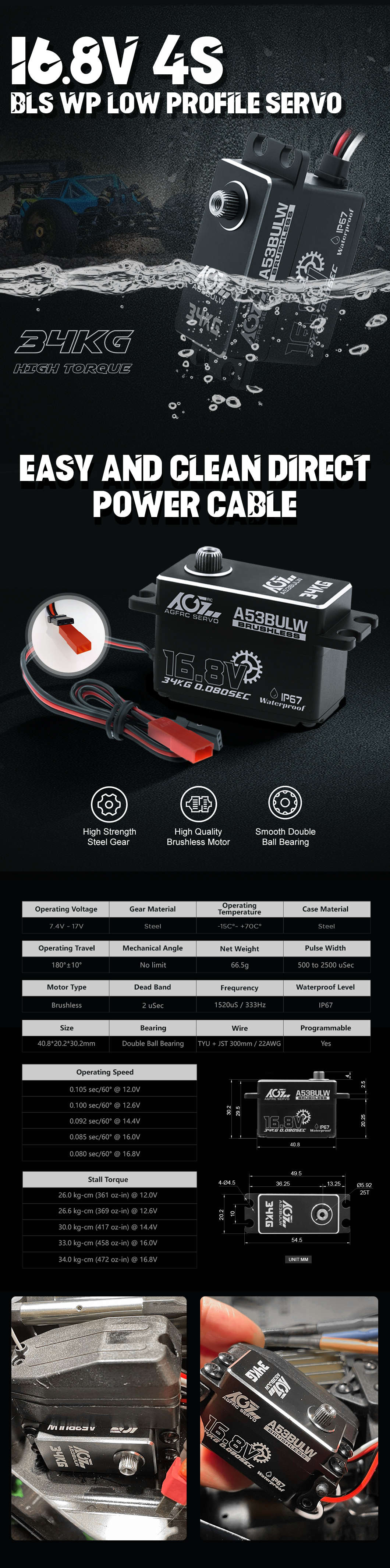

AGFRC Direct Power CNC High Torque Waterproof BLS Programmable Low Profile Digital Servo (A53BULW)
A53BULW is a low-profile servo, Dust-proof and splash-proof CNC shell design, a magnetic sensor waterproof reaching IP67 grade, which can be used for harsh environments such as rainy days, muddy, sand dunes, snow, streams, and humidity.
With the cooperation of a long-life brushless motor and reinforced steel gears, the work is more efficient, precise, and smooth. Of course, custom parameter programming is also an essential function.
Main Feature
- 3S/4S LiPo Direct Power
- High Quality Long Life Span Brushless Motor.
- Silky Smooth Double Ball Bearings.
- High Accuracy Magnetic Sensor Waterproof IP67.
- Programmable Digital Circuits.
- Ideal For 1/8, 1/10 Scale Off-Road 4WD Buggy, Monster Truck, Helicopter, Robot And Engine etc.
Specification
- Model Name: A53BULW
- Operating Voltage: 7.4V-17V
- Operating speed: 0.105sec/60° @ 12.0V
- Operating speed: 0.092sec/60° @ 14.4V
- Operating speed: 0.085sec/60° @ 16.0V
- Operating speed: 0.080sec/60° @ 16.8V
- Stall Torque: 26 kg-cm (361 oz-in) @ 12.0V
- Stall Torque: 30 kg-cm (417 oz-in) @ 14.4V
- Stall Torque: 33 kg-cm (458 oz-in) @ 16.0V
- Stall Torque: 34 kg-cm (472 oz-in) @ 16.8V
- Gear: Steels
- Motor: BLS
- Size: 40.8*20.8*30.2mm(1.60 x 0.82 x 1.19 in)
- Weight: 66.5g
- Connector Wire: TYU+JST 300mm / 22AWG
Download Spec Datasheet
Please click HERE to download the spec datasheet for the A53BULW servo.
- Brand:
- AGFRC
- Iterm Name:
- A53BULW
- Control System:
- Pulse Width Modulation Control (PWM)
- Refresh Rate:
- 333Hz
- Neutral Position:
- 1520uS
- Signal Mode:
- Digital
- Dead Band:
- 2 uSec
- Operating Voltage:
- 7.4V ~ 17.0V
- Operating Travel:
- 180°±10°
- Signal Range:
- 500 to 2500 uSec
- Angle Sensor:
- Magnet Angle Sensor
- Operating Temperature:
- -15C°~ +70C°
- Mechanical Angle:
- No Limit
- Waterproof Level:
- IP67
- Motor Type:
- Brushless
- Motor Drive:
- FET Drive
- Horn Gear Spline:
- 25T-φ5.92mm
- Programmable:
- Yes
- Bearing:
- Double Ball Bearings
- Bearing Material:
- Metal
- Gear Material:
- Strength Steel
- Case Material:
- Aluminium AL6061T6
- Certification:
- CE,FCC,RoHs
- Product Size:
- 40.8*20.2*30.2mm(1.60*0.79*1.20 in)
- Wire Guage:
- TYU + JST 300mm / 22AWG
- Net Weight:
- 66.5g
