AGFRC

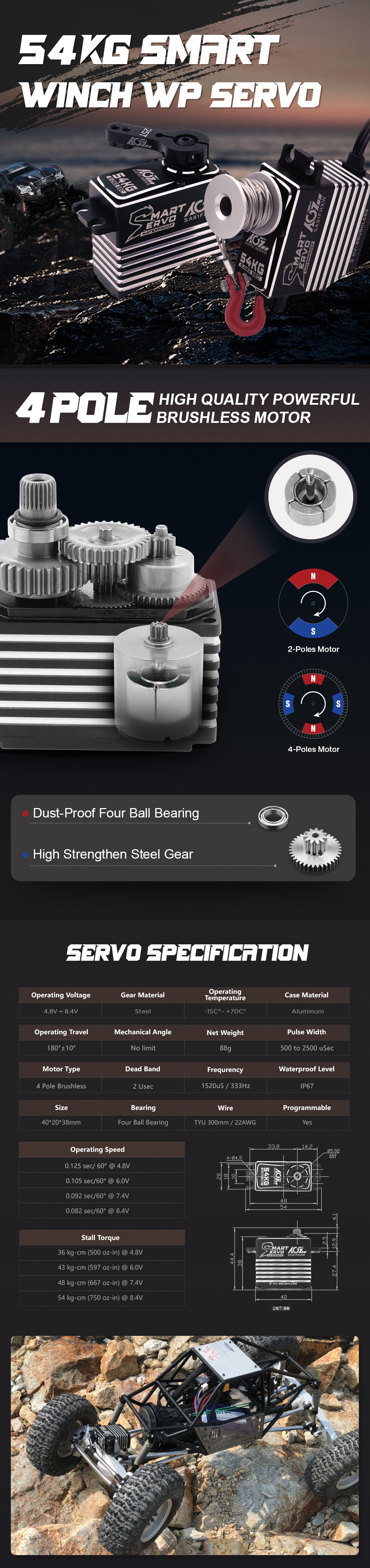

High Power 54KG Super Torque 4-Poles Brushless Waterproorf Smart RC Servo (SA81FHXW)
AGFRC 54KG 0.082Sec High Torque High Speed IP67 Waterproof 4-Poles Brushless Aluminum Case Design Programmable Digital Steering Smart Servo for 1/10 1/8 RC Crawler Buggy Truck (SA81FHXW)
Some people like high torque servos and others like fast servos. Therefore, AGFRC always develops more types of products according to everyone's needs.
The 54KG torque SA81FHXW 2S high performance 4-pole brushless servo maintains the exterior design and materials of the SA81FHMW and SA81FHSW. But the difference is that it has a super fast speed of 0.082Sec, Perfect for racing and events full of speed and passion. And the CNC shell and heat sink design can effectively solve the hot situation during the competitions. Even in rainy, wet environments and thick snow, IP67 magnetic water resistance can break through the limitations brought by these environments. In addition, the programmable function can also support regular mode and winch mode. Don't forget that it also has super reliable 4 bearings and Pin shaft, believe that no matter what the scene can bring you more surprises.
Feature
Programmable HV Digital Servo
2S 8.4V High Voltage
IP67 Magnetic Waterproof Function
Heat Sink Aluminum Case
Strengthened Stainless Steel Gears
New Type High Quality 4-Pole Brushless Motor
Super Reliable Four Ball Bearing
Reinforce Pin Shaft and Structure
Totally Green Material and Production
Support Parameter Programming Regular Mode And Winch Mode
Superior Servo Ideal For 1/10, 1/8 Scale Cars, Boats, Large Size Airplane/Jet, Off Road, Monster Truck, Truggy, Even Medical Equipment and Robot Parts Teaching.
Stall Torque
36 kg-cm (500 oz-in) @ 4.8V
43 kg-cm (597 oz-in) @ 6.0V
48 kg-cm (667 oz-in) @ 7.4V
54 kg-cm (750 oz-in) @ 8.4V
Operating Speed
0.125sec/60° @ 4.8V
0.105sec/60° @ 6.0V
0.092sec/60° @ 7.4V
0.082sec/60° @ 8.4V
Package included
Item 1:
- 1 x AGFRC SA81FHXW Programmable Smart Servo
- 1 x 25T Black Metal Servo Horn
- 1 x Accessory Kit
Item 2:
- 1 x AGFRC SA81FHXW Programmable Smart Servo
- 1 x AGF-SPV3 Servo Programmer
- 1 x 25T Black Metal Servo Horn
- 1 x Accessory Kit
- Note: 1. Item 1 does not include the AGF-SPV3 servo programmer.
- 2. This product price does not include EU VAT.
- Brand:
- AGFRC
- Iterm Name:
- SA81FHXW
- Signal Mode:
- Digital
- Control System:
- Pulse width modulation control
- Refresh Rate:
- 333Hz
- Neutral Position:
- 1520uS
- Dead Band:
- 2 uSec
- Operating Voltage:
- 4.8V~8.4V
- Operating Travel:
- 180°±10°
- Mechanical Angle:
- No Limit
- Signal Range:
- 500 to 2500 uSec
- Angle Sensor:
- Magnet Angle Sensor
- Temperature:
- -15C°~ +70C°
- Motor Type:
- 4-Poles Brushless
- Motor Drive:
- FET Drive
- Horn Gear Spline:
- 25T-φ5.92mm
- Programmable:
- Yes
- Waterproof Level:
- IP67
- Bearing:
- Four Ball Bearings
- Bearing Material:
- Metal
- Gear Material:
- Strength Steel
- Case Material:
- AL6061T6
- Certification:
- CE,FCC,RoHs
- Wire Guage:
- TYU 300mm / 22AWG
- Net Weight:
- 85g(3.00oz)
- Product Size:
- 40*20*38mm (1.57 x 0.78 x 1.5 in)
