AGFRC
A81FHS Aluminum Case 68KG Monster Torque HV 4-Pole Brushless Programmable RC Servo For 1/8 RC Crawler Buggy Truck
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.

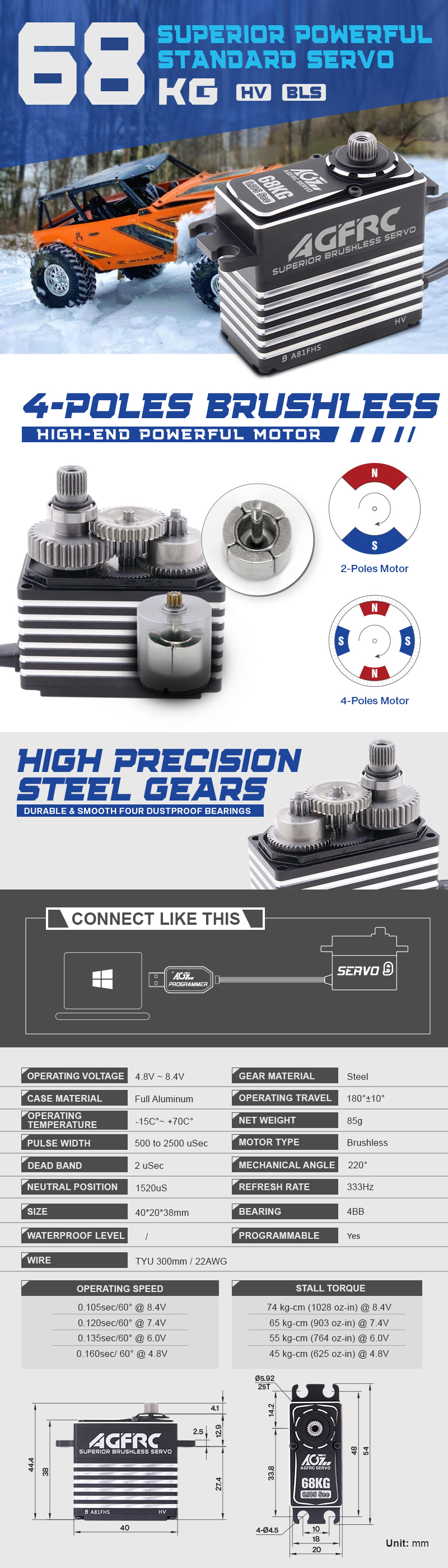

AGFRC A81FHS 0.105Sec 68KG High Torque Aluminum Case Monster Torque HV Brushless Programmable RC Steering Servo
➤ If your model with limit installation space, but require higher torque around 68KG. Here highly recommend our brand new and powerful superior servo A81FHS with monster spec 68KG 0.105Sec @ 8.4V, ideal choice for high power models.
➤ Fully upgrade from design and material for the whole servo, incredibly hardened stainless steel gears and pin shaft, superb reliable and smooth four ball bearings, wide-voltage capability to avoid additional adapters or regulators, monster power 4-pole brushless motor, which delivery ultra high torque with only 38mm height. Dust and water resistant enable to run on the wet glass. Besides, it also continue programmable feature , which enable to adjust the servo parameter by USB programmer for different application.
➤ If you use our A81BHM/A81BHS before, you shouldn’t miss it. It will bring you a superior driving feel.
➤ If you need to purchase replacement gears for A81FHS, please select the replacement gear option when making your purchase.
MAIN FEATURES
➤ Programmable HV Digital Servo.
➤ Full CNC Machining Case.
➤ Strengthened Stainless Steel Gears.
➤ Super Strong Three Ball Bearings.
➤ New Ultra Strong 4-Pole Brushless Motor.
➤ Dust Resistant Four Ball Bearings.
➤ Reinforce Pin Shaft and Structure.
➤ Totally Green Material and Production.
➤ For All-purpose Giant Scale Airplanes, Jet, 1/5, 1/8, 1/10 Scale Rock Crawler, Buggy, Truck, Truggy, Robot etc.
SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Strength Steel
Sensor Type
Potentiometer
Motor Type
4-Pole Brushless
Bearing
4BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
TYU 300mm / 22AWG
Wire Color
Dimensions
40*20*38mm
Weight
85g
Operating Speed
0.160 sec/60° @4.8V
0.135 sec/60° @6.0V
0.120 sec/60° @7.4V
0.105 sec/60° @8.4V
Stall Torque
42 kg·cm (583 oz·in) @4.8V
52 kg·cm (722 oz·in) @6.0V
60 kg·cm (834 oz·in) @7.4V
68 kg·cm (945 oz·in) @8.4V
PACKAGE INCLUDES
➤ 1 x A81FHS Servo
➤ 1 x 25T Metal Horn
➤ 2 x 25T Plastic Horn
➤ 4 x M3*12mm Screw
➤ 1 x M3*8mm Screw
➤ 2 x M2*8mm Screw
➤ 4 x 9*6.9*5.6mm Rubber Pad
➤ 4 x φ6*φ3.5*5mm Copper Sleeve
➤ 1 x AGFRC Logo Sticker
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
