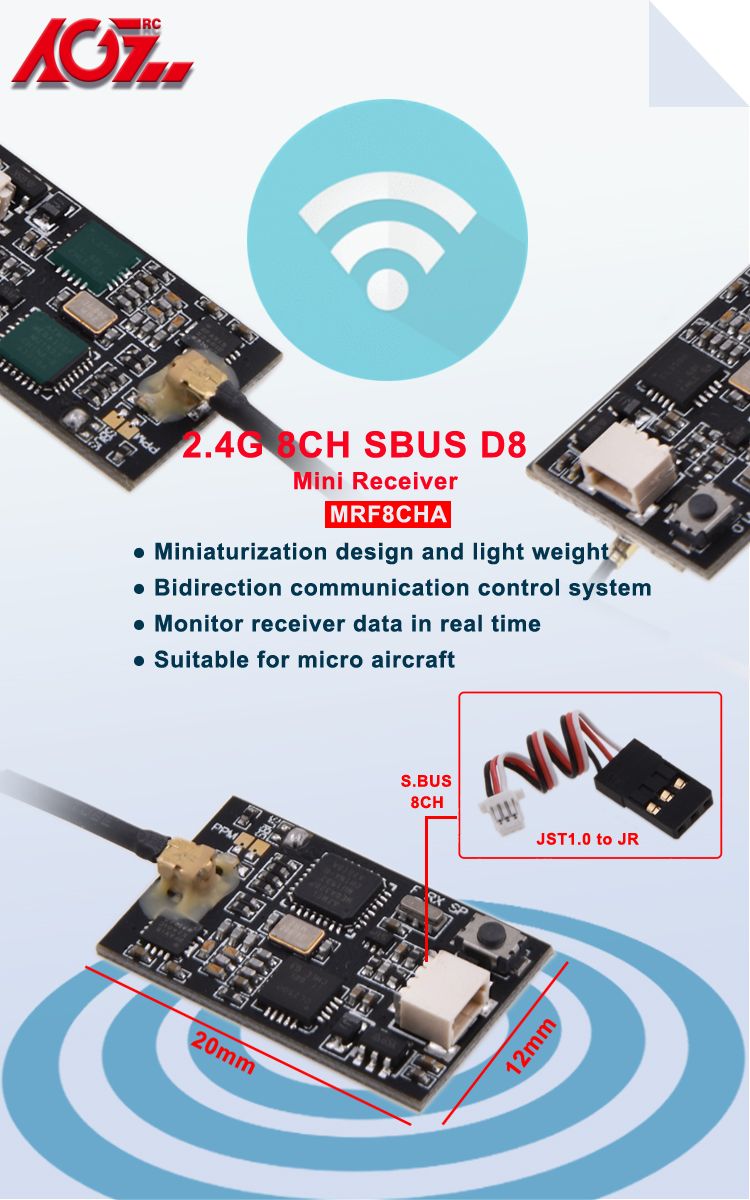

8CH RC Receiver - SBUS D8 Mini Receiver Especially Compatible with Frsky Multirotor Speed Controller (MRF8CHA)

Specification

Item Name: MRF8CHA

Operating Voltage: 4.8V～8.4V

Dimension: 20x12x5mm (exclude antenna)

Weight: 1.8g

Channels: S-BUS (8CH)

Antenna: Single Antenna

Communication Data: Bidirection communication

Compatibility: FRSKY XSR, XJT and X9D,X9DP,X9E,X12S in D8 mode

• Feature
• 1) High quality PA to ensure high receiving sensitivity;

2) Miniaturization design, compact size suitable for tiny aircraft;

3) Serial signal S-BUS/ 8CH output, connect directly to flight control system, especially for mini multirotor and aircraft.

4) Bidirection communication remote control system, available to display the receiver voltage, receiving signal etc real-time data on transmitter.

Bind Procedure

1. Turn on transmitter, select MENU and enter MODEL SETUP, select D8 mode and start BIND function;

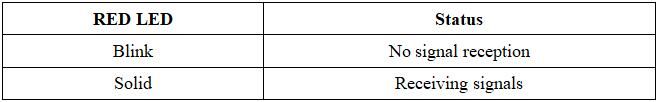

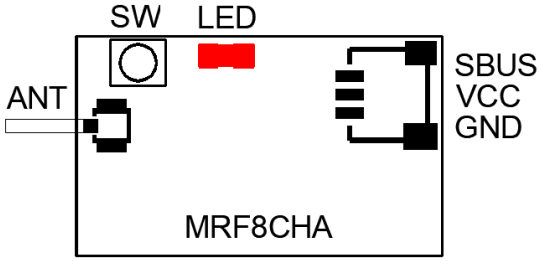

2. Press and hold the SW on the receiver and power on, the RED LED in the receiver changes from solid to off to complete BIND;

3. Transmitter exit BIND function, power-on again the receiver, RED LED on means BING successfully;

4. If failed to bind, please repeat above steps.
