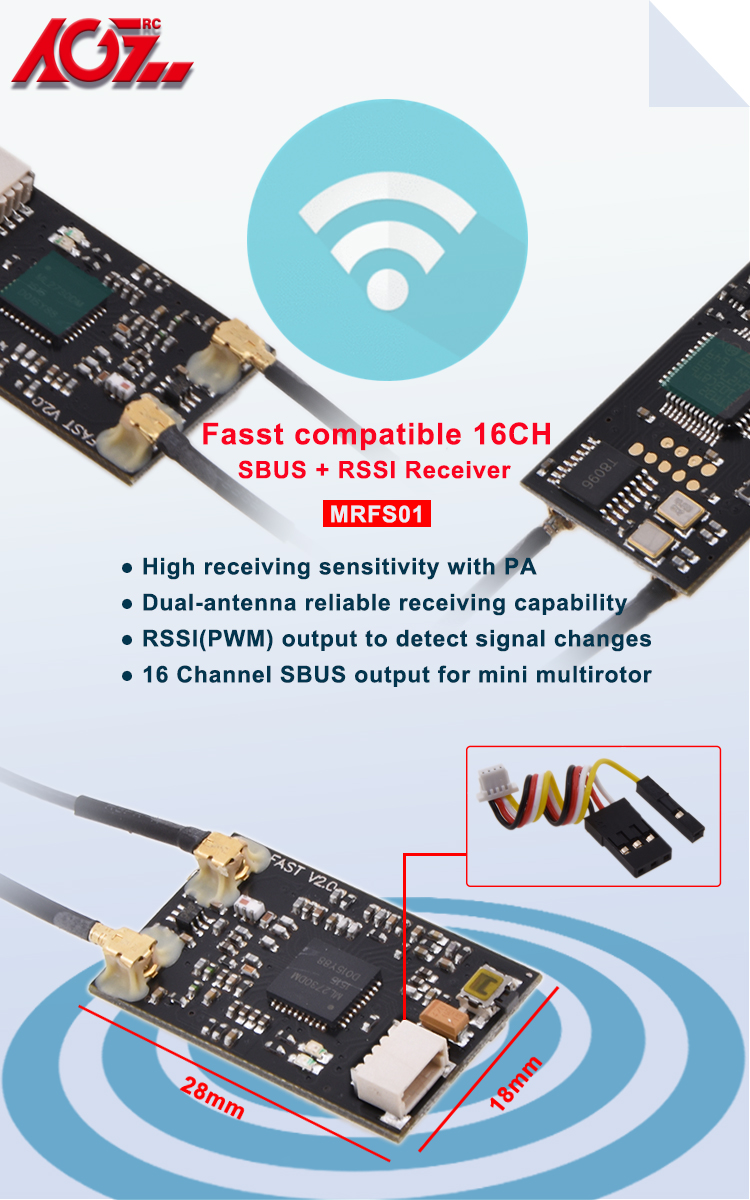

MRFS01 16CH 2.4G Futaba Compatible Receiver for Multi-rotor FPV

Micro receiver MRFS01 FTB FASST sbus rssi compatible FPV drone for FUTABA T8G Operating Voltage: 4.8V-8.4V

Micro receiver MRFS01 Compatibility

Compatible Futaba FASST remote control system

Suitable for Futaba 6EX, 7C, TM-7, TM-8, T8FG, T10C, TM-10, T10CG, T12Z, T12FG, TM-14,

T14MZ, T18MZ etc FASST remote control

Micro receiver MRFS01 Specification

Operating Voltage: 4.8V～8.4V

Dimension: 28x18x5mm (exclude antenna)

Weight: 3.8g

Antenna: Dual-antenna

Output Channels:S-BUS(16CH) + RSSI(PWM)

Micro receiver MRFS01 Feature

1) High quality PA to ensure high receiving sensitivity;

2) Dual-antenna design, available to mount in different angle to increase the reception reliability;

3) Serial signal S-BUS (16CH) output, connect directly to flight control system, especially for mini

multirotor and aircraft to save mounting space;

4) RSSI(PWM) output, available to detect the signal changes of the radio control via receiver.
