38KG High Torque Brushless Cyclic Servo for Helicopter(A80BHM-H)

stars, based on 0reviews
$96.99 piece
100items available
Contact Us

Product Tag:

helicopter servo
不能存图片

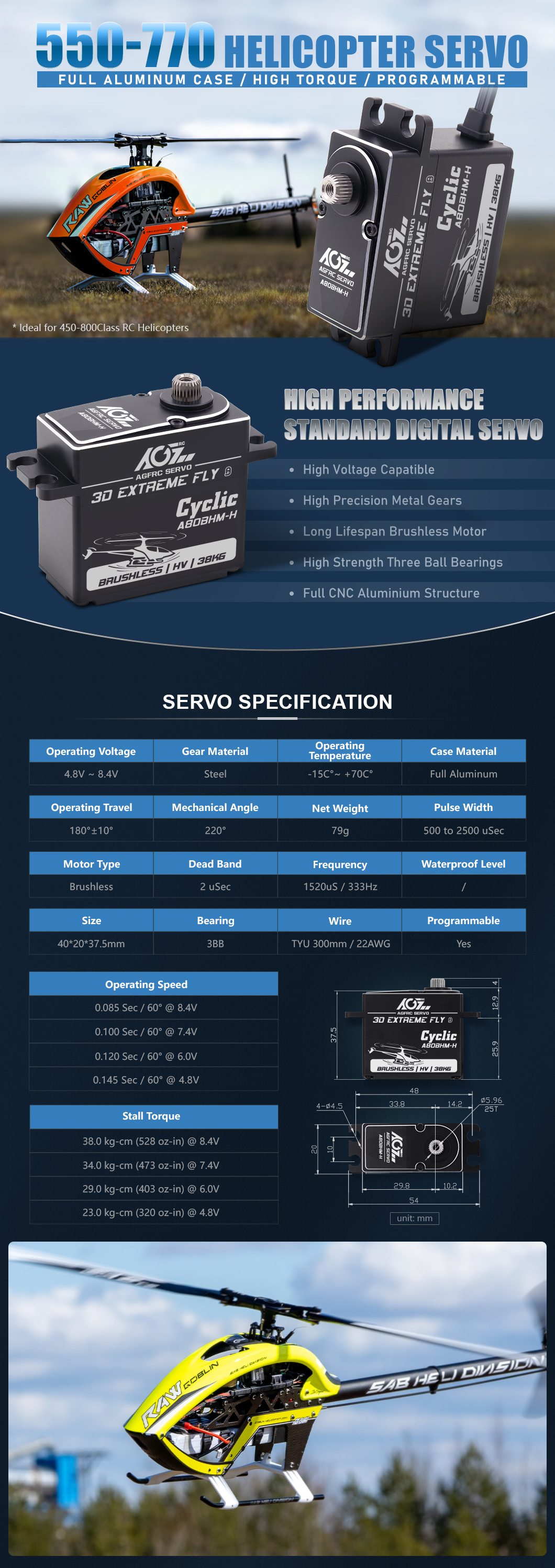

AGFrc 38KG High Torque High Voltage Brushless Helicopter Cyclic Servo(A80BHM-H)


Feature

  • High performance standard digital servo
  • HV programmable servo
  • High precision steel gear
  • High efficiency brushless motor
  • Long service life
  • High strength dual ball bearings
  • Full CNC Aluminium hulls and structure
  • Ideal for all kinds of rc helicopters


Stall Torque

  • 23 kg-cm (320 oz-in) @ 5.0V
  • 29 kg-cm (403 oz-in) @ 6.0V
  • 34 kg-cm (473 oz-in) @ 7.4V
  • 38 kg-cm (528 oz-in) @ 8.4V


Operating Speed

  • 0.145sec/ 60°@ 5.0V
  • 0.120sec/60° @ 6.0V
  • 0.100sec/60° @ 7.4V
  • 0.085sec/60° @ 8.4V


Package Included

  • 1 x AGFRC A80BHM-H Cyclic Servo
  • 1 x Accessory Kit




Brand:
AGFRC
Iterm Name:
A80BHM-H
Signal Mode:
Digital
Control System:
Pulse Width Modulation Control (PWM)
Refresh Rate:
333Hz
Neutral Position:
1520uS
Dead band:
2 uSec
Operating Voltage:
4.8V ~ 8.4V
Operating Travel:
110°±5°
Pulse width:
900 to 2100 uSec
Operating Temperature:
-20C°~ +60C°
Mechanical Angle:
220°
Angle Sensor:
Potentiometer
Motor Type:
Brushless
Motor Drive:
FET Drive
Horn Gear Spline:
25T-φ5.92mm
Programmable:
Yes
Bearing:
Duoble Ball Bearings
Bearing Material:
Metal
Gear Material:
Stainless Steel
Case Material:
Aluminium AL6061T6
Certification:
CE,FCC,RoHs
Product Size:
40*20*37.2mm(1.57*0.79*1.46in)
Wire Guage:
JR 300mm /22AWG
Net Weight:
79g(2.79oz)
