A80BHN-H 0.055Sec High Speed Aluminum Case Brushless 22Kg High Torque High Speed Helicopter Servo for Helicopter

$94.99 piece
items available

With sufficient stock, packages will be shipped within 2 working days.

Insufficient stock, we will inform you as soon as the lead time is confirmed.

The package is expected to be delivered within 4 - 9 days after shipment.

Contact Us

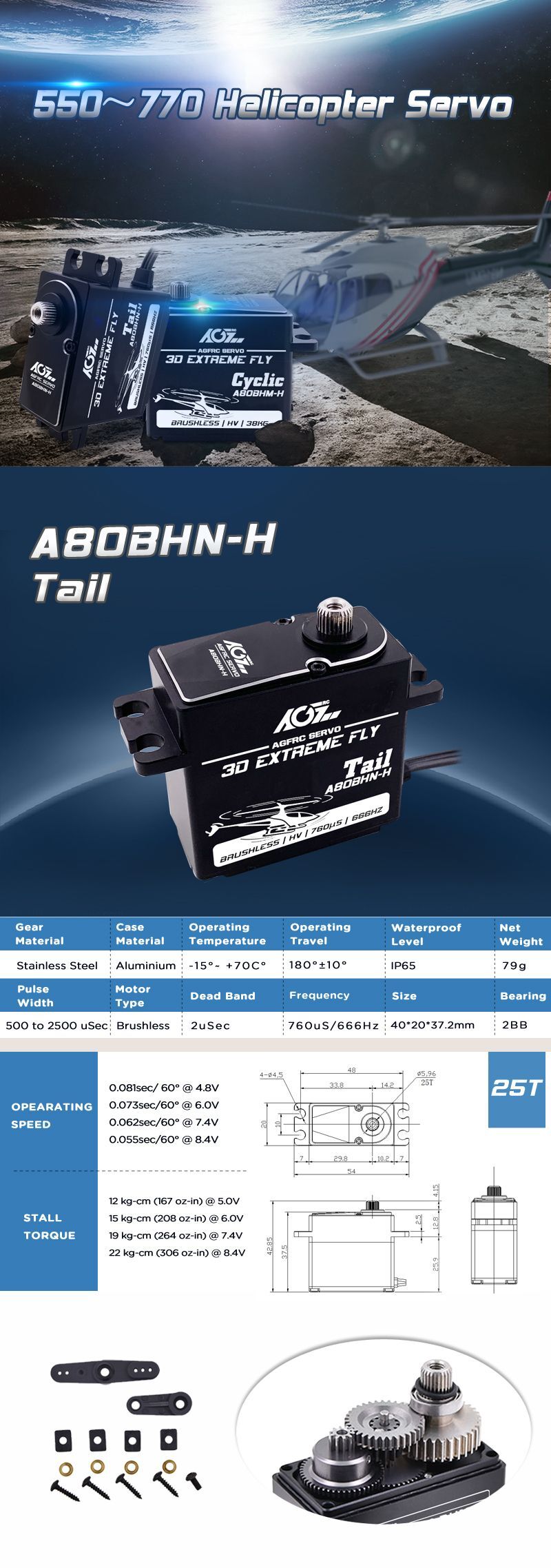

AGFRC Aluminum Case Brushless High Torque High Speed Helicopter Servo for Helicopter (A80BHN-H)
MAIN FEATURES
➤ High Performance Standard Cyclic Helicopter Servo.
➤ 25T Standard Spline.
➤ High Voltage Capable.
➤ Long Lifespan Brushless Motor.
➤ High Precision Metal Gears.
➤ High Strength Three Ball Bearings.
➤ Full CNC Aluminium Structure.

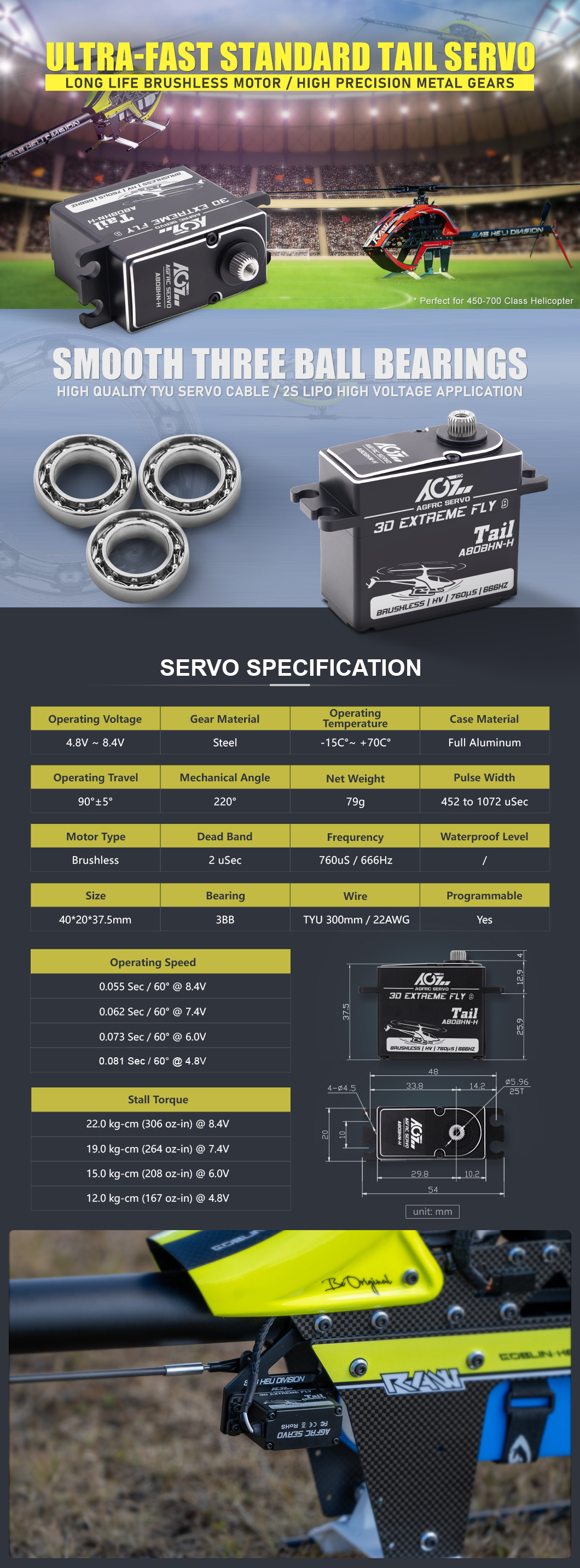

SPECIFICATIONS
Operating Voltage
4.8V- 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Strength Steel+Titanium
Sensor Type
Potentiometer
Motor Type
Brushless
Bearing
3BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
TYU 300mm / 22AWG
Wire Color



Dimensions
40*20*37.5mm
Weight
79g
Operating Speed
0.081 sec/60° @4.8V
0.073 sec/60° @6.0V
0.062 sec/60° @7.4V
0.055 sec/60° @8.4V
Stall Torque
12 kg·cm (167 oz·in) @4.8V
15 kg·cm (208 oz·in) @6.0V
19 kg·cm (264 oz·in) @7.4V
22 kg·cm (306 oz·in) @8.4V
PACKAGE INCLUDES
➤ 1 x A80BHN-H Servo
➤ 4 x 25T Plastic Horn
➤ 4 x M3*12mm Screw
➤ 1 x M3*8mm Screw
➤ 4 x 9*6.9*5.6mm Rubber Pad
➤ 4 x φ6*φ3.5*5mm Copper Sleeve
➤ 1 x AGFRC Logo Sticker

➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
Spec Datasheet
Download

+
