0.030sec High Speed Brushless Tail Servo for Helicopter(A80BHP-H)

stars, based on 0 reviews
$94.99now$94.04 piece
97items available
Contact Us

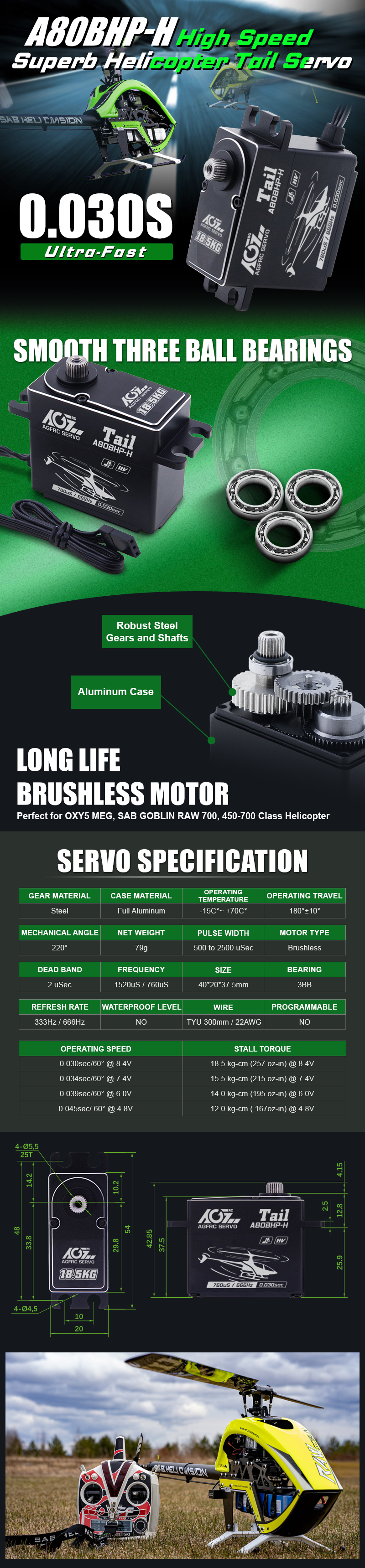

AGFrc 0.030sec High Speed 18.5KG High Voltage Standard Brushless Digital Tail Servo for RC Helicopter(A80BHP-H)

I wonder if you have heard of good things appearing in pairs? Yes i think you guessed it right. Now that there is a new A80BHX-H Cyclic helicopter servo,

how can it be missing its little partner A80BHP-H Tail helicopter servo? Look at its 8.4V high voltage and 0.030Sec super fast speed like lightning. The long-life brushless motor, the smooth three-bearing, and the torque of 18.5KG can perfectly match your every flight. Even if you like 3D or fancy flying, don't worry, ultra-sturdy reinforced steel gears and Full CNC aluminium case will be reliable backing. All processes from raw materials to production are environmentally friendly and green. It is very suitable for OXY5 MEG, SAB GOBLIN RAW 700, 450-700 Class Helicopters, ect. Bring it and let your flying dreams fly!


Feature

  • Ultra-Fast Standard Tail Servo

    25T Standard Spline

    Smooth Three Ball Bearings

    Long Life Brushless Motor

    Fast Cooling Aluminum Case

    Super-Sturdy Steel And Titanium Gear

    High Quality TYU Servo Cable

    2S LiPo High Voltage Application

    Perfect for OXY5 MEG, SAB GOBLIN RAW 700, 450-700 Class Helicopter


Stall Torque

  • 12.0 kg-cm ( 167oz-in) @ 4.8V

    14.0 kg-cm (195 oz-in) @ 6.0V

    15.5 kg-cm (215 oz-in) @ 7.4V

    18.5 kg-cm (257 oz-in) @ 8.4V


Operating Speed

  • 0.045sec/60° @ 4.8V

    0.039sec/60° @ 6.0V

    0.034sec/60° @ 7.4V

    0.030sec/60° @ 8.4V


Package Included

  • 1 x AGFRC A80BHP-N Helicopter Tail Servo
  • 1 x Accessory Kit

  • Note:1This product price does not include EU VAT.




Brand:
AGFRC
Iterm Name:
A80BHP-H
Control System:
Pulse Width Modulation Control (PWM)
Refresh Rate:
333Hz / 666Hz
Neutral Position:
1520uS / 760uS
Signal Mode:
Digital
Dead band:
2 uSec
Operating Voltage:
4.8V ~ 8.4V
Operating Travel:
180°±10°
Signal Range:
500 to 2500 uSec
Angle Sensor:
Potentiometer
Operating Temperature:
-15C°~ +70C°
Mechanical Angle:
220°
Motor Type:
Brushless
Motor Drive:
FET Drive
Horn Gear Spline:
25T-φ5.92mm
Programmable:
No
Bearing:
Three Ball Bearings
Bearing Material:
Metal
Gear Material:
Strength Steel
Case Material:
Aluminium AL6061T6
Certification:
CE,FCC,RoHs
Wire Guage:
TYU 300mm / 22AWG
Net Weight:
79g(2.79oz)
Product Size:
40*20*37.5mm(1.57*0.79*1.48in)
