14kg Programmable Low Profile Coreless Digital Servo(A62CLS)

不能存图片

AGFRC 14KG Digital Low Profile Steering Servo 0.074sec High Speed Programmable Coreless RC Servo Full CNC Metal Gear for 1/10 RC Drift Racing Car Truck(A62CLS)


Feature

High Performance Low Profile Digital Servo

High Precision Steel Gear

High Quality Coreless Motor

Dual Ball Bearing

Full Aluminium Cooling Case

Water And Dust Resistance

Programmable Digital Circuit

Ideal for 1/8, 1/10 On road Car, 1/10 Off road Car, Aircraft


Stall Torque

  • 10.0 kg-cm (139oz-in) @ 4.8V
  • 12.0 kg-cm (167 oz-in) @ 6.0V
  • 13.0 kg-cm (181 oz-in) @ 7.4V
  • 14.0 kg-cm (195 oz-in) @ 8.4V


Operating Speed

  • 0.105sec/60° @ 4.8V
  • 0.093sec/60° @ 6.0V
  • 0.082sec/60° @ 7.4V
  • 0.074sec/60° @ 8.4V

  • Package Included
  • Item 1:
  • 1 x AGFRC A62CLS Low Profile Servo
  • 1 x Accessory  Kit

  • Item 2:
  • 1 x AGFRC A62CLS Low Profile Servo
  • 1 x AGF-SPV2 Servo Programmer
  • 1 x Accessory  Kit

  • Item 3:
  • 1 x AGFRC A62CLS Low Profile Servo
  • 1 x AGF-SPV2 Servo Programmer
  • 1 x 25T Black Metal Servo Horn
  • 1 x Accessory  Kit

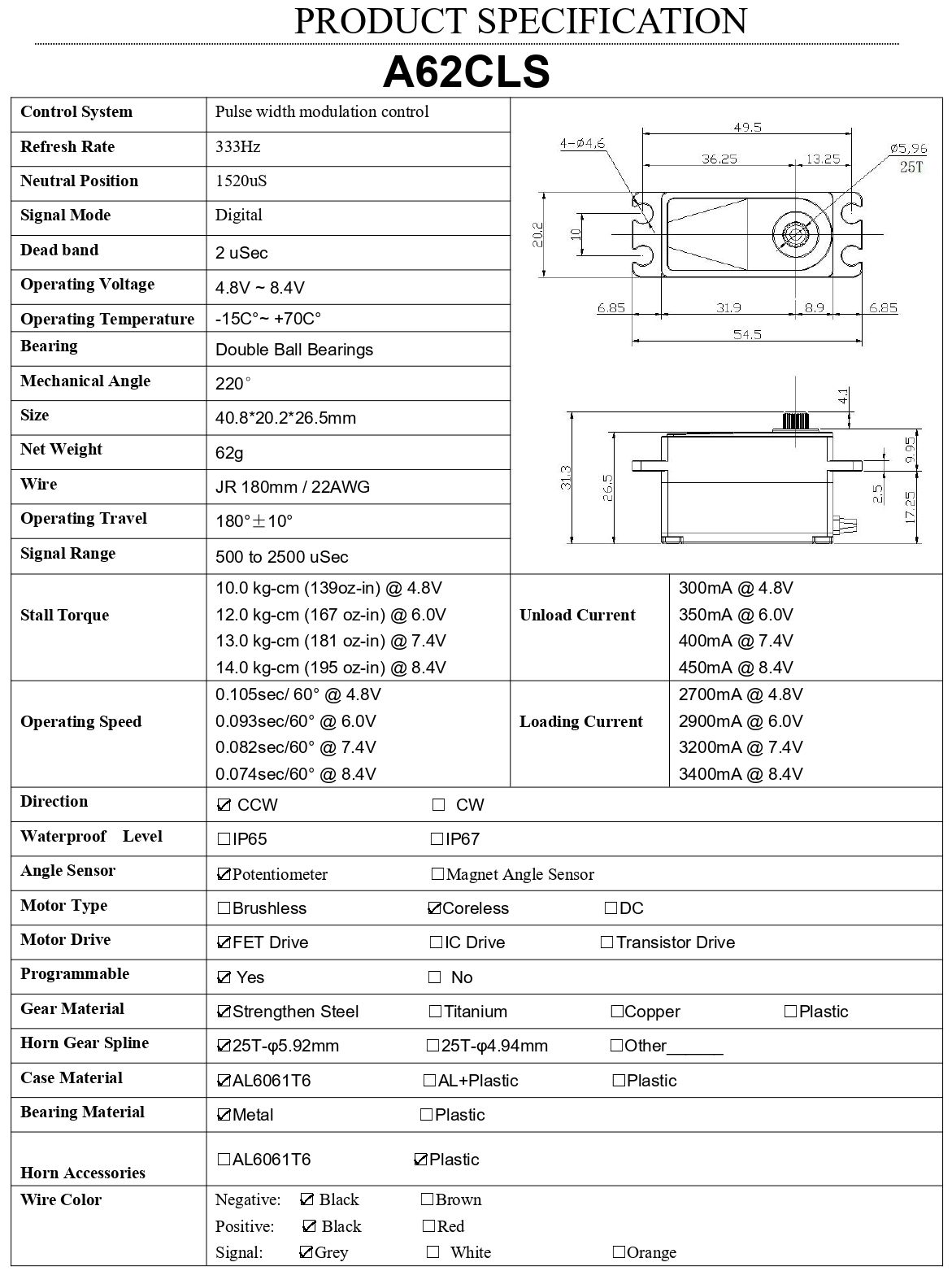

Brand:
AGFRC
Item Name:
A62CLS
Control System:
Pulse width modulation control
Refresh Rate:
333Hz
Neutral Position:
1520uS
Signal Mode:
Digital
Dead band:
2 uSec
Operating Voltage:
4.8V ~ 8.4V
Operating Temperature:
-15C°~ +70C°
Bearing:
Dual Ball Bearing
Operating Travel:
180°±10°
Signal Range:
500 to 2500 uSec
Angle Sensor:
Potentiometer
Mechanical Angle:
220°
Motor Type:
Coreless
Motor Drive:
FET Drive
Horn Gear Spline:
25T-φ5.92mm
Programmable:
Yes
Bearing Material:
Metal
Gear Material:
Strength Steel+Titannium
Case Material:
AL6061T6
Certification:
CE,FCC,RoHs
Product Size:
40.8*20.2*26.5mm (1.61*0.80*1.04 inch)
Wire Guage:
JR 180mm /22AWG
Net Weight:
62g(2.19oz)
