20KG 0.070sec High Speed Low Profile Programmable Brushless Servo(A62BHL)

stars, based on 0reviews
100items available
Contact Us

Product Tag:

1:10 scale
不能存图片

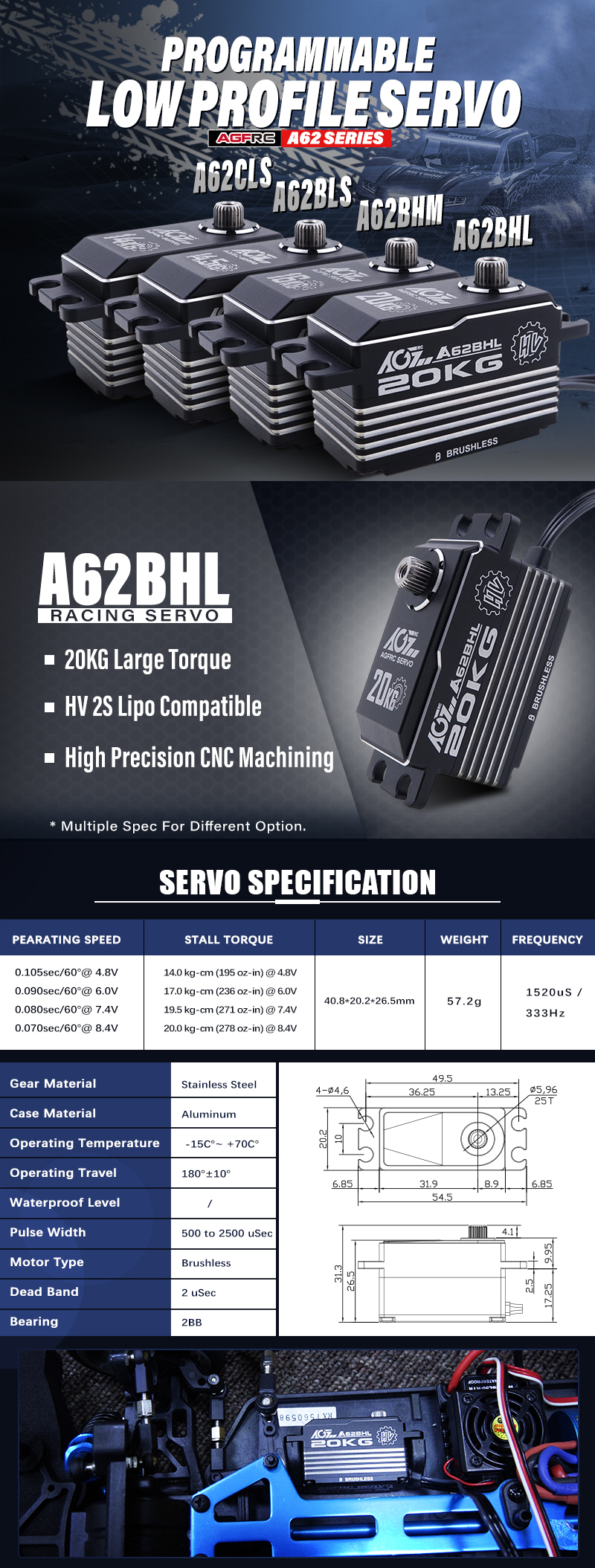

AGFrc 20KG Digital Low Profile Steering Servo High Speed Programmable Brushless RC Servo Full CNC Metal Gear for 1/10 RC Drift Racing Car Truck(A62BHL)

This is the AGFRC A62BHL upgrade high speed low profile digital servo. Combines leading edge technology with strength metal gears which ensure long life and durability. Super light-weight. Brushless motor provides high torque and speed, incredible efficiency, and low power consumption. The full CNC aluminum case design not only looks good but also allows for cooler and smoother operating temps. Our servo is totally green from materials to production, which is ideal for steering applications in 1/10 on road, rc drift car, racing car, touring car, truck, mechanical arm, etc.

Good idea for the remote control toy enthusiasts who want to DIY their RC toy and university professors and students who are interested in developing software for robot parts.


Feature

High performance Low Profile digital servo
High precision steel gears
High quality Brushless motor
Dual ball bearing

Full Aluminium Cooling Case

Water And Dust Resistance

Programmable Digital Circuit

Ideal for 1/10, 1/12  on road, truck & plane, etc.


Stall Torque

    • 14.0 kg-cm (195 oz-in) @ 4.8V
    • 17.0 kg-cm (236 oz-in) @ 6.0V
    • 19.5 kg-cm (271 oz-in) @ 7.4V
    • 20.0 kg-cm (278 oz-in) @ 8.4V

    Operating Speed

      • 0.105sec / 60° @ 4.8V
        • 0.090sec / 60° @ 6.0V
        • 0.080sec / 60° @ 7.4V
        • 0.070sec / 60° @ 8.4V


          • Package Included
          • Item 1:
          • 1 x AGFRC A62BHL Low Profile Servo
          • 1 x Accessory Kit

          • Item 2:
          • 1 x AGFRC A62BHL Low Profile Servo
          • 1 x AGF-SPV2 Servo Programmer
          • 1 x Accessory Kit

          • Item 3:
          • 1 x AGFRC A62BHL Low Profile Servo
          • 1 x AGF-SPV2 Servo Programmer
          • 1 x 25T Black Metal Servo Horn
          • 1 x Accessory Kit

          • Note: Item 1 does not include the AGF-SPV2 servo programmer.





        Brand:
        AGFRC
        Item Name:
        A62BHL
        Control System:
        Pulse width modulation control
        Refresh Rate:
        333Hz
        Neutral Position:
        1520uS
        Signal Mode:
        Digital
        Dead band:
        2 uSec
        Operating Voltage:
        4.8V ~ 8.4V
        Operating Temperature:
        -15C°~ +70C°
        Bearing:
        Dual Ball Bearing
        Operating Travel:
        180°±10°
        Signal Range:
        500 to 2500 uSec
        Angle Sensor:
        Potentiometer
        Mechanical Angle:
        220°
        Motor Type:
        Brushless
        Motor Drive:
        FET Drive
        Horn Gear Spline:
        25T-φ5.92mm
        Programmable:
        Yes
        Bearing Material:
        Metal
        Gear Material:
        Strength Steel+Titannium
        Case Material:
        AL6061T6
        Certification:
        CE,FCC,RoHs
        Product Size:
        40.8*20.2*26.5mm (1.61*0.80*1.04 inch)
        Wire Guage:
        JR 180mm /22AWG
        Net Weight:
        62g(2.19oz)
