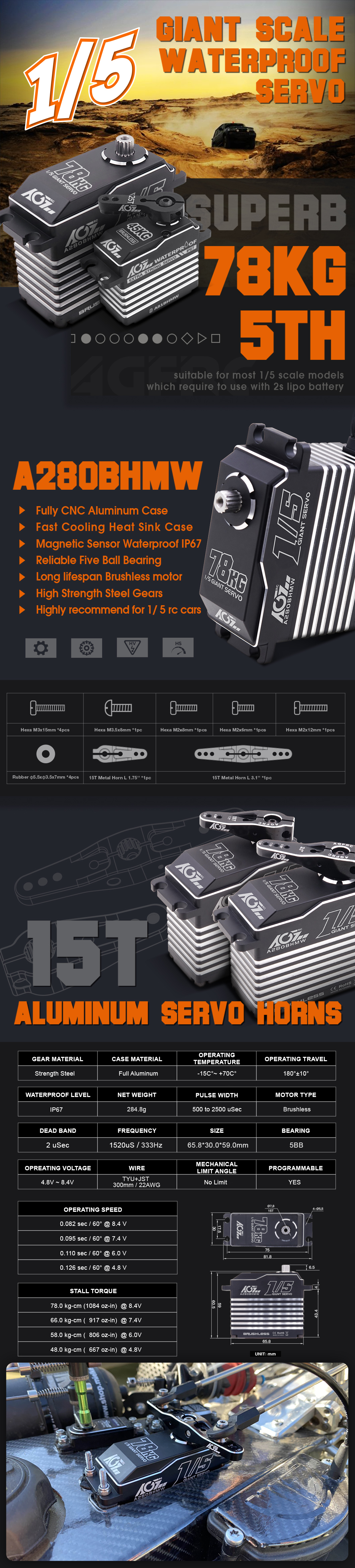

78KG HV High Speed Brushless Waterproof 1/5 Servo (A280BHMW)
A280BHMW Aluminum Case Steel Gears Programmable HV 78KG Scale Servo
A280BHMW is a 2s version 5th scale servo. It combines long-life brushless motor with monster torque design takes the driving experience of large model enthusiasts to a new level. It is ideal for 1/5 Monster Truck, Buggy, Crawler, Large Airplanes, Robot Arm, etc. Whether you are traversing the jungle or climbing over sand dunes, strengthening gear structure improve the crashworthiness and life of the servo.
When you cross the mountains and pass the charming stream, fully magnetic waterproof IP67 grade can let your model play in humid environment or rainy day. This A280BHMW is suitable for most 1/5 scale models, which require to use with 2s lipo battery. Of course! In this era of rapid development, free choice is also a kind of happiness!
So how could we do without the programmable function? It is allow to be programmable via USB Programmer AGF-SP V3 now. In the near futuret it is available to be bluetooth APP programmable. Please don't hesitate to add a reliable new partner to your model!
Main Feature
- Heat Sink Aluminum Case
- Extremely Strong Steel Gears
- 2S Lipo High Voltage Compatible
- Magnetic Sensor Waterproof IP67
- Available for Parameter Programmable (Please use with AGFRC USB Programmer AGF-SP V3).
- Bluetooth APP Programmable (Still not available now)
Specification
- Model Name: A280BHMW
- Operating Voltage: 4.8-8.4V
- Operating speed: 0.126 sec/60° @ 4.8V
- Operating speed: 0.110 sec/60° @ 6.0V
- Operating speed: 0.095 sec/60° @ 7.4V
- Operating speed: 0.082 sec/60° @ 8.4V
- Stall Torque: 48.0 kg-cm (667 oz-in) @ 4.8V
- Stall Torque: 58.0 kg-cm (806 oz-in) @ 6.0V
- Stall Torque: 66.0 kg-cm (917 oz-in) @ 7.4V
- Stall Torque: 78.0 kg-cm (1084 oz-in) @ 8.4V
- Gear: Steel
- Motor: Brushless
- Size: 65.8*30.0*59.0mm(2.59 x 1.18 x 2.32 in)
- Weight: 284.8g
- Connector Wire: TYU 300mm / 22AWG
Download Spec Datasheet
Please click HERE to download the spec datasheet for the A280BHMW servo.
- Brand:
- AGFRC
- Iterm Name:
- A280BHMW
- Signal Mode:
- Digital
- Control System:
- PWM, 1520uS/333hz
- Dead band:
- 2 uSec
- Operating Voltage:
- 4.8V ~ 8.4V
- Operating Travel:
- 180°±10°
- Signal Range:
- 500 to 2500 uSec
- Angle Sensor:
- Magnet Sensor
- Temperature:
- -15C°~ +70C°
- Mechanical Angle:
- No Limit
- Motor Type:
- Brushless Motor
- Motor Drive:
- FET Drive
- Horn Gear Spline:
- 15T-φ7.8mm
- Programmable:
- Yes
- Waterproof Level:
- IP67
- Bearing:
- Five Ball Bearings
- Bearing Material:
- Metal
- Gear Material:
- Strength Steel
- Case Material:
- AL6061T6
- Certification:
- CE,FCC,RoHs
- Wire Guage:
- TYU 300mm / 22AWG
- Net Weight:
- 283g(9.98oz)
- Product Size:
- 65.8*30.0*59.0mm(2.59*1.18*2.32in)
