AGFRC A200BHMW Waterproof IP67 Brushless Digital Giant Servo for RC Models

Now AGFRC releases the 1/6th servo, with CNC machining of the aluminum case and structure. Sturdy ball bearings and gear chain.

If you would like to use this 6th scale servo for a 5th scale model, you can order MT200, then you can have a economic 1/5 scale servo.

Main Features

• 4 Metal Ball Bearings

• High Smooth Steel Gears

• All Aluminium Heat Sink Case

• High Efficiency Brushless Motor

• Magnetic Sensor Waterproof IP67

• 15T Metal Servo Horns Included

• Suitable for most 1/5th, 1/6th RC Vehicles cars, large scale Aircraft, robots etc.

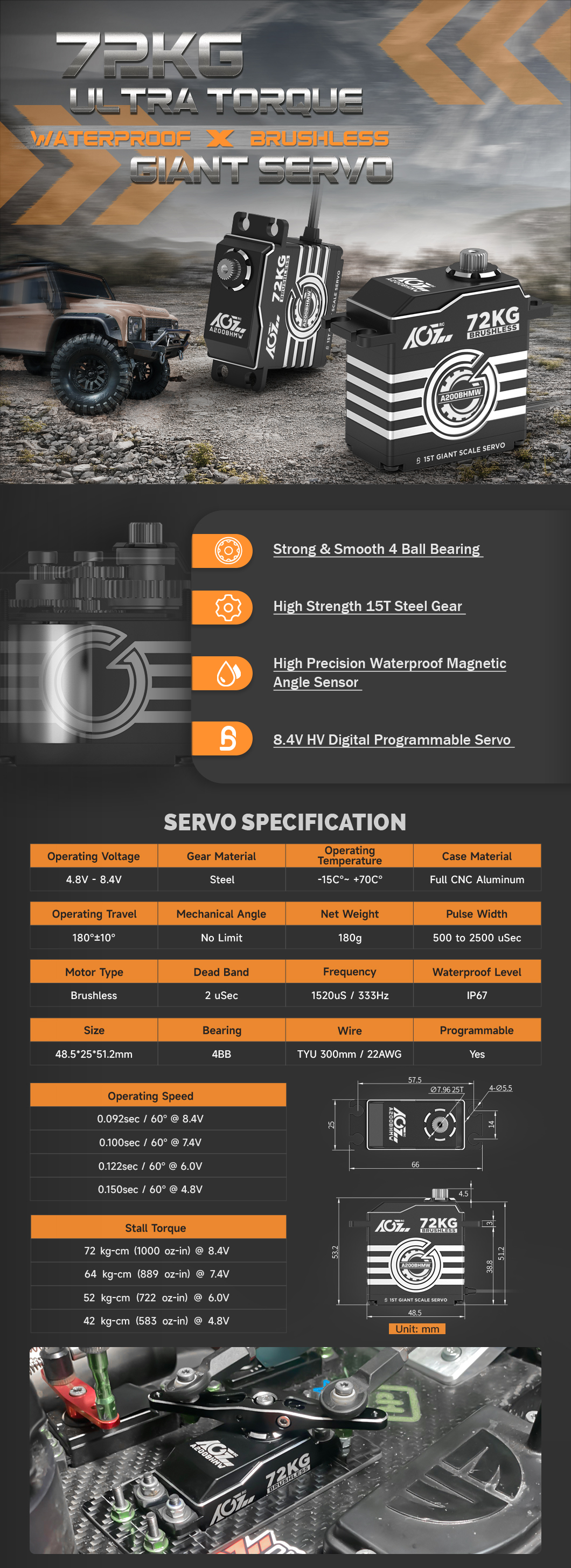

Specifications

Operating Voltage

4.8V - 8.4V

Temperature Range

-15°C - +70°C

Refresh Rate

1520 µS / 333Hz

Travel Angle

180 ± 10°

Programmable

Yes

Case Material

Aluminum

Gear Material

Strength Steel

Position Sensor

Magnet Angle Sensor

Motor Type

Brushless

Bearing

4BB

Direction

CCW

Horn Gear Spline

15T-ɸ7.8 mm

Wire

TYU 300mm / 22AWG

Wire Color

Dimensions

48.5*25*51.2mm

Weight

180g

Operating Speed

0.150 sec/60° @4.8V

0.122 sec/60° @6.0V

0.100 sec/60° @7.4V

0.092 sec/60° @8.4V

Stall Torque

42 kg·cm (583 oz·in) @4.8V

52 kg·cm (722 oz·in) @6.0V

64 kg·cm (889 oz·in) @7.4V

72 kg·cm (1000 oz·in) @8.4V

Package Includes

Servo

1 x A200BHMW Servo

Metal Horn

2 x 15T Metal Horn

Screw

4 x Mounting Screw

4 x Servo Horn Screw

Other Accessories

4 x Rubber Pad

4 x Copper Sleeve

Download

• Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.

• If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.

Download

Spec Datasheet

AGFRC A200BHMW Servo
