AGFRC
B24CLM 0.085Sec 6Kg Titanium Gear High Speed Coreless Mini Servo
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.

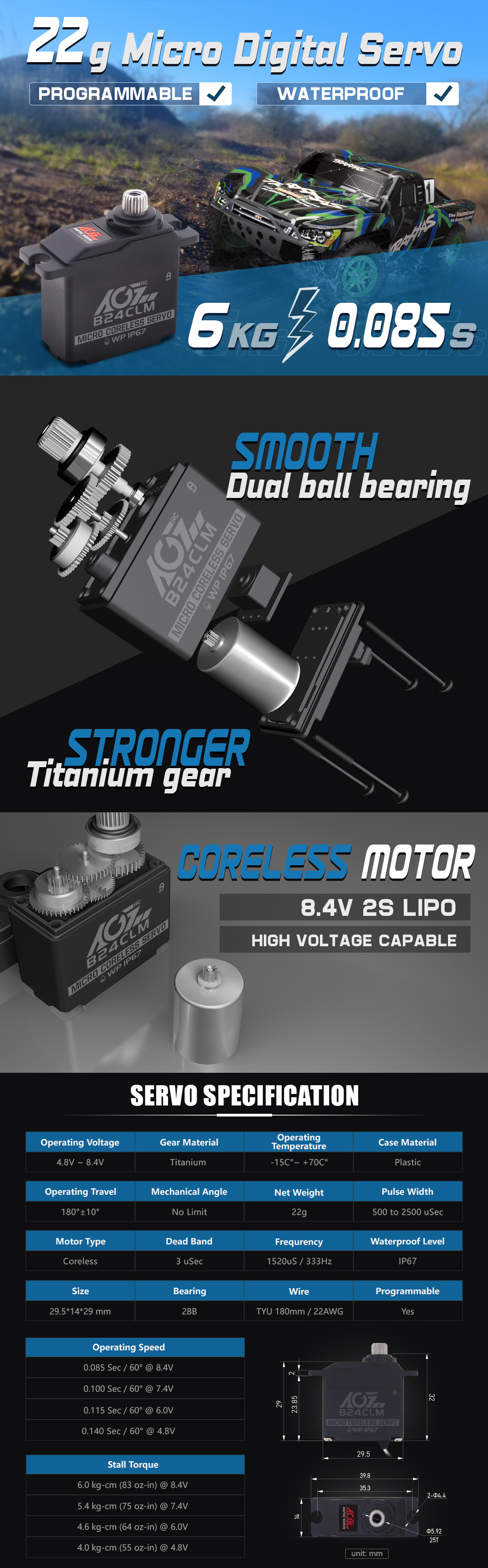

AGFRC B24CLM 0.085Sec 6Kg Torque Titanium Gear High Speed Coreless Mini Servo
➤ AGFRC released the B24CLM IP67 waterproof mini servo. With the support of this waterproof function, the rc model can run in different scenarios such as wet, muddy, drizzle, stream, snow, etc., breaking the limitations of ground operation.
MAIN FEATURES
➤ High Performance Digital Mini Servo.
➤ High Precision Titanium Gears.
➤ Support Programmable Parameter .
➤ Small Size And Light Weight Save More Space.
➤ Ideal for 1/16 Scale RC Car E-Revo, Slash 4WD, Robot, Boat, Plane, Helicopter, etc.
SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Plastic
Gear Material
Titanium
Sensor Type
Potentiometer
Motor Type
Coreless
Bearing
3BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
JR 180mm / 26AWG
Wire Color
Dimensions
29*14*29mm
Weight
22g
Operating Speed
0.140 sec/60° @4.8V
0.115 sec/60° @6.0V
0.100 sec/60° @7.4V
0.085 sec/60° @8.4V
Stall Torque
4.0 kg·cm (55 oz·in) @4.8V
4.6 kg·cm (64 oz·in) @6.0V
5.4 kg·cm (75 oz·in) @7.4V
6.0 kg·cm (83 oz·in) @8.4V
PACKAGE INCLUDES
➤ 1 x B24CLM Servo
➤ 4 x 25T Plastic Horn
➤ 2 x M2*12*φ5mm Screw
➤ 1 x M3*6mm Screw
➤ 2 x φ3*φ4.6*5 Rubber Pad
➤ 2 x φ5*φ3*5mm Copper Sleeve
➤ 1 x AGFRC Logo Sticker
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
