A35BHM 0.065sec Fast Speed HV Full CNC Case Programmable Brushless Digital Servo For 1/10 1/12 RC Car
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.
AGFRC 0.065sec High Speed 8.5Kg Torque Programmable Brushless Digital Servo (A35BHM)
➤ AGFRC A35BHM is a programmable digital servo. Fully CNC design to maintain good heat dissipation function away from the servo heat trouble. With the help of a brushless motor, it can reach high speed and high torque.
MAIN FEATURES
➤ Middle Compact Size Design.
➤ High Precision Titanium Gear.
➤ Fully CNC aluminum Case.
➤ Long Lifespan Brushless Motor.
➤ Programmable & Easy to Program.
➤ Ideal for 1/12 Scale RC Cars, Large Cars/ trucks, 500-600 Size Helicopter, 3D helicopters, Jet Aircraft, Airplanes Glider, Robot etc.

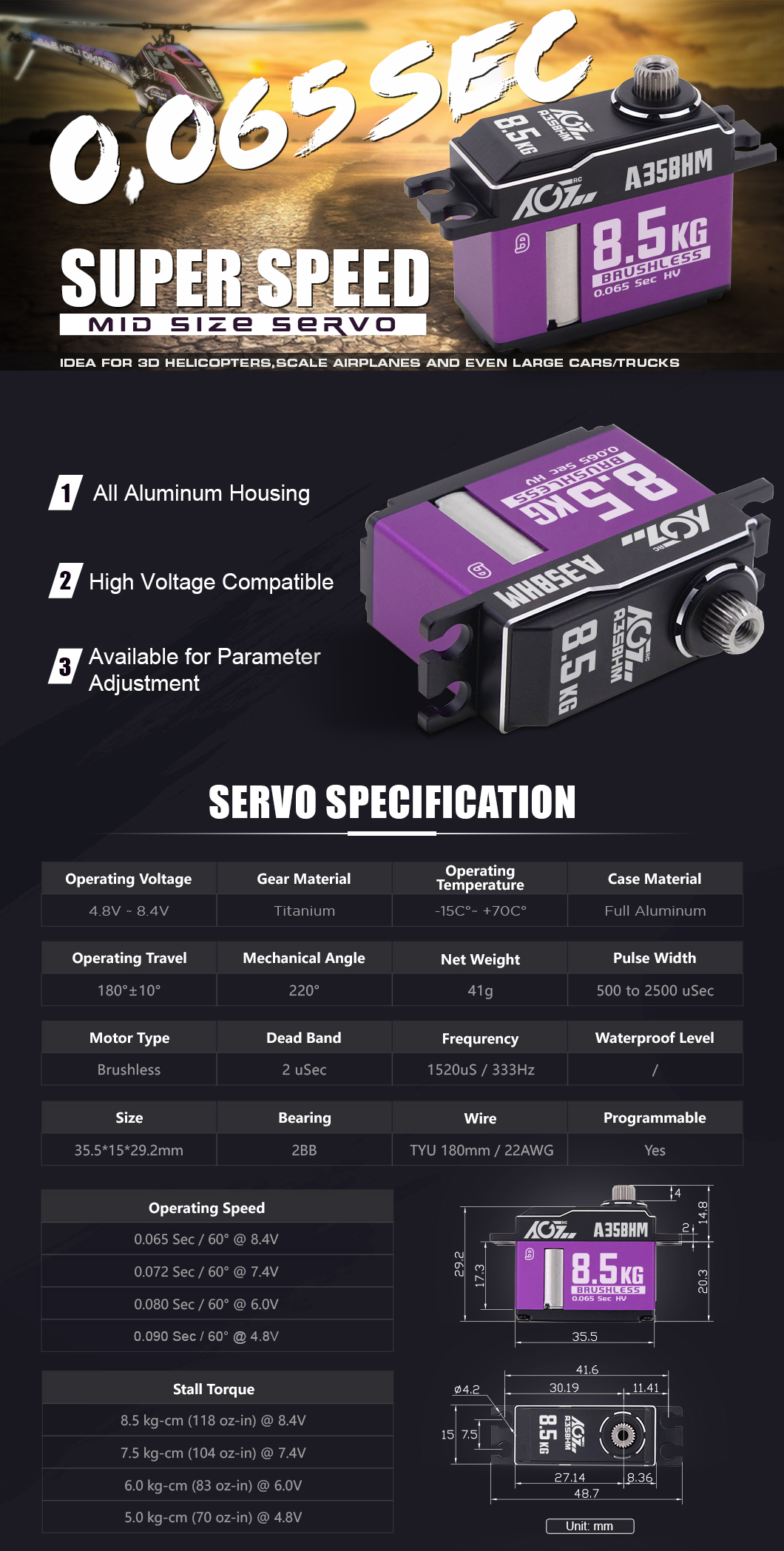

SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Titanium
Sensor Type
Potentiometer
Motor Type
Brushless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
TYU 180mm / 22AWG
Wire Color
Dimensions
35.5*15*29.2mm
Weight
41g
Operating Speed
0.090 sec/60° @4.8V
0.080 sec/60° @6.0V
0.072 sec/60° @7.4V
0.065 sec/60° @8.4V
Stall Torque
5.0 kg·cm (70 oz·in) @4.8V
6.0 kg·cm (83 oz·in) @6.0V
7.5 kg·cm (104 oz·in) @7.4V
8.5 kg·cm (118 oz·in) @8.4V
PACKAGE INCLUDES
➤ 1 x A35BHM Servo
➤ 4 x 25T Plastic Horn
➤ 4 x M2*12*φ5mm Screw
➤ 1 x M3*6mm*φ5.6mm Screw
➤ 4 x Rubber Pad
➤ 4 x Copper Sleeve
➤ 1 x AGFRC Logo Sticker
