2

AGFRC

Magnetic Waterproof 40KG 0.10Sec High Torque Waterproof Programmable Brushless Digital Servo (A73BHLW V2)

stars, based on 14 reviews
207items available
Contact Us

AGFRC Programmable 40KG 0.100Sec High Torque Magnetic Waterproof IP67  Digital Brushless Steering Servo for 1/10 Scale RC Car Boat, Control Angel 180°(A73BHLW)


Affordable and practical programmable digital circuit IP67 waterproof standard servo A73BHLW V2 version is newly upgraded. It is more durable to be used in 10th scale rc models with harsh environments such as snow, rain, wet jungle, seaside, sand dunes, and mud, etc

The A73BHLW V2 version is totally upgrade from motor to gear chain. Enhanced high-efficiency and strong brushless motor, upgraded to the same powerful motor as A81 series motor servo. Higher-precision and strong reinforced steel gears are used to effectively protect the internal structure of the servo. Thickened and strengthened to 2.0mm, which can resist the impact when the model is running, and the anti-collision performance is improved.

With these supports, the servos run more reliably and smoothly. In addition, The price of the V2 version is still very affordable, it can not only meet the requirements and applications of most enthusiasts, but also a budget servo with high cost performance.

Good idea for the remote control toy enthusiasts who want to DIY their RC models, also good choice for university professors and students who are interested in developing software for robot parts. It’s also a good choice for some of the industrial device applications.


Feature
High Performance Standard Digital Servo
Fast Cooling Aluminum Case
Reinforced Steel Gear And Pin Shaft
High Strength Dual Ball Bearings
Fully Waterproof IP67
High Precision Magnetic Angular Position Sensor
High Quality & High Efficiency & Longer Lifetime Brusheless Motor
Ideal for 1/10 Rock Crawler, Buggy, Truck, Boat, Airplane, Helicopter and Engine etc.

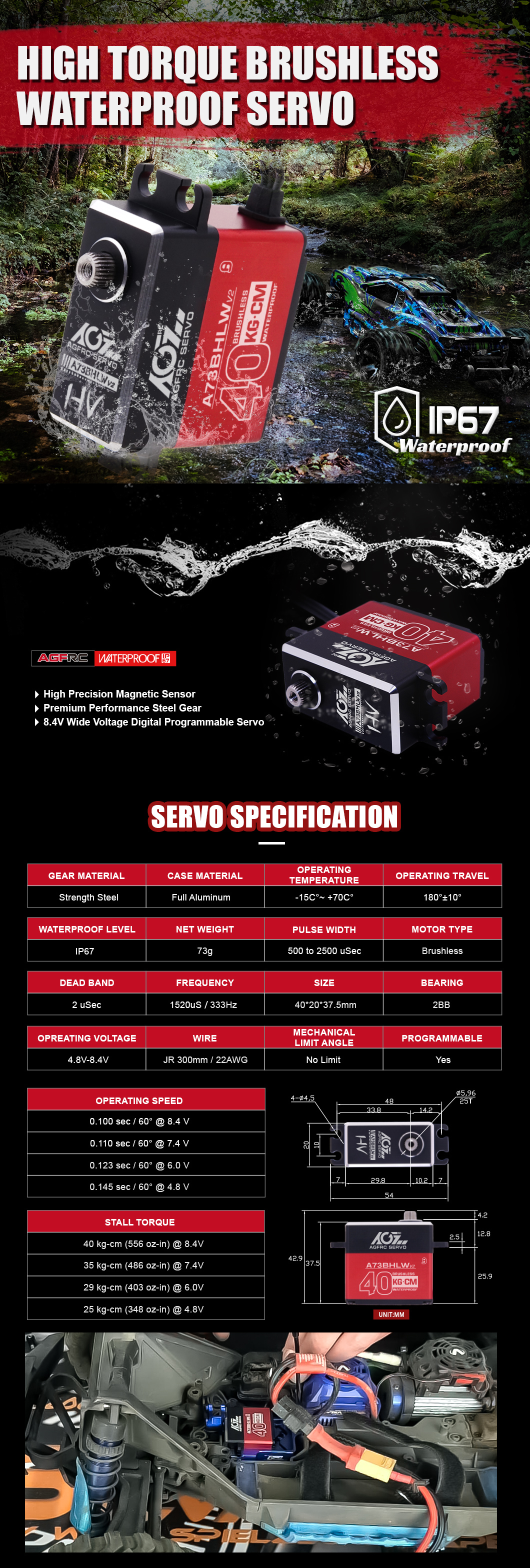

Specification
Model Name: A73BHLW V2
Operating Voltage: 4.8-8.4V
Operating speed: 0.123sec/60° @ 6.0V
Operating speed: 0.110sec/60° @ 7.4V
Operating speed: 0.100sec/60° @ 8.4V
Stall Torque: 29 kg-cm (403oz-in) @ 6.0V
Stall Torque: 35 kg-cm (486 oz-in) @ 7.4V
Stall Torque: 40 kg-cm (556 oz-in) @ 8.4V
Gear: Steel
Motor: Brushless
Size: 40*20*37.5mm (1.57 x 0.78 x 1.47 in)
Weight: 73.5g
Connector Wire: JR 300 mm /22AWG



Brand:
AGFRC
Iterm Name:
A73BHLW
Signal Mode:
Digital
Control System:
Pulse Width Modulation
Refresh Rate:
333Hz
Neutral Position:
1520uS
Dead band:
2 uSec
Operating Voltage:
4.8V ~ 8.4V
Operating Temperature:
-15C°~ +70C°
Operating Travel:
180°±10°
Signal Range:
500 to 2500 uSec
Angle Sensor:
Magnet Angle Sensor
Mechanical Angle:
No limit
Motor Type:
Brushless Motor
Motor Drive:
FET Drive
Horn Gear Spline:
25T-φ5.92mm
Waterproof Level:
IP67
Programmable:
Yes
Bearing:
Double Ball Bearings
Bearing Material :
Metal
Gear Material:
Strength Steel
Case Material:
Aluminium AL6061T6
Certification:
CE,FCC,RoHs
Wire Guage:
JR 300mm / 22AWG
Net Weight:
73g(2.57oz)
Product Size:
40*20*37.5mm (1.57x 0.78 x1.47 in)
