Reliable Aluminum Case Digital 45KG Torque Brushless Programmable Steel Gear STD Servo (A81BHM)

stars, based on 2 reviews

$99.99 piece

Type

Product Tag:

Standard ServoProgrammable Servo1/10 Scales Servo1/8 Scales ServoHigh Torque Servo

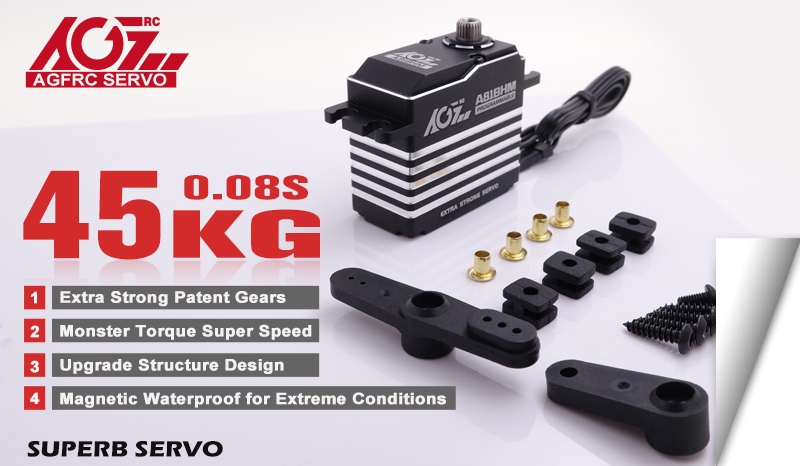

AGFRC 45kg High Torque 0.085sec High Speed Programmable Digital Brushless Servo for 1/10 1/8 RC Crawler Buggy Truck (A81BHM)

AGFrc A81BHM Hot-Selling Digital Standard Servo, with fully CNC aluminium case, programmable function and . The strengthen structure of steel gears, 2MM PIN shaft, and brushless motor to make servo can smoothly output 45kg-cm high torque and 0.085sec fast speed at 8.4V. 2S Lipo wide voltage make it suitable for more application, such as 1/10 & 1/8 scale buggies, crawlers and trucks cars. If you are need the waterproof version for other applications, please go for the A81BHMW Servo.

Feature

Ultra Light Unique Design

High Performance Standard Digital Servo

Fast Cooling Heat Sink Case

Strengthen High Chrome Steel Shaft

Extra Strong Patent Steel Gears

Super Strong Three Ball Bearings

High Efficiency Bruhless Motor

Programmable Digital Circuit

Full CNC Aluminium Hulls and Structure

Ideal for 1/10, 1/8 On Road, Off road, Truck, Airplane, Helicopter and Engine etc

Specification

Model Name: A81BHM

Operating Voltage: 4.8-8.4V

Operating speed: 0.115sec/60° @ 6.0V

Operating speed: 0.100sec/60° @ 7.4V

Operating speed: 0.085sec/60° @ 8.4V

Stall Torque: 34 kg-cm (473 oz-in) @ 6.0V

Stall Torque: 39 kg-cm (542 oz-in) @ 7.4V

Stall Torque: 45 kg-cm (625 oz-in) @ 8.4V

Gear: Steel

Motor: BLS

Size: 40*20*37.2mm (1.57 x 0.78 x 1.46 in)

Weight: 83g

Connector Wire: TYU 300 mm

Brand:: AGFRC

Iterm Name:: A81BHM

Signal Mode:: Digital

Control System:: Pulse width modulation control

Refresh Rate:: 333Hz

Neutral Position:: 1520uS

Dead band:: 2 uSec

Operating Voltage:: 4.8V~8.4V

Operating Travel:: 180°±10°

Mechanical Angle:: 220°

Signal Range:: 500 to 2500 uSec

Angle Sensor:: Potentiometer

Temperature:: -15C°~ +70C°

Motor Type:: Brushless

Motor Drive:: FET Drive

Horn Gear Spline:: 25T-φ5.92mm

Programmable:: Yes

Bearing:: Three Ball Bearings

Bearing Material:: Metal

Gear Material:: Strength Steel

Case Material:: AL6061T6

Certification:: CE,FCC,RoHs

Wire Guage:: JR 300mm / 22AWG

Net Weight:: 83g(2.93oz)

Product Size:: 40*20*37.2mm(1.57*0.79*1.46in)

Recent Reviews ( 2 )

Mongrel

Friday, 01 January 2021

Servo and arm fits perfect into Traxxas TRX4 rock crawler. Look up in the forums on how to switch servo direction if needed. Plenty strong enough for my stock TRX4.
