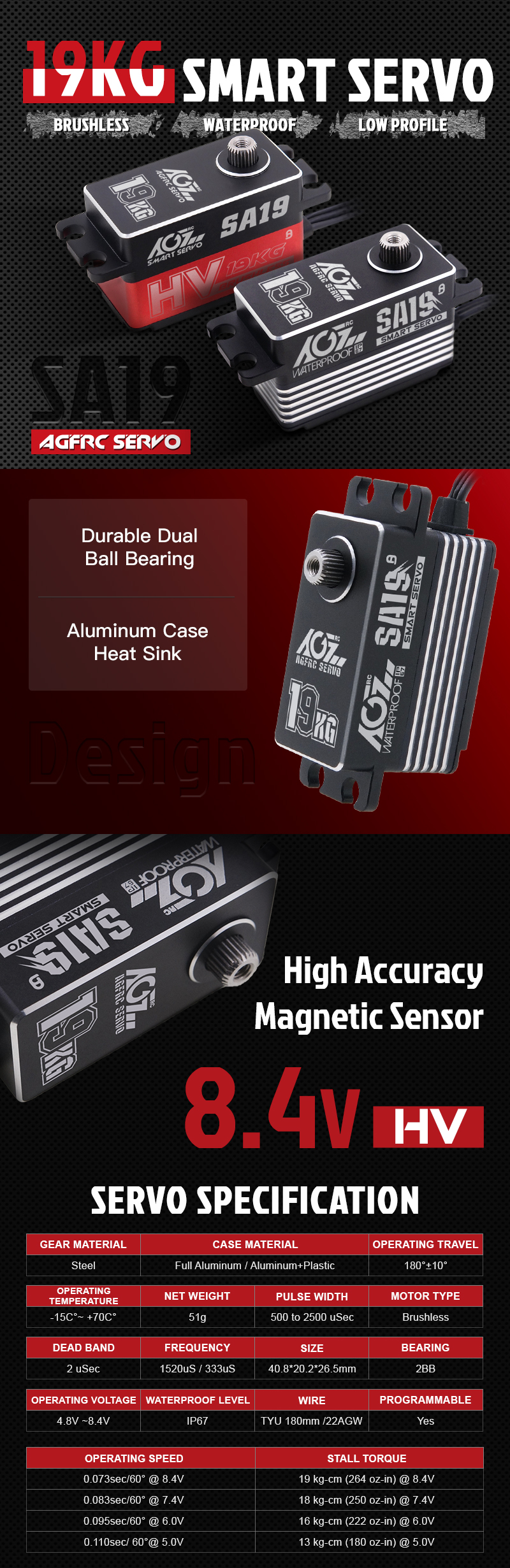

AGFRC 19kg 0.073Sec High Speed Programmable Low Profile Digtal Brushless Smart RC Winch Servo (SA19)

AGFRC 2S low profile smart servo got a new member SA19, which allowed to change to the firmware for regular and winch servo usage. 0.073sec fast response and 19kg incredible torque make it a perfect match for those who demand the very best for your 1/10 touring car or off road application. The heat sink case design not only looks good but also allows for cooler and smoother operating temps. Take one to impress your friends.


Feature

  • 2S Low Profile Smart Servo

    Aluminium CNC Case

    High reliability Steel Gear

    Programmable Digital Circuit

    More Durable 2 Ball Bearings

    Good Stability Brushless Motor

    Magnetic Sensor Waterproof IP67

    Can be used as a Winch or Regular Servo

    Ideal for 1/10, 1/12 On Road, Off Road, Touring, Drifting, Airplanes, Boats, Robot etc.


Stall Torque

  • 13 kg-cm (180 oz-in) 5.0V
  • 16 kg-cm (222 oz-in) @ 6.0V
  • 18 kg-cm (250 oz-in) @ 7.4V
  • 19 kg-cm (264 oz-in) @ 8.4V

Operating Speed

  • 0.110sec/60° 5.0V
  • 0.095sec/60° @ 6.0V
  • 0.083sec/60° @ 7.4V
  • 0.073sec/60° @ 8.4V


Package Included

  • Item 1:
  • 1 x SA19 Low Profile Programmable Smart Servo
  • 1 x Accessory Kit

  • Item 2:
  • 1 x SA19 Low Profile Programmable Smart Servo
  • 1 x Black 25T Metal Servo Horn
  • 1 x Accessory Kit

  • Item 3:
  • 1 x SA18 Low Profile Programmable Smart Servo
  • 1 x AGF-SPV3 USB Servo Promgrammer
  • 1 x Black 25T Metal Servo Horn
  • 1 x Accessory Kit

  • Item 4:
  • 1 x SA18 Low Profile Programmable Smart Servo
  • 1 x AGF-SPV3 USB Servo Promgrammer
  • 1 x Black 25T Metal Servo Horn
  • 1 x Winch
  • 1 x Accessory Kit


  • Note: 1. Item 1 and 2 does not include the AGF-SPV3 servo programmer.

  •           2. This product price does not include EU VAT.



Brand:
AGFRC
Iterm Name:
SA19
Color:
Black,Red
Signal Mode:
Digital
Control System:
Pulse Width Modulation Control (PWM)
Refresh Rate:
333Hz
Neutral Position:
1520uS
Dead band:
2 uSec
Operating Voltage:
4.8V ~ 8.4V
Operating Travel:
Regular: 180°±10°,Winch: Continuous 360°
Signal Range:
500 to 2500 uSec
Angle Sensor:
Magnet Angle Sensor
Temperature:
-15C°~ +70C°
Mechanical Angle:
No Limit
Motor Type:
Brushless
Motor Drive:
FET Drive
Horn Gear Spline:
25T-φ5.92mm
Programmable:
Yes
Bearing:
Double Ball Bearing
Bearing Material:
Metal
Gear Material:
Strength Steel
Case Material:
AL6061T6
Certification:
CE,FCC,RoHs
Wire Guage:
TYU 180mm /22AWG
Net Weight:
51g(1.80oz)
Product Size:
40.8*20.2*26.5mm(1.61*0.80*1.04in)
