AGFRC
B44BLS V2 HV 14.5KG 0.062Sec High Speed Low Profile High Speed Brushless Digital Servo
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.
Product Tag:
Low Profile ServoAGFRC 15.5KG 0.060Sec Low Profile High Speed Titanium Gear Brushless Servo For RC Touring Drift Car (B44BLS V2)
➤ AGFRC's new product B44BLS V2 15.5KG torque low-profile programmable servos are designed with plastic and CNC case, and their good airtightness can prevent dust and splashes.
➤ B44BLS V2 has 8.4V high voltage and 0.060Sec high speed are very suitable for drift car competition, Touring car, on-road, Pan car, etc. If you need parameter programming, you can use it with the AGF-SPV2 or AGF-SPV3 programmer.
MAIN FEATURES
➤ High Performance Digital Servo.
➤ High Precision Titanium Gears.
➤ Medium Aluminum Case.
➤ Dual Ball Bearings.
➤ Ideal for Touring, Drift Car, Boat, Aircraft, Robot, etc.

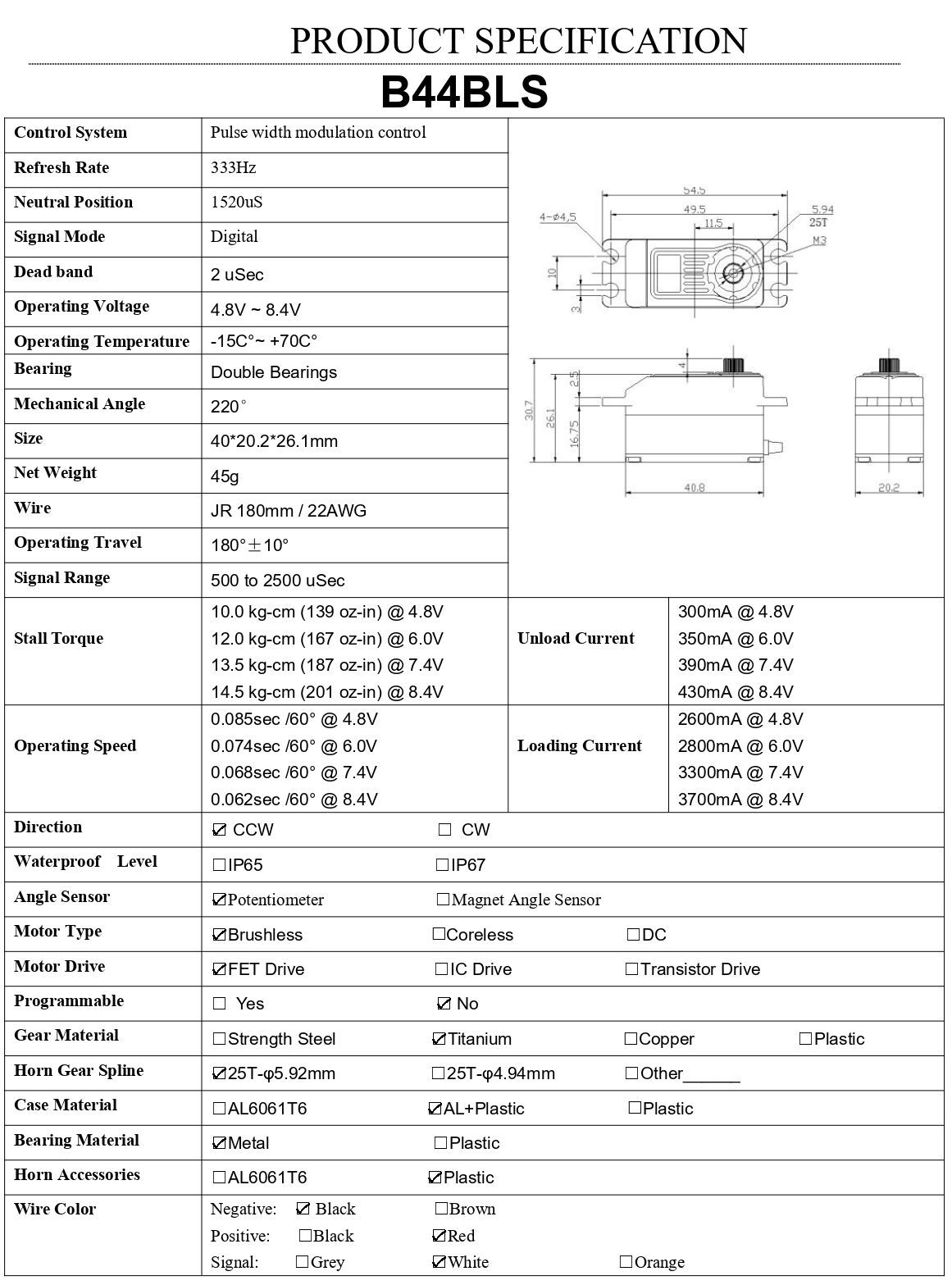

SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum + Plastic
Gear Material
Titanium
Sensor Type
Potentiometer
Motor Type
Brushless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
TYU 200mm / 22AWG
Wire Color
Dimensions
40.8*20.2*26.5mm
Weight
49g
Operating Speed
0.080 sec/60° @4.8V
0.070 sec/60° @6.0V
0.065 sec/60° @7.4V
0.060 sec/60° @8.4V
Stall Torque
10.0 kg·cm (139 oz·in) @4.8V
13.0 kg·cm (180 oz·in) @6.0V
14.0 kg·cm (194 oz·in) @7.4V
15.5 kg·cm (215 oz·in) @8.4V
PACKAGE INCLUDES
➤ 1 x B44BLS V2 Servo
➤ 2 x 25T Plastic Horns
➤ 4 x Mounting Screws
➤ 1 x Horn Screw
➤ 4 x Rubber Pads
➤ 4 x Copper Sleeves
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
