AGFrc RC Servo
0.055Sec High Speed HV Programmable High Torque 20KG Digital Brushless Servo (B53BHP V2)
Estimated Standard shipping time is about 4 ~ 8 days
For the inventory goods, the package will be dispatched within 3 working days

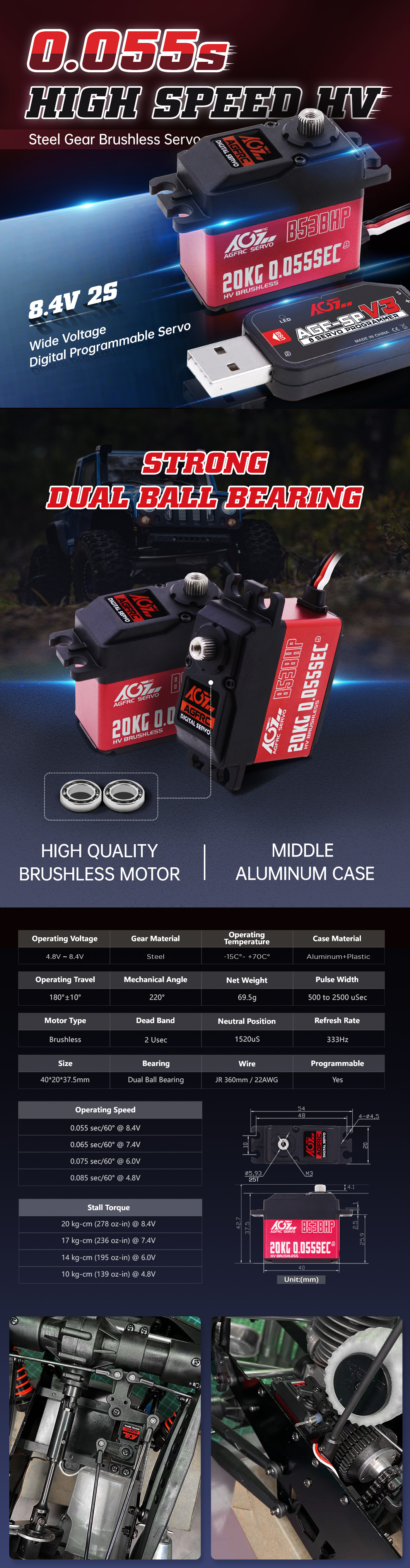

AGFRC Upgraded 20kg HV 0.055sec High Speed Programmable Digital Brushless Servo for RC Car(B53BHP V2)
AGFRC B53BHP V2 is upgraded to the new version. The new version adopts the CNC aluminium middle case design, new laser engraving logo, and support the programmable parameter function. This upgrade makes servo more powerful and efficient, and can fit more needs.
Main Feature
- High Performance Digital Servo
- High Precision Steel Gear
- High Quality Brushless Motor
- High Strength Ball Bearing
- Aluminium Middle Case
- Available for Parameter Programmable
- Ideal for Car, Airplane, Helicopter and Engine etc
Specificaition
- Model Name: B53BHP V2
- Operating Voltage: 4.8-8.4 V
- Operating speed: 0.085sec/ 60° @ 4.8V
- Operating speed: 0.075sec/60° @ 6.0V
- Operating speed: 0.055sec/60° @ 8.4V
- Stall Torque: 10 kg-cm (139 oz-in) @ 4.8V
- Stall Torque: 14 kg-cm (195 oz-in) @ 6.0V
- Stall Torque: 20 kg-cm (278 oz-in) @ 8.4V
- Gear: Steel
- Motor: Brushless
- Size: 40*20*37.8mm
- Weight: 69.5g
- Connector Wire: JR 300mm / 22AWG
Download Spec Datasheet
Please click HERE to download the spec datasheet for the B53BHP V2 servo.
- Brand:
- AGFRC
- Iterm Name:
- B53BHP V2
- Signal Mode:
- Digital
- Control System:
- Pulse Width Modulation
- Refresh Rate:
- 333Hz
- Neutral Position:
- 1520uS
- Dead band:
- 2 uSec
- Operating Voltage:
- 4.8V ~ 8.4V
- Operating Travel:
- 180°±10°
- Mechanical Angle:
- 220°
- Signal Range:
- 500 to 2500 uSec
- Angle Sensor:
- Potentiometer
- Temperature:
- -15C°~ +70C°
- Motor Type:
- Brushless
- Motor Drive:
- FET Drive
- Horn Gear Spline:
- 25T-φ5.92mm
- Programmable:
- Yes
- Bearing:
- Double Bearings
- Bearing Material:
- Metal
- Gear Material:
- Strength Steel
- Case Material:
- Aluminum+Plastic
- Certification:
- CE,FCC,RoHs
- Product Size:
- 40*20*37.5mm(1.57*0.79*1.48 in)
- Wire Guage:
- JR 300mm / 22AWG
- Net Weight:
- 69.5g(2.45 oz)
