A86BHMW 55KG High Torque Waterproof Brushless Programmable Servo

4 / 5

A86BHMW 55KG High Torque Waterproof Brushless Programmable Servo

With sufficient stock, packages will be shipped within 2 working days.

Insufficient stock, we will inform you as soon as the lead time is confirmed.

The package is expected to be delivered within 4 - 9 days after shipment.

Product Tag:

Standard ServoProgrammable Servo1/10 Scales Servo1/8 Scales ServoIP67 Waterproof ServoHigh Torque Servo

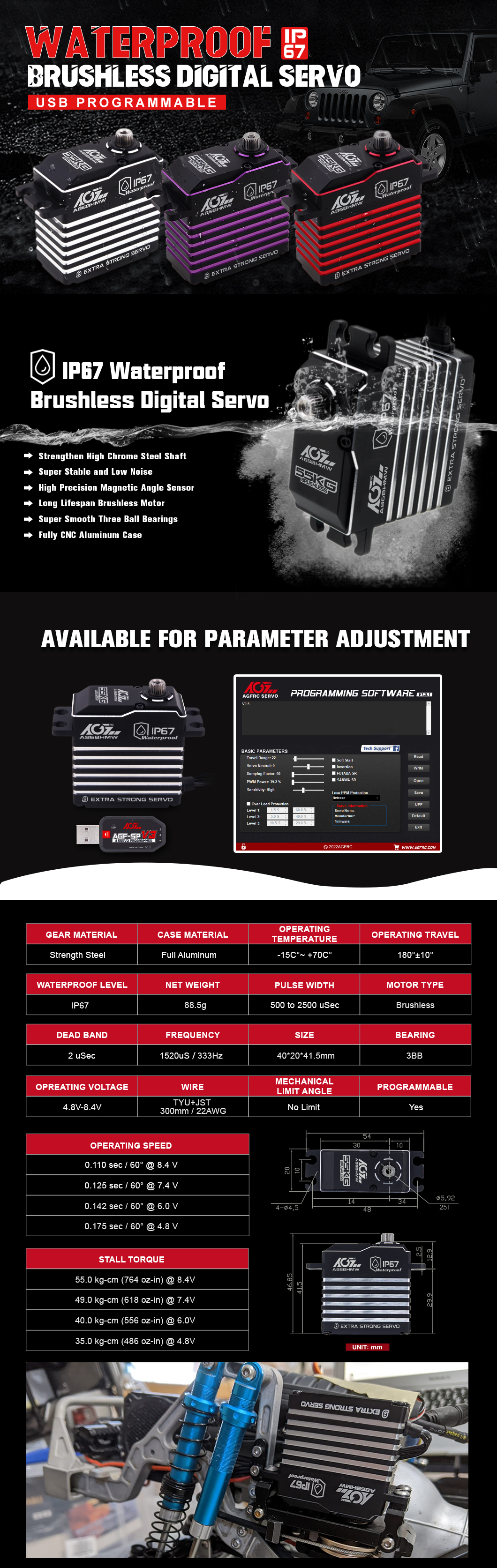

AGFRC Standard Servo 55KG IP67 Waterproof Steel Gears Programmable Brushless High Torque Digital Servo(A86BHMW)

➤ This is the AGFRC A86BHMW High Torque Waterproof Programmable Metal Gear Digital RC Servo. Combines leading-edge technology with patent metal gears. Super light-weight, with a net weight of only 86 grams. Brushless motor provides high torque and speed, incredible efficiency, and a high precision magnetic sensor for low power consumption. Metal gears and three ball bearings ensure long life and durability. The full CNC aluminum case design not only looks good but also allows for cooler and smoother operating temperatures.

➤ A86BHMW steering servo adopts an IP67 level waterproof design, which can work within 1 meter of water. Our servos are totally green from materials to production. These servos are Ideal for steering applications in 1/8 scale buggies, monster trucks, and rock crawlers.

MAIN FEATURES

➤ Fully CNC Aluminium Case.

➤ High Precision Magnetic Angle Sensor.

➤ Waterproof Up to IP67 Grade.

➤ Extremely Strong Patent Steel Gears.

➤ Long Lifespan Brushless Motor.

➤ Programmable Digital Circuit.

➤ Ideal for on-road, off-road, Truck, Boat, Airplane, Helicopter etc.

SPECIFICATIONS

Operating Voltage

4.8V - 8.4V

Temperature Range

-15°C - +70°C

Refresh Rate

1520 µS / 333Hz

Travel Angle

180 ± 10°

Programmable

Yes

Case Material

Aluminum

Gear Material

Strength Steel

Sensor Type

Magnetic Sensor

Motor Type

Brushless

Bearing

3BB

Direction

CCW

Horn Gear Spline

25T-ɸ5.92 mm

Wire

TYU 300mm / 22AWG

Wire Color

Dimensions

40*20*41.5mm

Weight

88.5g

Operating Speed

0.175 sec/60° @4.8V

0.142 sec/60° @6.0V

0.125 sec/60° @7.4V

0.110 sec/60° @8.4V

Stall Torque

35 kg·cm (486 oz·in) @4.8V

40 kg·cm (556 oz·in) @6.0V

49 kg·cm (681 oz·in) @7.4V

55 kg·cm (764 oz·in) @8.4V

PACKAGE INCLUDES

➤ 1 x A86BHMW Servo

➤ 1 x 25T Metal Horn

➤ 2 x 25T Plastic Horns

➤ 4 x Mounting Screws

➤ 3 x Horn Screws

➤ 4 x Rubber Pads

➤ 4 x Copper Sleeves

Operating Voltage

4.8V - 8.4V

Temperature Range

-15°C - +70°C

Refresh Rate

1520 µS / 333Hz

Travel Angle

180 ± 10°

Programmable

Yes

Case Material

Aluminum

Gear Material

Strength Steel

Sensor Type

Potentiometer

Motor Type

Brushless

Bearing

3BB

Direction

CCW

Horn Gear Spline

25T-ɸ5.92 mm

Wire

TYU 300mm / 22AWG

Wire Color

Dimensions

40*20*41.5mm

Weight

88.5g

Operating Speed

0.175 sec/60° @4.8V

0.142 sec/60° @6.0V

0.125 sec/60° @7.4V

0.110 sec/60° @8.4V

Stall Torque

35 kg·cm (486 oz·in) @4.8V

40 kg·cm (556 oz·in) @6.0V

49 kg·cm (681 oz·in) @7.4V

55 kg·cm (764 oz·in) @8.4V

➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.

➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.

Spec Datasheet

Download

Normal Firmware Latest

Download

3D File

Download

Alex

2020/12/25 14:06:40

Great product so far! Easy to install and better then the stock brand Arrma in my Senton 6s. Great turning radius plus quick response! Definitely recommend this servo!
