AGFRC 4.5KG Upgraded High Voltage Micro Digital Brushed Servo(B13DLM V2)

stars, based on 1 reviews
100items available
Contact Us

AGFRC 17g 4.5KG Upgraded HV Aluminum Case Titanium Gear Micro Digital Servo for 1/14 1/18 1/24 RC Cars RC Planes (B13DLM V2)

The B13DLM V2 micro servo is an upgraded version of the B13DLM servo. Compared with the previous version, the new version B13DLM V2 has been upgraded in practicality.

First of all, based on the original servo, its operating voltage has been upgraded, and now it supports high-voltage operation from 6.0V to 8.4V. In addition, due to the increase in servo operating voltage, the servo torque and speed are also increased from 3.8 kg-cm (52.77 oz-in) @ 6.0V and 0.13sec/60° @ 6.0V to 4.5 kg-cm (63 oz-in) @ 8.4V and 0.10sec/60 ° @ 8.4V. Futhermore, the laser engraving on the surface of the B13DLM V2 servo has also been updated. You can clearly see from the laser engraving on the surface of the servo that the programmable icon has been added to B13DLM V2, indicating that this micro steering servo can be accessed through The AGF-SPV3 programming card performs basic programming, such as angle, speed, servo neutral, midpoint inversion, Sanwa SSR mode, etc. The new version will bring you more fun to play the car.


High Performance Digital servo

High Precision Metal Gears

High Quality Brushed Motor

Upgraded High Voltage Version

Programmable Digital Circuit

Ideal for 1/14, 1/18 Revo, 1/24 Scale Crawler, Airplane, 450 Size Helicopter etc.

Stall Torque

            3.0 kg-cm (42 oz-in) @ 4.8V

            3.8 kg-cm (53 oz-in) @ 6.0V

            4.2 kg-cm (58 oz-in) @ 7.4V

            4.5 kg-cm (63 oz-in) @ 8.4V

            Operating Speed

                    • 0.15sec/ 60°@ 4.8V
                    • 0.13sec/60° @ 6.0V
                    • 0.11sec/ 60°@ 7.4V
                    • 0.10sec/60° @ 8.4V

            Package included

            Item 1:

            • 1 x AGFRC B13DLM V2 Programmable Servo
            • 1 x Accessory Kit

              • Item 2:

                • 1 x AGFRC B13DLM V2 Programmable Servo
                • 1 x AGF-SPV3 Servo Programmer
                • 1 x Accessory Kit
                • Note:1. Item 1 does not include the AGF-SPV3 servo programmer.
                •          2. This product price does not include EU VAT.

            Iterm Name:
            B13DLM V2
            Signal Mode:
            Control System:
            Pulse width modulation control
            Refresh Rate:
            Neutral Position:
            Dead Band:
            4 uSec
            Operating Voltage:
            Operating Travel:
            Mechanical Angle:
            No Limit
            Signal Range:
            500 to 2500 uSec
            Angle Sensor:
            -15C°~ +70C°
            Motor Type:
            DC Brushed Motor
            Motor Drive:
            FET Drive
            Horn Gear Spline:
            Waterproof Level:
            Double Ball Bearings
            Bearing Material:
            Gear Material:
            Titanium + Copper
            Case Material:
            Wire Guage:
            JR 180mm / 26AWG
            Net Weight:
            17g (0.60oz)

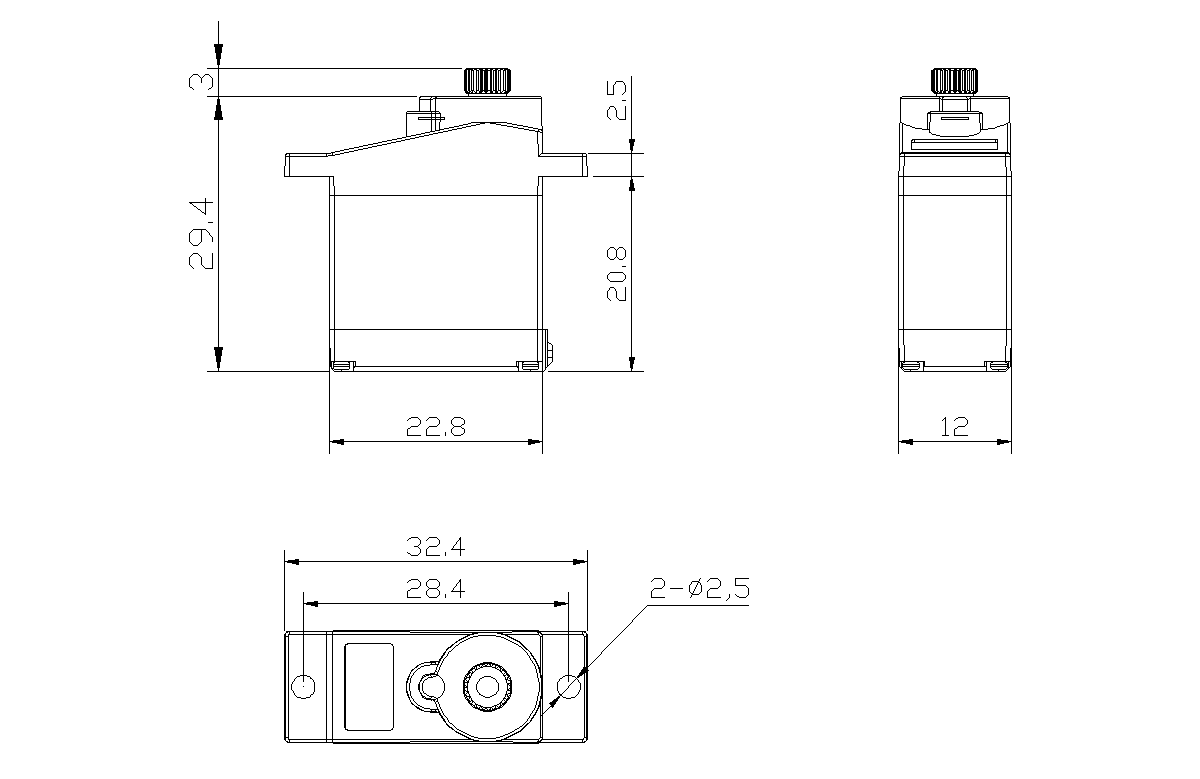

            Product Size:
            22.8*12*29.4mm (0.90x0.47x1.16in)
