A80BHM V2 40Kg High Torque Brushless Full Metal Gear Servo For Plane And RC Car
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.

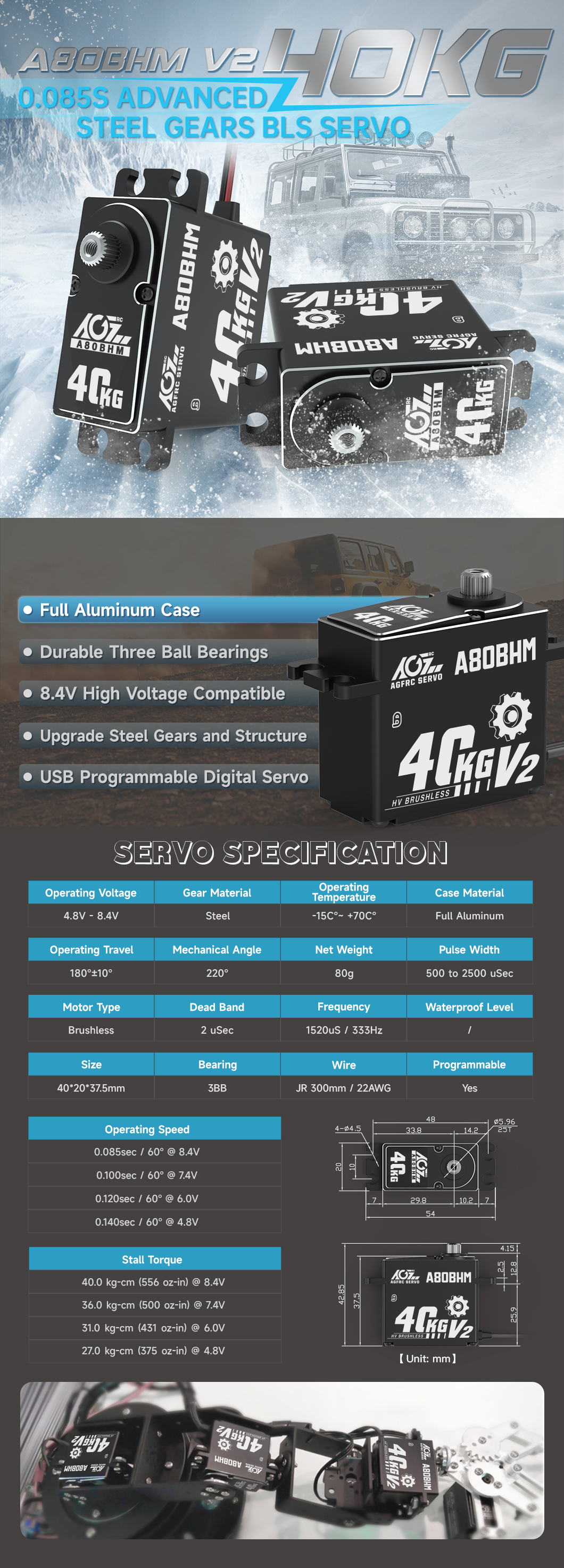

AGFRC High Voltage Super Torque Digital Brushless Metal Steel Gears RC Servo (A80BHM V2)
If you have been using the A80BHM servo before, then the A80BHM V2 would be a better choice for you, because the A80BHM V2 replaces all the non-steel gears in the gearbox with steel gears while maintaining high torque and high performance. This means that the A80BHM V2 will be more durable, providing you with a better experience.
If you need a waterproof version, please jump to A80BHMW V2 for purchase. The difference between the A80BHM V2 and A80BHMW V2 servos lies in two aspects: the A80BHM V2 uses a POTENTIOMETER sensor, while the A80BHMW V2 has a MAGNETIC sensor and is IP67 waterproof.
Main Features
• Stable Performance Standard Digital Servo
• High Precision Fully Metal Gears
• High Efficiency Brushless Motor
• High Strength Three Ball Bearings
• Programmable Digital Circuit
• Full CNC Aluminium Hulls and Structure
Specifications
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Strength Steel
Position Sensor
Potentiometer
Motor Type
Brushless
Bearing
3BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
TYU 300mm / 22AWG
Wire Color
Dimensions
40*20*37.5mm
Weight
80g
Operating Speed
0.140 sec/60° @4.8V
0.120 sec/60° @6.0V
0.100 sec/60° @7.4V
0.085 sec/60° @8.4V
Stall Torque
27 kg·cm (375 oz·in) @4.8V
31 kg·cm (430 oz·in) @6.0V
36 kg·cm (500 oz·in) @7.4V
40 kg·cm (556 oz·in) @8.4V
Package Includes
Servo
1 x A80BHM V2 Servo
Plastic Horn
2 x 25T Plastic Horn
Screw
4 x Mounting Screw
1 x Servo Horn Screw
Other Accessories
4 x Rubber Pad
4 x Copper Sleeve
Download
• Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
• If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
Shipping Q&A
1. How long will it take for the order to be shipped after placing the order?
• Goods with available stock will be delivered within 3 working days.
• For goods without inventory, we will send you a notification by email. The delivery time will depend on the production schedule, generally within 10 days.
2. How long is the transportation time?
• Transportation time will depend on the shipping method and destination.
| Shipping Method | Estimated Delivery Time |
|---|---|
| DDP(Delivered Duty Paid) | 6 - 9 Days |
| Fast DDP(Delivered Duty Paid) | 2 - 4 Days |
| DHL/FedEx/UPS | 4 - 6 Days |
