SA81BVMW 0.095S 48KG High Torque 360 Degree Continuous Rotation Brushless Programmable Waterproof 14V 3S Smart Servo
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.

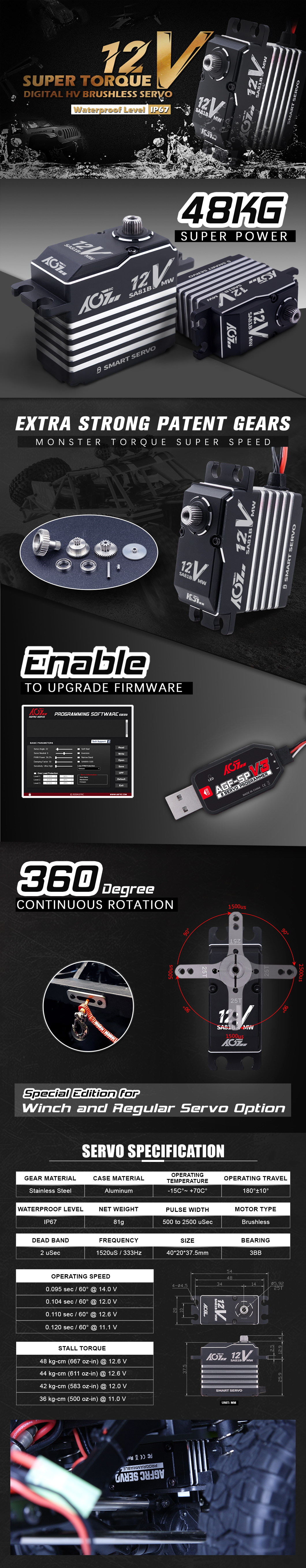

AGFRC SA81BVMW 0.095S 48KG High Torque 360 Degree Continuous Rotation Brushless Programmable Waterproof 14V 3S Smart Servo
➤ As 2s lipo application cannot meet more and more people's usage, this 12V Series Smart Servo is especially designed for higher voltage application, such as R/C Crawler Cars, Airplanes, Boats, Robots or Industrial/Medical applications. The highlight of this smart servo is available to upgrade the firmware via a USB programmer for different usage as required.
MAIN FEATURES
➤ Simplify- 3S Lipo high voltage application, available to connect with battery directly.
➤ Smooth- Three ball bearings to make it more powerful and smoother.
➤ Powerful- Extra strong patent steel gears and upgrade structure.
➤ Reliable- High quality brushless motor for longer servo life.
➤ Waterproof- High accuracy magnetic position sensor, allow to be used in humid or rainy situation.
➤ Precision- High precision CNC aluminum machined housing.
➤ Programmable- Available to change the firmware for different usage.
SPECIFICATIONS
Operating Voltage
10V - 14V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Strength Steel
Sensor Type
Magnetic Sensor
Motor Type
Brushless
Bearing
3BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
TYU 300mm / 22AWG
Wire Color
Dimensions
40*20*37.5mm
Weight
81g
Operating Speed
0.120 sec/60° @11.1V
0.110 sec/60° @12.0V
0.104 sec/60° @12.6V
0.095 sec/60° @14.0V
Stall Torque
36 kg·cm (500 oz·in) @11.1V
42 kg·cm (583 oz·in) @12.0V
44 kg·cm (611 oz·in) @12.6V
48 kg·cm (667 oz·in) @14.0V
PACKAGE INCLUDES
➤ 1 x SA81BVMW Servo
➤ 1 x 25T Metal Horns
➤ 2 x 25T Plastic Horns
➤ 4 x Mounting Screw
➤ 3 x Horn Screw
➤ 4 x Rubber Pad
➤ 4 x Copper Sleeve
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
