AGFRC
SA19 19KG 0.073Sec Fast Speed 2S Low Profile Smart Servo For 1/10 RC Cars
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.
Product Tag:
Low ProfileAGFRC SA19 0.073Sec 19Kg Digital Smart Low Profile Programmable Servo For 1/10 RC Cars
➤ AGFRC 2S low profile smart servo got a new member SA19, which allowed to change to the firmware for regular and winch servo usage. 0.073sec fast response and 19kg incredible torque make it a perfect match for those who demand the very best for their 1/10 touring car or off-road application. The heat sink case design not only looks good but also allows for cooler and smoother operating temperatures. Take one to impress your friends.
MAIN FEATURES
➤ 2S Low Profile Smart Servo.
➤ Aluminium CNC Case.
➤ High reliability Steel Gear.
➤ Programmable Digital Circuit.
➤ More Durable 2 Ball Bearings.
➤ Good Stability Brushless Motor.
➤ Magnetic Sensor Waterproof IP67.
➤ Can be used as a Winch or Regular Servo.
➤ Ideal for 1/10, 1/12 On Road, Off Road, Touring, Drifting, Airplanes, Boats, Robot etc.

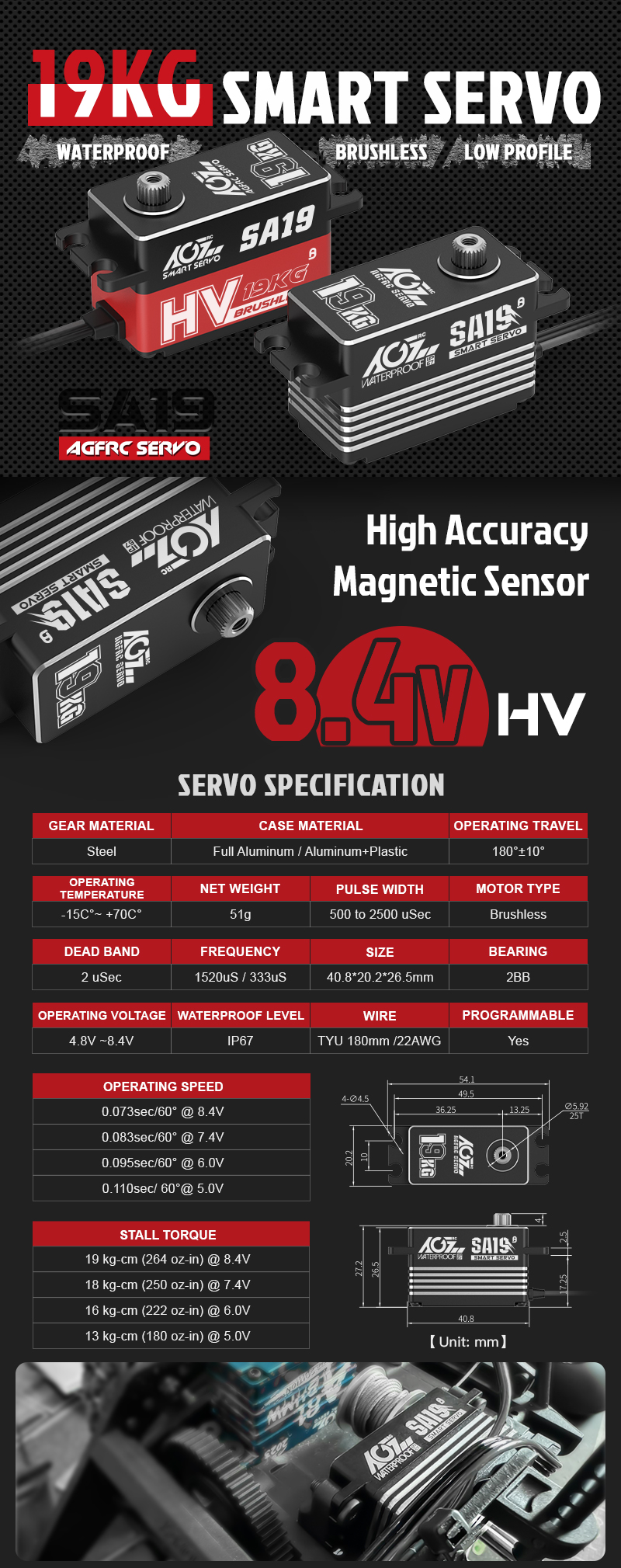

SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Strength Steel
Sensor Type
Magnetic Sensor
Motor Type
Brushless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
TYU 180mm / 22AWG
Wire Color
Dimensions
40.8*20.2*26.5mm
Weight
54.5g
Operating Speed
0.110 sec/60° @4.8V
0.095 sec/60° @6.0V
0.083 sec/60° @7.4V
0.073 sec/60° @8.4V
Stall Torque
13 kg·cm (180 oz·in) @4.8V
16 kg·cm (222 oz·in) @6.0V
18 kg·cm (250 oz·in) @7.4V
19 kg·cm (264 oz·in) @8.4V
PACKAGE INCLUDES
➤ 1 x SA19 Smart Servo
➤ 4 x 25T Plastic Horns
➤ 2 x Mounting Screw
➤ 1 x Horn Screw
➤ 2 x Rubber Pad
➤ 2 x Copper Sleeve
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
