B53DHS 24Kg 0.190 Sec Digital Wide Voltage Programmable High Torque MG Gear Servo
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.

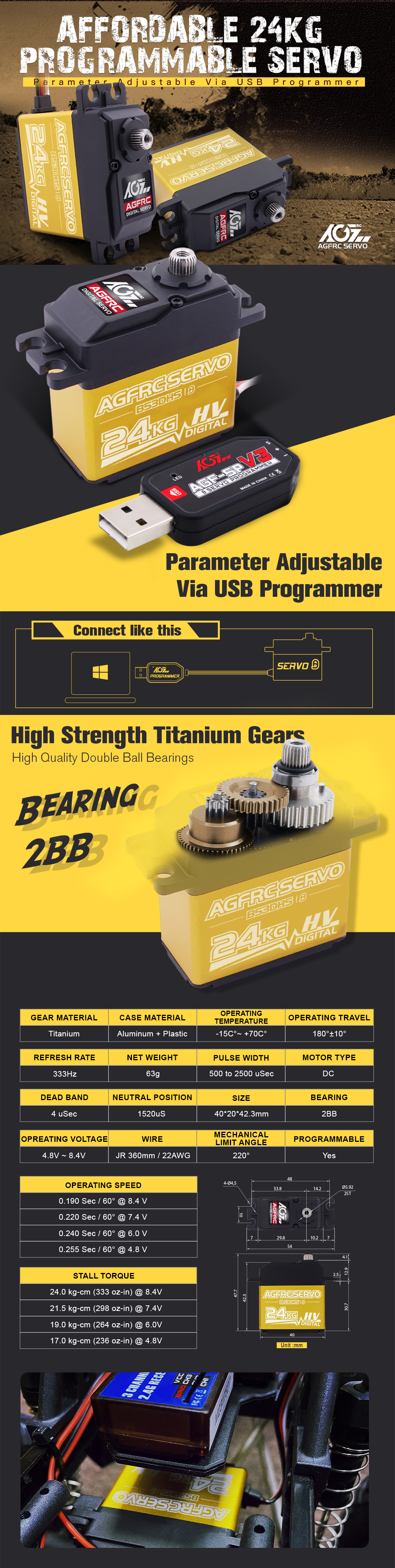

AGFRC 24Kg 0.190Sec Digital Wide Voltage Programmable High Torque MG Gear Servo(B53DHS)
➤ AGFRC new member affordable B53DHS standard digital servo with programmable feature. The design of high precision metal double bearing and titanium gear. High quality DC motor and aluminum plus plastic housing ensure quality and dust and splash proof. It is very suitable for RC Cars, Trucks, Airplane, Helicopter, UAV and Engine etc. From raw materials to production, our products are completely green. Believe that our product is a reliable presence for your model!
MAIN FEATURES
➤ Medium Aluminum Case.
➤ Super Silky Double Ball Bearing.
➤ High Strength Titanium Gear.
➤ Lightweight Standard-sized Servo.
➤ Programmable Via USB Programmer.
SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum + Plastic
Gear Material
Titanium
Sensor Type
Potentiometer
Motor Type
DC
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
JR 360mm / 22AWG
Wire Color
Dimensions
40*20*42.3mm
Weight
63g
Operating Speed
0.240 sec/60° @4.8V
0.220 sec/60° @6.0V
0.200 sec/60° @7.4V
0.190 sec/60° @8.4V
Stall Torque
17.0 kg·cm (236 oz·in) @4.8V
19.0 kg·cm (264 oz·in) @6.0V
21.5 kg·cm (298 oz·in) @7.4V
24.0 kg·cm (333 oz·in) @8.4V
PACKAGE INCLUDES
➤ 1 x B53DHS Servo
➤ 2 x 25T Plastic Horns
➤ 4 x Mounting Screw
➤ 1 x Horn Screw
➤ 4 x Rubber Pad
➤ 4 x Copper Sleeve
