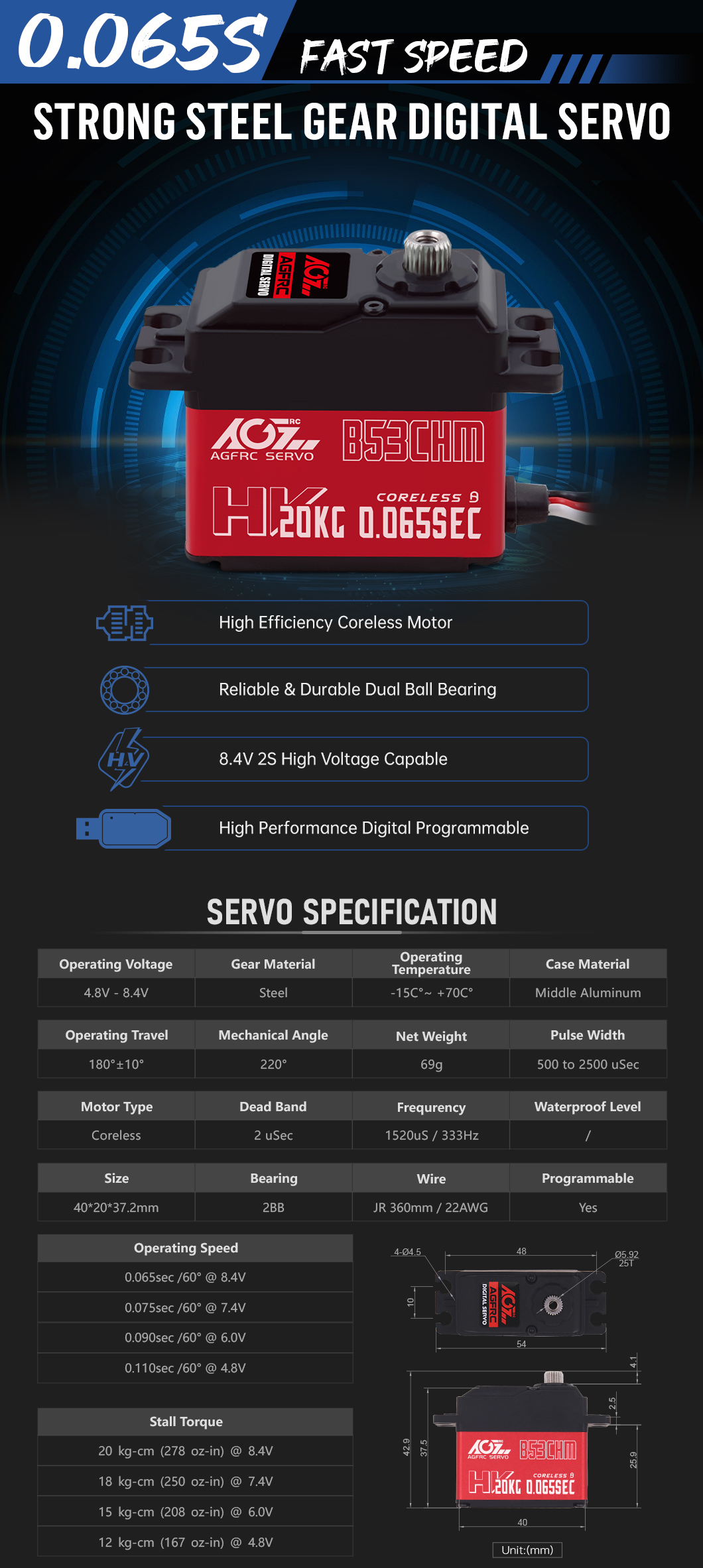

B53CHM 20KG 0.065sec HV Digital Programmable Coreless High Speed Servo
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.
Product Tag:
26KG TorqueAGFRC 20kg HV Programmable High Torque 0.065sec High Speed Digital Coreless Standard Servo for 1/10 RC Crawler Buggy(B53CHM V2)
➤ AGFRC Servo B53CHM V2 is upgraded to 20KG high torque and 0.065Sec ultra speed. The appearance adopts the aluminium middle case design, new laser engraving, and supports the programmable parameter function. Dust and water resistant enable to run on the wet glass. In addition, its internal structure has been completely upgraded from the motor to the gears. Steel gear and pin shaft is reinforced to 2.0mm, which is stronger and more reliable. New upgrade for more model experience fun.
MAIN FEATURES
➤ High Performance Standard Digital Servo.
➤ High Precision Steel Gears.
➤ High Quality Coreless Motor.
➤ High Strength Dual Ball Bearings.
➤ Aluminium Middle Hulls and Structure.
➤ Dust and Water Resistance.
➤ Available for Parameter Programmable.
➤ Ideal for 1/10, 1/12 On road, Off road, Truck, Airplane, Helicopter and Engine etc.
SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum + Plastic
Gear Material
Strength Steel
Sensor Type
Potentiometer
Motor Type
Coreless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
JR 360mm / 22AWG
Wire Color
Dimensions
40*20*37.5mm
Weight
69g
Operating Speed
0.160 sec/60° @4.8V
0.140 sec/60° @6.0V
0.110 sec/60° @7.4V
0.100 sec/60° @8.4V
Stall Torque
19 kg·cm (264 oz·in) @4.8V
22 kg·cm (305 oz·in) @6.0V
24 kg·cm (333 oz·in) @7.4V
26 kg·cm (361 oz·in) @8.4V
PACKAGE INCLUDES
➤ 1 x B53CHM Servo
➤ 2 x 25T Plastic Horn
➤ 4 x Mounting Screw
➤ 1 x Horn Screw
➤ 4 x Rubber Pad
➤ 4 x Copper Sleeve
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
