AGFRC
B55DLS 11.5Kg High Torque Digital MG Standard Size RC Servo
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.
Product Tag:
Plastic CaseAGFRC B55DLS 12Kg Torque DC Digital MG Standard Size RC Servo
➤ AGFRC B55DLS 25T Standard Digital Servo,It is a low cost type servo, it has made in metal gears, brushed motor and durable dual ball bearings size to ensure the servo quality. With the advantage of light weight, it is very suitable for RC Airplane.
MAIN FEATURES
➤ High Precision Metal Gears.
➤ High Quality Brushed Motor.
➤ Durable Dual Ball Bearings.

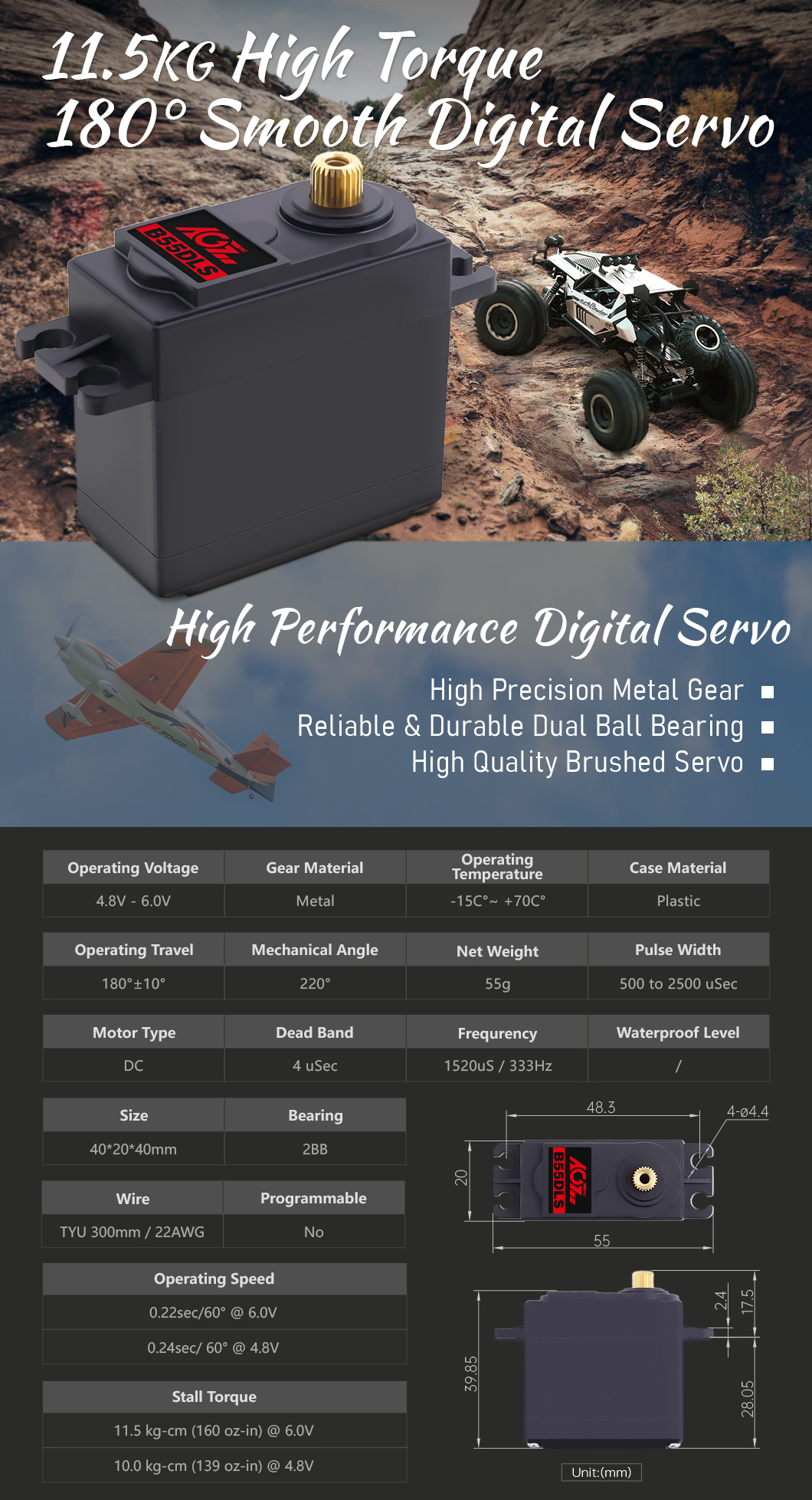

SPECIFICATIONS
Operating Voltage
4.8V - 6.0V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Plastic
Gear Material
Copper
Sensor Type
Potentiometer
Motor Type
DC
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
JR 300mm / 22AWG
Wire Color
Dimensions
40*20*40mm
Weight
55g
Operating Speed
0.240 sec/60° @4.8V
0.220 sec/60° @6.0V
Stall Torque
10.0 kg·cm (139 oz·in) @4.8V
11.5 kg·cm (160 oz·in) @6.0V
PACKAGE INCLUDES
➤ 1 x B55DLS Servo
➤ 2 x 25T Plastic Horn
➤ 4 x Mounting Screw
➤ 1 x Horn Screw
➤ 4 x Rubber Pad
➤ 4 x Copper Sleeve
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
Spec Datasheet
