AGFRC B13DLS V2 2.7 kg-cm 0.072sec Fast Speed Programmable Micro Servo For 450 Size Helicopter / Mini cars

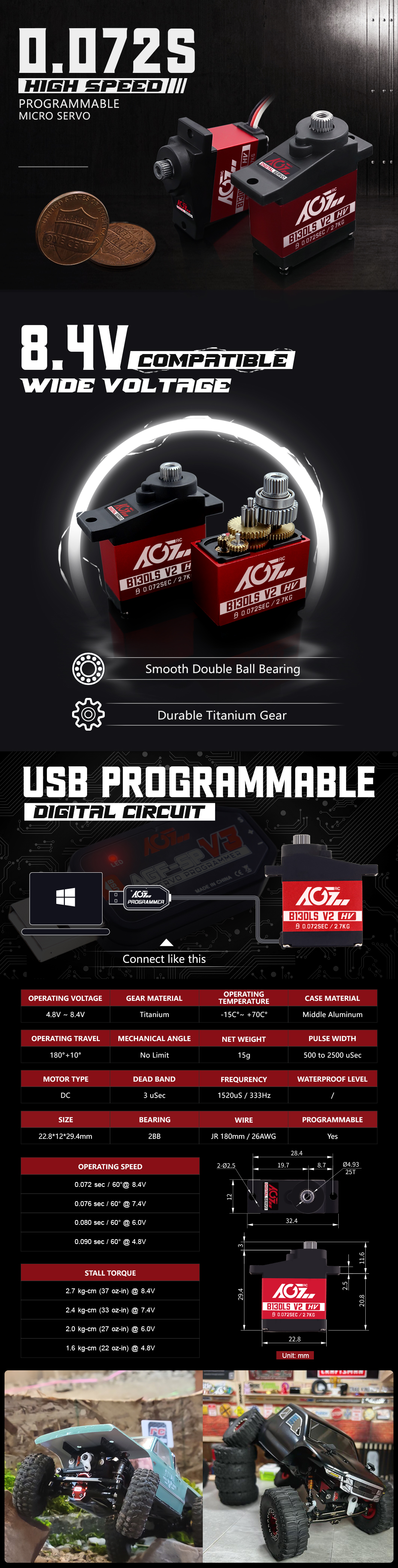

➤ AGFRC B13DLS V2 servo, the upgrade version of the B13DLS servo, now it is the 2S HV programmable digital micro servo, with 16g light weight and compact size make it suitable for most mini rc cars use, and it would also be a fine choice for the rc plane if you require 0.072sec fast speed and 2.7 kg-cm high torque in micro size as the potentiometer sensor is used and it can ensure your plane will not be disturbed by the magnetic field during flight. Fully upgrade to a programmable digital circuit, which supports adjusting the servo parameter via USB Programmer for different devices.

MAIN FEATURES

➤ Plastic and Aluminum Case.

➤ High Precision Titanium Gears.

➤ Durable Double Ball Bearings.

➤ High Performance DC Motor.

➤ HV 2S Programmable Digital Micro Servo.

➤ Ideal for 1/14, 1/18 Revo, 1/24 Scale Crawler, Airplane, 400/450 Size Helicopter, etc.

SPECIFICATIONS

Operating Voltage

4.8V - 8.4V

Temperature Range

-15°C - +70°C

Refresh Rate

1520 µS / 333Hz

Travel Angle

180 ± 10°

Programmable

Yes

Case Material

Aluminum+Plastic

Gear Material

Titanium

Sensor Type

Potentiometer

Motor Type

Bearing

2BB

Direction

CCW

Horn Gear Spline

25T-ɸ4.94 mm

Wire

JR 180mm / 26AWG

Wire Color

Dimensions

22.8 x 12 x 29.4 mm

Weight

16 g

Operating Speed

0.090 sec/60° @4.8V

0.080 sec/60° @6.0V

0.076 sec/60° @7.4V

0.072 sec/60° @8.4V

Stall Torque

1.6 kg·cm (22 oz·in) @4.8V

2.0 kg·cm (27 oz·in) @6.0V

2.4 kg·cm (33 oz·in) @7.4V

2.7 kg·cm (37 oz·in) @8.4V

PACKAGE INCLUDES

➤ 1 x B13DLS V2 Servo

➤ 4 x 25T Plastic Horn

➤ 3 x M2*8*φ5.1mm Screw

➤ 1 x M2.5*4mm Screw

➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.

➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.

Spec Datasheet

Download

3D File

Download
