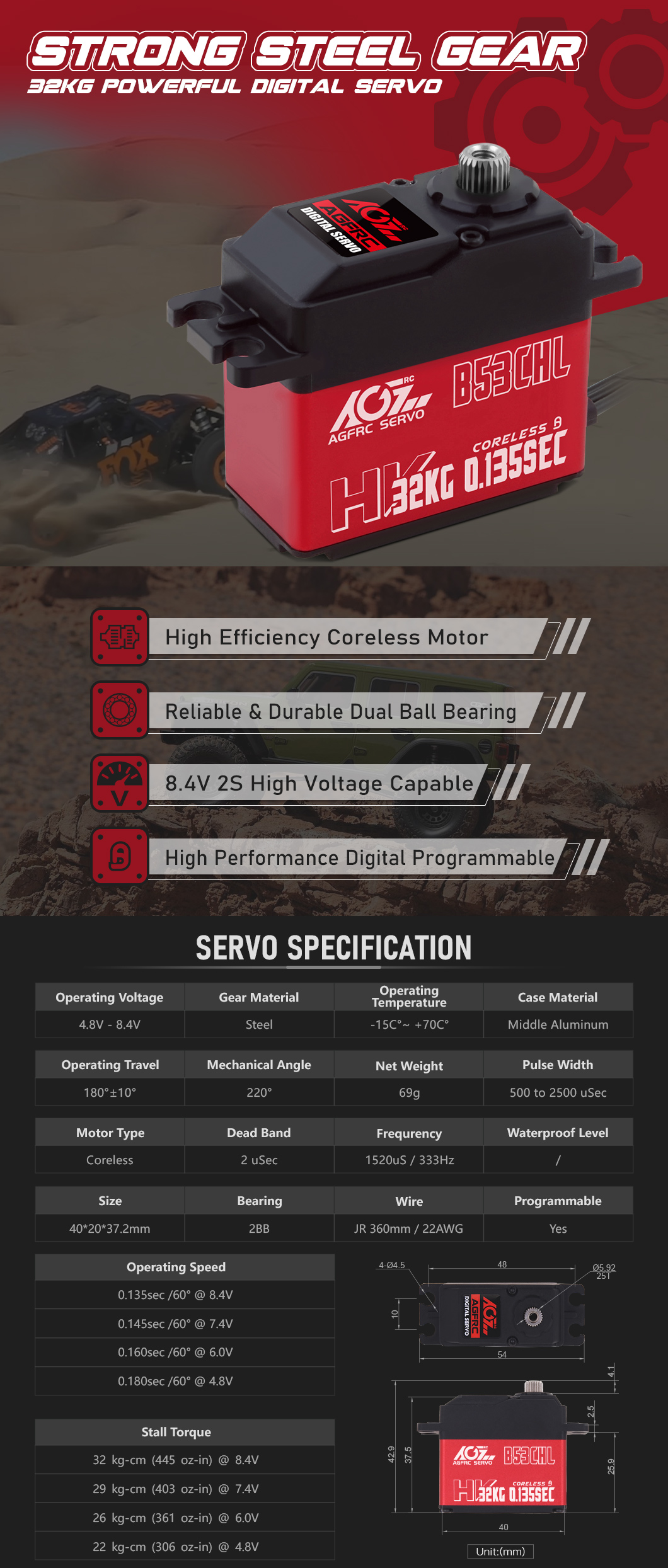

B53CHL 32Kg High Torque Updated Version Steel Gear HV Coreless Digital Standard Servo
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.
AGFRC B53CHL V2 32Kg High Torque Programmable Digital Servo with Aluminium Case and Steel Gears for RC Car, Airplane, Helicopter, Boat and Robot
➤ B53CHL V2 it is a new upgrade version of B53CHL Servo. It not only has a large torque of 32KG, there is also a high voltage of up to 8.4V. It appeared in front of everyone with a brand new look. In addition, it also adds a new programmable function, Very suitable for model enthusiasts who like custom parameters. Steel gears and double bearings combined with high quality coreless motors.
MAIN FEATURES
➤ Aluminium Middium Case.
➤ High Precision Steel Gears.
➤ High Quality Coreless Motor.
➤ High Strength Dual Ball Bearings.
➤ Programmable Digital Circuit.
➤ Lightweight Standard-sized Servo.
SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum + Plastic
Gear Material
Strength Steel
Sensor Type
Potentiometer
Motor Type
Coreless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
JR 360mm / 22AWG
Wire Color
Dimensions
40*20*37.5mm
Weight
69.5g
Operating Speed
0.180 sec/60° @4.8V
0.160 sec/60° @6.0V
0.145 sec/60° @7.4V
0.135 sec/60° @8.4V
Stall Torque
22 kg·cm (306 oz·in) @4.8V
26 kg·cm (361 oz·in) @6.0V
29 kg·cm (403 oz·in) @7.4V
32 kg·cm (445 oz·in) @8.4V
PACKAGE INCLUDES
➤ 1 x B53CHL Servo
➤ 2 x 25T Plastic Horn
➤ 4 x Mounting Screw
➤ 1 x Horn Screw
➤ 4 x Rubber Pad
➤ 4 x Copper Sleeve
