AGFRC SA19 19KG IP67 Waterproof Brushless Digital Servo With Heat Sink
In stock: ships within 2 business days.
Low stock: lead time confirmed upon order.
Delivery: 4–9 days after shipment.

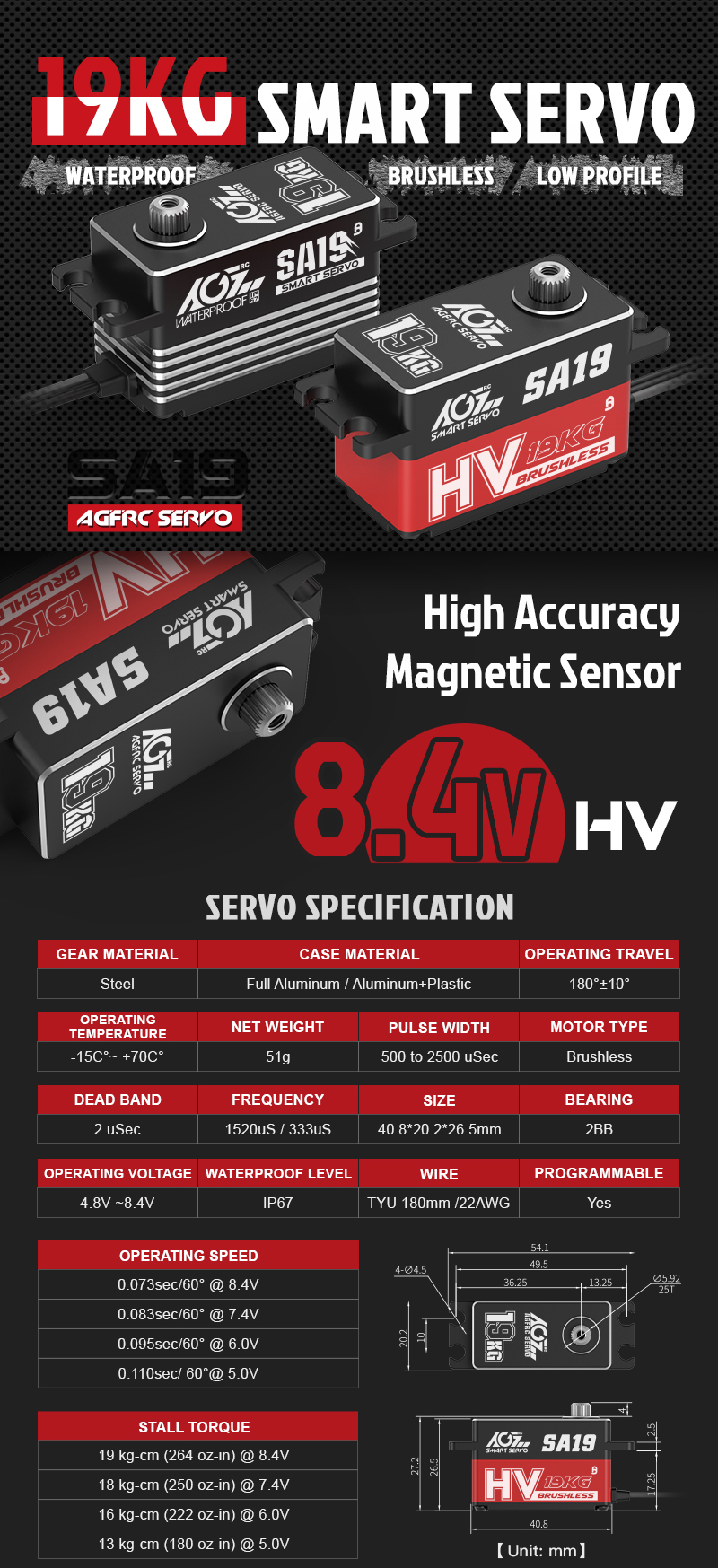

AGFRC SA19 SA50BHLW 19KG IP67 Waterproof Brushless Digital Servo with Magnetic Angle Sensor Strength Steel Gears Programmable PWM and 25T Spline for 1/10 and 1/8 RC Models
➤ The AGFRC SA19, also identified as SA50BHLW, is a compact IP67 waterproof brushless digital servo designed for responsive RC steering and mechanical-control duties. It provides up to 19kg-cm at 8.4V with a fast 0.073 sec/60° response, supported by magnetic angle sensing and programmable PWM control.
➤ With strength steel gears, an aluminum case, metal bearings and a 25T Ø5.92mm spline, the 54.5g SA19 is built for precise control in compact installations. It is a market-based candidate for 1/10 and 1/8 RC cars, trucks, crawlers, boats and robotics after verifying mounting dimensions, power requirements and control load.
Main Features
● 19KG High-Torque Output at 8.4V
● 0.073s/60° High-Speed Response at 8.4V
● 4.8V–8.4V Operating Voltage
● IP67 Waterproof Protection
● Brushless Motor with FET Drive
● Magnetic Angle Sensor Feedback
● Strength Steel Gears and Aluminum Case
● Programmable PWM Control with 25T Spline
Applications
➤ Recommended for 1/10 and 1/8 RC cars trucks crawlers boats and robotics after verifying power-system compatibility mounting dimensions and control load.
Specifications
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Strength Steel
Sensor Type
Magnetic Sensor
Motor Type
Brushless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
TYU 180mm / 22AWG
Wire Color
Dimensions
40.8*20.2*26.5 mm (1.61 x 0.80 x 1.04 in)
Weight
54.5 g (1.92 oz)
Operating Speed
0.110 sec/60° @4.8V
0.095 sec/60° @6.0V
0.083 sec/60° @7.4V
0.073 sec/60° @8.4V
Stall Torque
13 kg·cm (180 oz·in) @4.8V
16 kg·cm (222 oz·in) @6.0V
18 kg·cm (250 oz·in) @7.4V
19 kg·cm (264 oz·in) @8.4V
Package Includes
➤ 1 x SA19 Smart Servo
➤ 3 x 25T Plastic Horns
➤ 4 x M3*12mm Screws
➤ 1 x M3*8mm Screw
➤ 4 x 9*6.9*5.6mm Rubber Pads
➤ 4 x φ6*φ3.5*5mm Copper Sleeves
➤ 1 x AGFRC Logo Sticker
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
