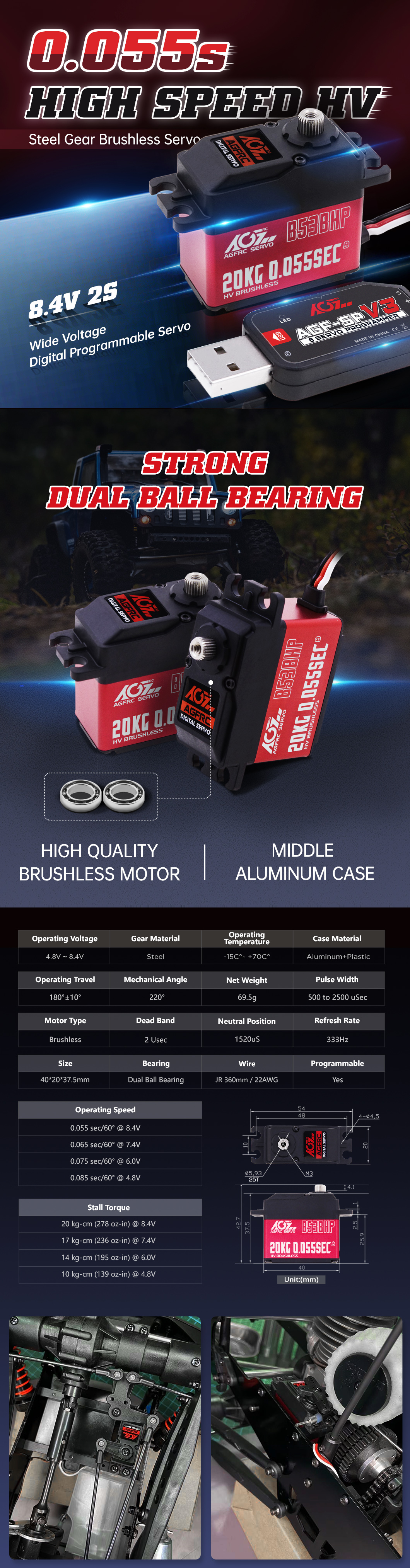

0.055sec High Speed HV Programmable Digital Brushless Servo(B53BHM)

不能存图片

AGFRC 18kg HV 0.055sec High Speed Programmable Digital Brushless Servo for RC Car(B53BHM)

  • AGFRC high quality digital servo can be common use in remote control climbing cars, CCPM on 600 and 700 class heli, 1/10 scale buggies, and others remote control toys.
  • Good idea for the remote control toy enthusiasts who want to DIY their RC car, and also good choice for university professors and students who are interested in developing software for robot parts. It’s also a good choice for some of the industrial device applications.


Features:

  • CNC aluminum middle shell, and it adopts stainless steel gear.
  • Fast heat dissipation, strong compatibility and sensitive response.
  • Brushless motor for a longer using life.
  • IP65 waterproof design and waterproof rubber seals screws.


Stall Torque:

  • 10 kg-cm (139.0 oz-in)@5.0V
  • 12 kg-cm (166.8 oz-in)@6.0V
  • 15 kg-cm (209.0 oz-in)@7.4V
  • 18 kg-cm (250.0 oz-in)@8.4V


Operating Speed:

  • 0.100 sec/60°@5.0V
  • 0.085 sec/60°@6.0V
  • 0.070 sec/60°@7.4V
  • 0.055 sec/60°@8.4V


Package included:

  • Item 1

    • 1 x B53BHM Brushless Digital Servo
    • 1 x Assessory Kit

    • Item 2

      • 1 x B53BHM Brushless Digital Servo
      • 1 x AGF-SPV2 Servo Programmer
      • 1 x Assessory Kit

      • Item 3

        • 1 x B53BHM Brushless Digital Servo
        • 1 x AGF-SPV2 Servo Programmer
        • 1 x 25T Metal servo Horn
        • 1 x Assessory Kit


    • Note: Item 1 does not include the AGF-SPV2 servo programmer.



Brand:
AGFRC
Iterm Name:
B53BHM
Signal Mode:
Digital
Control System:
Pulse Width Modulation
Refresh Rate:
333Hz
Neutral Position:
1520uS
Dead band:
2 uSec
Operating Voltage:
4.8V ~ 8.4V
Operating Travel:
180°±10°
Mechanical Angle:
220°
Signal Range:
500 to 2500 uSec
Angle Sensor:
Potentiometer
Temperature:
-15C°~ +70C°
Motor Type:
Brushless
Motor Drive:
FET Drive
Horn Gear Spline:
25T-φ5.92mm
Programmable:
Yes
Bearing:
Double Bearings
Bearing Material:
Metal
Gear Material:
Strength Steel
Case Material:
Aluminum+Plastic
Certification:
CE,FCC,RoHs
Product Size:
40*20*37.2mm(1.57*0.79*1.46 in)
Wire Guage:
JR 300mm / 22AWG
Net Weight:
53g(1.87 oz)
