AGFRC
C04CLS 0.75KG Torque 6V High Precision Plastic Gears Plastic Gear Digital Coreless Mini Micro Servo for RC Car 3D Flight
In stock: ships within 2 business days.
Low stock: lead time confirmed upon order.
Delivery: 4–9 days after shipment.
AGFRC C04CLS 4.3g 0.07s High Speed Digital Mini Micro Coreless Servo For 1:35 Scaler
➤ AGFRC C04CLS is a 4.3g ultra-small body digital 20T micro servo. It is 6.0V high voltage capable, and it can reach 0.07s fast speed and 750 g-cm torque when the voltage is 5.0V. The coreless motor has been used to make sure the output, and plastic gears not only reduce the cost under the premise of ensuring the quality, but also provides possibility for other applications.
MAIN FEATURES
➤ High Performance Digital Servo.
➤ High Precision Plastic Gears.
➤ High Quality Coreless Motor.

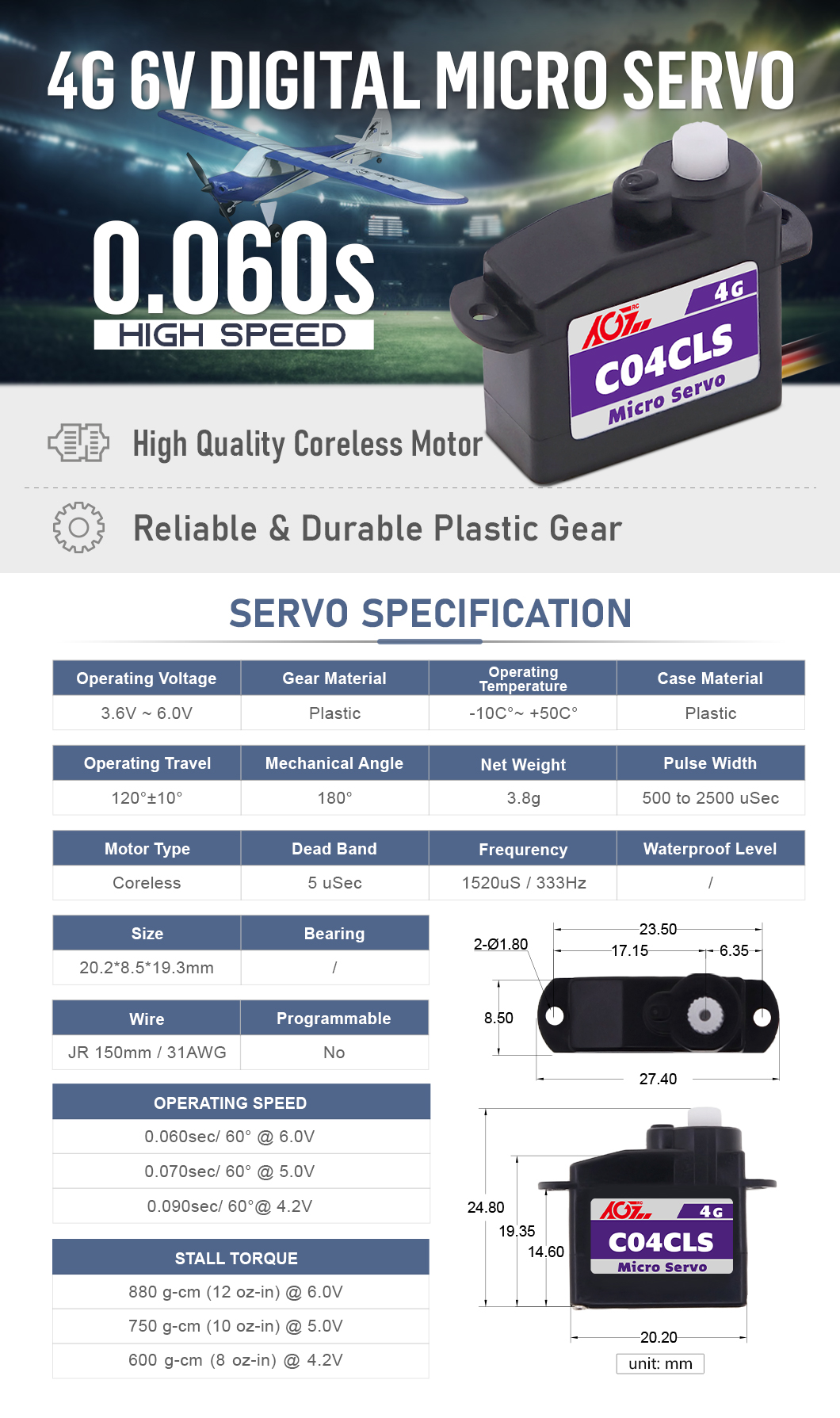

SPECIFICATIONS
Operating Voltage
3.6V - 6.0V
Temperature Range
-10°C - +50°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
120 ± 10°
Programmable
No
Case Material
Plastic
Gear Material
plastic
Sensor Type
Potentiometer
Motor Type
Coreless
Bearing
- -
Direction
CCW
Horn Gear Spline
20T-ɸ3.85 mm
Wire
JST(JR) 150mm / 30AWG
Wire Color
Dimensions
20.2*8.5*19.3mm
Weight
4.5g
Operating Speed
0.090 sec/60° @4.2V
0.070 sec/60° @5.0V
0.060 sec/60° @6.0V
Stall Torque
600 g·cm (8 oz·in) @4.2V
750 g·cm (10 oz·in) @5.0V
880 g·cm (12 oz·in) @6.0V
PACKAGE INCLUDES
➤ 1 x C04CLS Servo
➤ 4 x Plastic Horn
➤ 3 x Mounting Screw
➤ 1 x Horn Screw
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
Spec Datasheet
xxxxxx
