AGFRC B53BHPW 20KG IP67 Brushless Servo
In stock: ships within 2 business days.
Low stock: lead time confirmed upon order.
Delivery: 4–9 days after shipment.

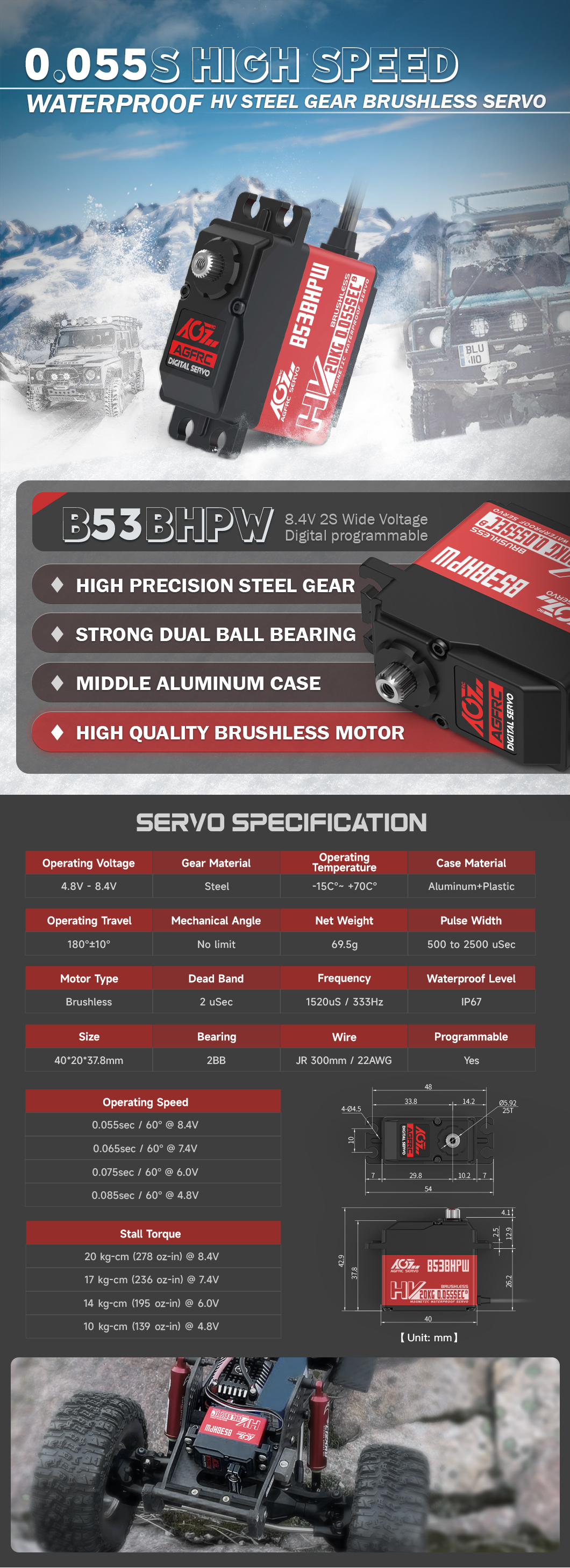

AGFRC B53BHPW 20KG IP67 HV Programmable High Speed Brushless Digital Servo with Magnetic Angle Sensor
➤ The AGFRC B53BHPW is a standard-size HV brushless digital servo built for high-speed steering response in RC racing, touring and drift applications. It delivers up to 20 kg-cm of stall torque and an ultra-fast 0.055 sec/60° speed at 8.4 V, with a wide 4.8-8.4 V operating voltage range.
➤ With IP67 waterproof protection, a magnetic angle sensor, FET drive, strength steel gears, 2BB metal bearings and an aluminum case, the B53BHPW is designed for fast, precise and durable RC steering control in wet, dusty and outdoor driving conditions.
Main Features
● Ultra-fast 0.055 sec/60° speed at 8.4 V
● Maximum stall torque of 20 kg-cm at 8.4 V
● IP67 waterproof protection for wet and dusty RC environments
● Brushless motor with FET drive for efficient high-speed response
● Magnetic angle sensor for accurate steering feedback
● Strength steel gears with 2BB metal bearing support
● Programmable PWM control with 333 Hz refresh rate and 2 μsec dead band
● Standard 40 x 20 x 37.5 mm aluminum case with 25T-Ø5.92 mm spline
Applications
➤ Ideal for 1/10 scale RC racing cars, touring cars, drift cars and outdoor speed-focused builds, and suitable for lightweight 1/8 RC models needing a 20KG IP67 high-speed brushless steering servo.
Specifications
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum + Plastic
Gear Material
Strength Steel
Sensor Type
Magnetic Sensor
Motor Type
Brushless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
JR 300mm / 22AWG
Wire Color
Dimensions
40*20*37.5 mm (1.57 × 0.79 × 1.48 in)
Weight
69.5 g (2.45 oz)
Operating Speed
0.085 sec/60° @4.8V
0.075 sec/60° @6.0V
0.065 sec/60° @7.4V
0.055 sec/60° @8.4V
Stall Torque
10 kg·cm (139 oz·in) @4.8V
14 kg·cm (195 oz·in) @6.0V
17 kg·cm (236 oz·in) @7.4V
20 kg·cm (278 oz·in) @8.4V
Pacakge Includes
● 1 x B53BHPW Servo
● 2 x 25T Plastic Horns
● 4 x Mounting Screws
● 1 x Horn Screw
● 4 x Rubber Pads
● 4 x Copper Sleeves
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
