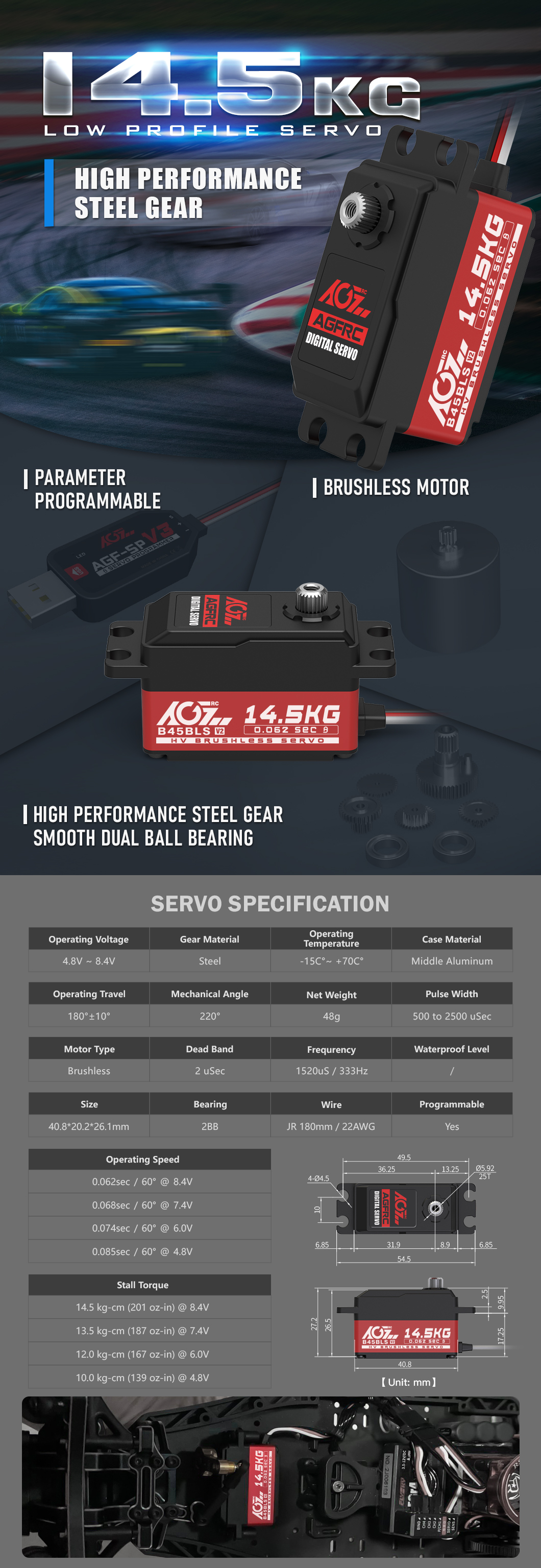

AGFRC B45BLS V2 14.5KG 0.062Sec Brushless Digital Servo
In stock: ships within 2 business days.
Low stock: lead time confirmed upon order.
Delivery: 4–9 days after shipment.
AGFRC B45BLS V2 14.5KG High-Speed Brushless Digital Servo with Steel Gears Programmable PWM Control Aluminum Case and 25T Spline for RC Cars Trucks Crawlers and Boats
➤ The AGFRC B45BLS V2 is a compact low-profile brushless digital servo designed for fast steering response and accurate positioning in RC models. It delivers up to 14.5kg-cm of stall torque at 8.4V with a fast 0.062 sec/60° operating speed, offering a lightweight 48g solution for compact high-response installations.
➤ The servo combines a brushless motor, FET drive, strength steel gears, a metal-bearing support system and programmable PWM control. With a 4.8V–8.4V operating range and 25T Ø5.92mm spline, it fits RC cars, trucks, crawlers, boats, robotics and other compact steering applications.
Main Features
● Brushless motor with FET drive for fast, responsive operation
● Maximum stall torque of 14.5 kg-cm at 8.4 V
● Operating speed up to 0.062 sec/60° at 8.4 V
● Programmable digital control
● Strength steel gears for dependable load handling
● Dual ball bearings with metal bearing support
● Compact and lightweight design: 40.8 x 20.2 x 26.5 mm, 48 g
● Wide operating voltage range from 4.8 V to 8.4 V
● Standard 25T spline with Ø5.92 mm horn shaft
● 333 Hz refresh rate and 2 μsec dead band
APPLICATION
➤ Best suited to 1/10- and 1/8-scale RC cars, trucks, crawlers, fixed-wing aircraft, helicopter control systems and other compact applications requiring fast, programmable torque control.
SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum + Plastic
Gear Material
Strength Steel
Sensor Type
Potentiometer
Motor Type
Brushless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
JR 180mm / 22AWG
Wire Color
Dimensions
40*20.2*26.5 mm (1.61 x 0.80 x 1.04 in)
Weight
48 g (1.69 oz)
Operating Speed
0.085 sec/60° @4.8V
0.074 sec/60° @6.0V
0.068 sec/60° @7.4V
0.062 sec/60° @8.4V
Stall Torque
10.0 kg·cm (139 oz·in) @4.8V
12.0 kg·cm (167 oz·in) @6.0V
13.5 kg·cm (187 oz·in) @7.4V
14.5 kg·cm (201 oz·in) @8.4V
Package Includes
● 1 x B45BLS V2 Servo
● 2 x 25T Plastic Horns
● 4 x Mounting Screws
● 1 x Horn Screw
● 4 x Rubber Pads
● 4 x Copper Sleeves
