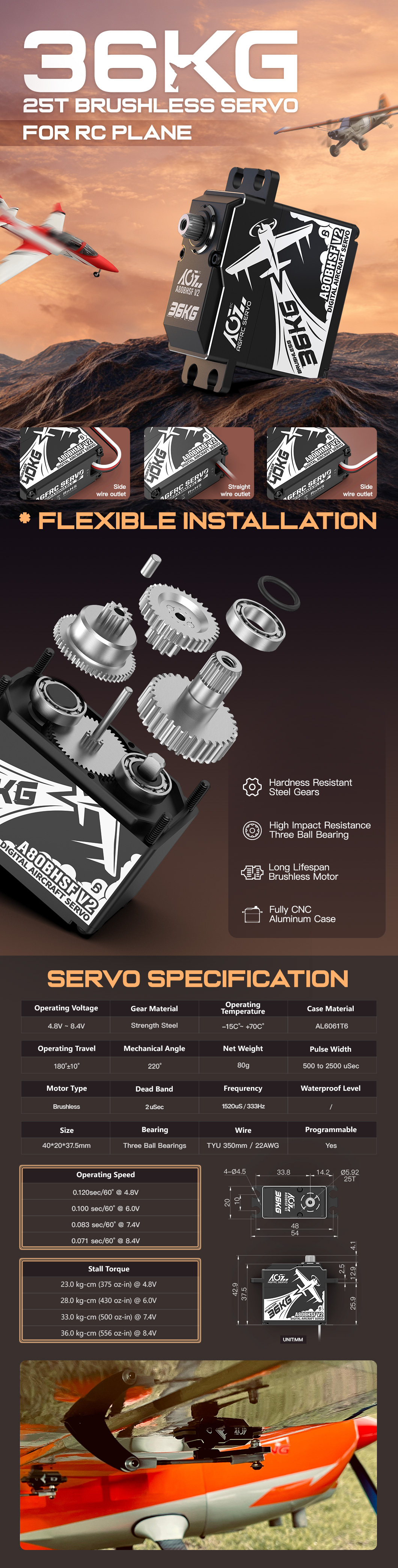

AGFRC A80BHSF V2 36kg Torque 0.071sec Speed Digital 25T Brushless Servo For RC Aircraft

AGFRC A80BHSF V2 36kg Torque 0.071sec Programmable Digital 25T Brushless Standard Servo For Rc Aircraft

A80BHSF V2 is the sister product of A80BHMF with the same internal structure design, but has different parameters. It can work well is determined by its internal structure, using the design of metal three-ball bearings and patented steel and titanium gears. It is a dust-proof and splash-proof servo. Driven 4.8V to 8.4V wide voltage, can reach 36 kg · cm torque and 0.071sec speed at 8.4V, it is a programmable digital fast response servo well fit in RC Aircraft applications.

 ​Main Feature

• Fully CNC Aluminium Case
• Long Performance Life Brushless Motor
• High Precision Metal Three Ball Bearings
• Patented Steel Gear And Titanium Gears Train
• Ideal for 30-200cc Airplane, etc.

 ​Specification

• Model Name: A80BHSF V2
• Operating Voltage: 4.8-8.4V
• Operating speed: 0.120sec/ 60° @ 4.8V
• Operating speed: 0.110sec/60° @ 6.0V
• Operating speed: 0.083sec/60° @ 7.4V
• Operating speed: 0.071sec/60° @ 8.4V
• Stall Torque: 23 kg-cm (319 oz-in) @ 4.8V
• Stall Torque: 28 kg-cm (389 oz-in) @ 6.0V
• Stall Torque: 33 kg-cm (458 oz-in) @ 7.4V
• Stall Torque: 36 kg-cm (500 oz-in) @ 8.4V
• Gear: Strength Steel + Titanium
• Motor: Brushless
• Size: 40*20*37.5mm (1.57 x 0.78 x 1.46 in)
• Weight: 79g
• Connector Wire: TYU 300mm / 22AWG

 Package Includes

📦 Item 1:

• 1 x A80BHSF V2 Servo
• 1 x Accessory Kit

📦 Item 2:

• 1 x A80BHSF V2 Servo
• 1 x Accessory Kit
• 1 x HSS38 Metal Horn

 Download

Spec Datasheet: Download
