A80BHMF V2 CNC 40kg-cm Ultra Torque 0.085sec Speed Brushless 25T RC Servo For Aircraft
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.

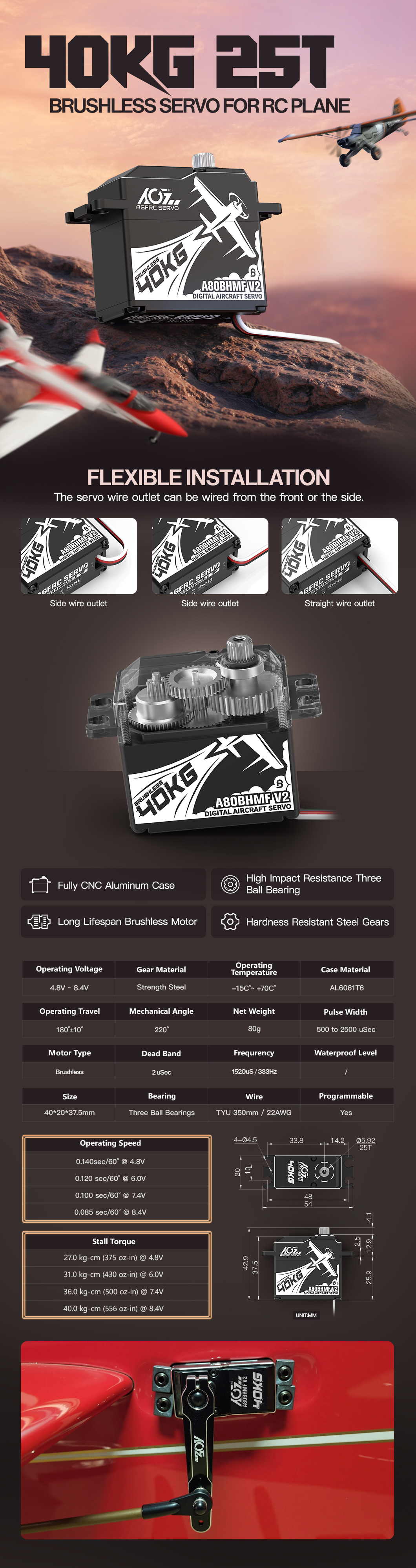

AGFRC A80BHMF V2 CNC 0.085Sec 40kg High Speed Ultra Torque Programmable Brushless 25T RC Servo For Plane
➤ AGFRC A80BHMF V2 is a fully new design 25T standard digital servo perfectly to fit the use of RC Aircraft and Planes applications. This servo uses a titanium gear train, metal three-ball bearings, and a brushless motor for super durability against heavy use. The all-aluminum CNC solid housing structure enhances heat dissipation. The programmable function is available for parameter adjusting, soft start, and inversion optional setting to fit the higher flight requirements.
MAIN FEATURES
➤ Fully CNC Aluminium Case.
➤ Quick Response Brushless Motor.
➤ High Precision Metal Three Ball Bearings.
➤ High Precision Steel Gear And Titanium Gear.
SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Strength Steel+Titanium
Sensor Type
Potentiometer
Motor Type
Brushless
Bearing
3BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
TYU 300mm / 22AWG
Wire Color
Dimensions
40*20*37.5mm
Weight
79g
Operating Speed
0.140 sec/60° @4.8V
0.120 sec/60° @6.0V
0.100 sec/60° @7.4V
0.085 sec/60° @8.4V
Stall Torque
27 kg·cm (375 oz·in) @4.8V
31 kg·cm (430 oz·in) @6.0V
36 kg·cm (500 oz·in) @7.4V
40 kg·cm (556 oz·in) @8.4V
PACKAGE INCLUDES
➤ 1 x A80BHMF V2 Servo
➤ 2 x 25T Plastic Horns
➤ 4 x Mounting Screw
➤ 1 x Horn Screw
➤ 4 x Rubber Pad
➤ 4 x Copper Sleeve
