A24CHR 10mm Steering 0.080Sec 8Kg Torque Fixed Wing Helicopter Remote Control Aircraft 8KG Mini Servo Motor
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.

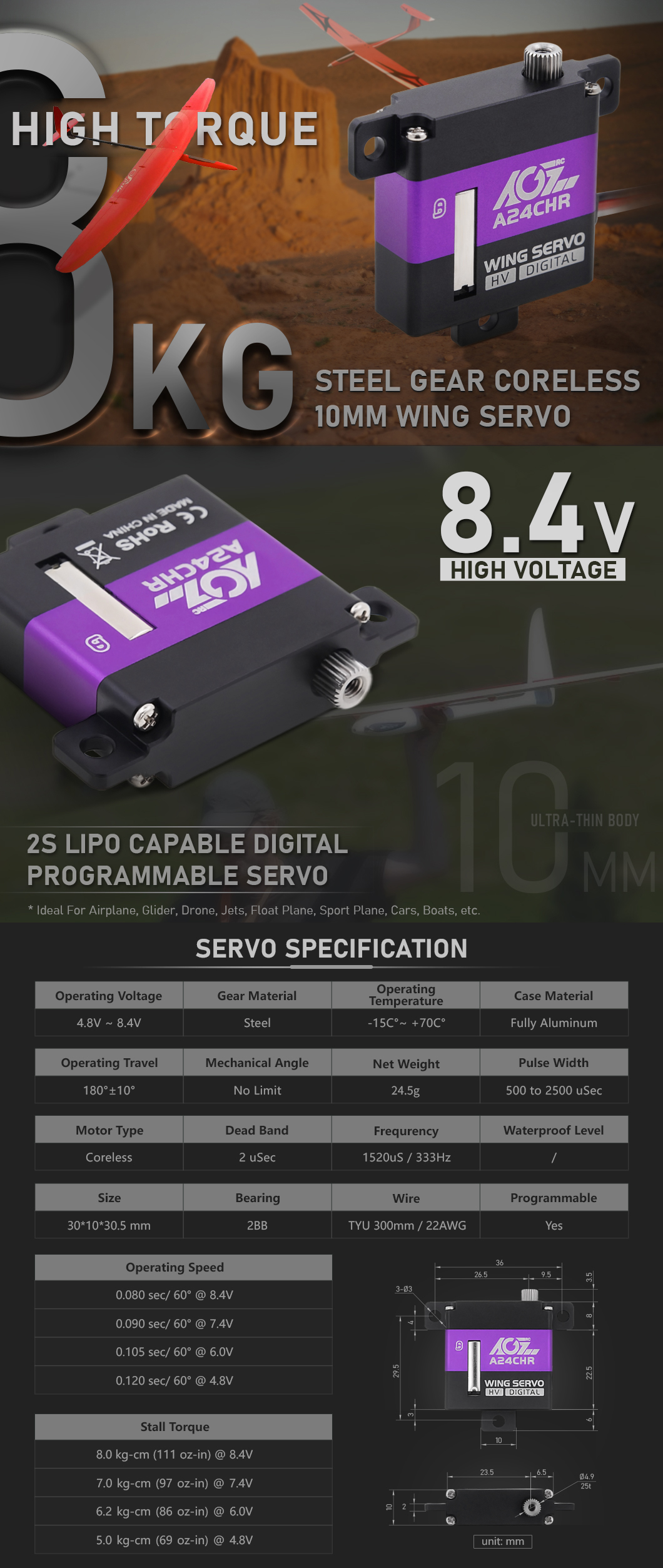

AGFRC A24CHR 0.080Sec 8Kg Torque High Precision Programmable Servo For RC Airplane
➤ As the new partner of the wing servo A24CHR. It features an aluminum CNC housing and a high-efficiency coreless exposed motor design. The ultra-smooth and reliable double bearing and precise potentiometer make the positioning accuracy of the servo more accurate. We will provide more innovative independent designs to provide customers with more experience and fun.
MAIN FEATURES
➤ High Performance Digital servo.
➤ High Efficiency Coreless Motor.
➤ ReliableBall Bearing.
➤ Fully CNC Aluminum Case.
➤ Programmable Digital Circuit.
SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Titanium
Sensor Type
Potentiometer
Motor Type
Coreless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ4.94 mm
Wire
TYU 180mm / 26AWG
Wire Color
Dimensions
30*10*30.5mm
Weight
24.5g
Operating Speed
0.120 sec/60° @4.8V
0.105 sec/60° @6.0V
0.090 sec/60° @7.4V
0.080 sec/60° @8.4V
Stall Torque
5.0 kg·cm (69 oz·in) @4.8V
6.2 kg·cm (86 oz·in) @6.0V
7.0 kg·cm (97 oz·in) @7.4V
8.0 kg·cm (111 oz·in) @8.4V
PACKAGE INCLUDES
➤ 1 x A24CHR Servo
➤ 4 x 25T Plastic Horns
➤ 3 x Mounting Screw
➤ 1 x Horn Screw
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
