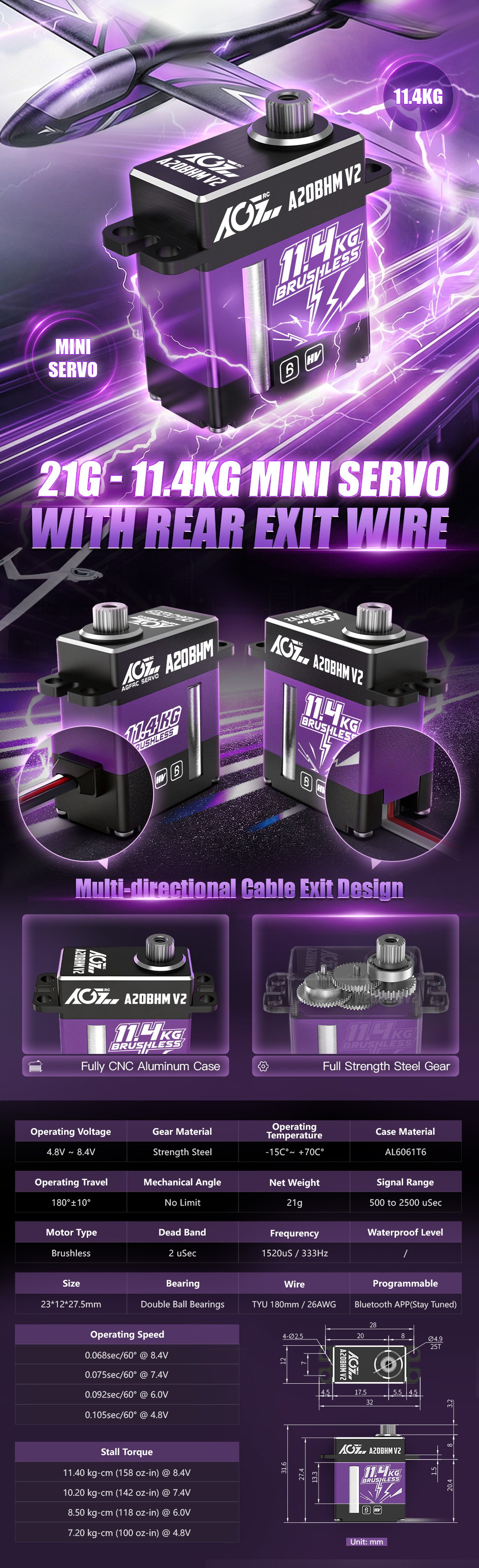

AGFRC A20BHM V2 High-Performance Mini Servo with Multi-directional Cable Exit for Precision RC Applications
Multi-direction Cable Exit Design
High Torque and Speed for Responsive Performance
Durable Construction Titanium Gear
Easy installation and Integration into Existing Setups
AGFRC A20BHM V2 is an upgraded version of A20BHM, featuring a dual-direction cable design. It is a high-performance Mini brushless servo with flexible output lines. It supports both side and bottom output, and is specially designed for use in equipment with strict requirements for installation space. The servo has a torque of 11.4 kg-cm and a high speed of 0.068 at 8.4V. Among servos of the Mini size, it is definitely an excellent choice.
This product is suitable for 1/24 Scale RC Monster Car, SCX10.3, SCX24, Racing Car, etc.
PRODUCT SPECIFICATIONS
Voltage
4.8V ~ 8.4V
Temperature
-15°C ~ +70°C
Signal Mode
Digital
Direction
CCW
Pulse Width
500 ~ 2500 µSec
Refresh Rate
1520 µS / 333Hz
Programmable
Yes
Waterproof
--
Angle
No Limit
Travel
180° ± 10°
Sensor Type
Potentiometer
Motor Type
Brushless
Gear Material
Strength Steel
Case Material
AL6061T6
Gear Material
Strength Steel
Case Material
AL6061T6
Bearing
2BB
Dead Band
2 µSec
Dimension
23*12*27.5 mm
Motor Type
Brushless
Wire
TYU 180mm / 26AWG
Wire Color
⚫️  🔴  ⚪️
Operating Speed
0.105 sec/60° @4.8V
0.092 sec/60° @6.0V
0.075 sec/60° @7.4V
0.068 sec/60° @8.4V
Stall Torque
7.2 kg·cm (100 oz·in) @4.8V
8.5 kg·cm (118 oz·in) @6.0V
10.2 kg·cm (142 oz·in) @7.4V
11.4 kg·cm (158 oz·in) @8.4V

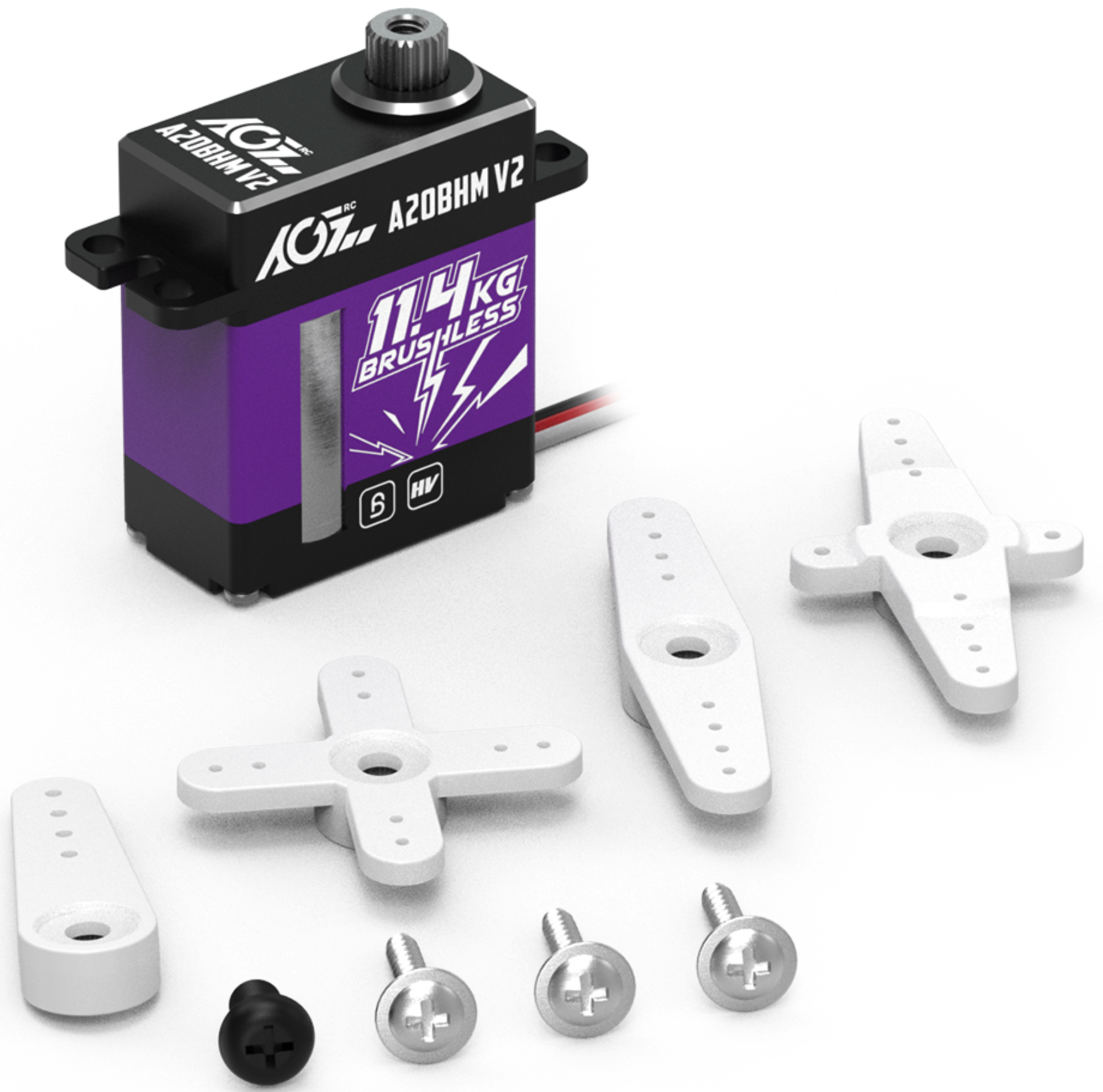

PACKAGE INCLUDES
Servo
1 x A20BHM V2 Servo
Plastic Horn
4 x 25T Plastic Horn
Screw
3 x Mounting Screw
1 x Servo Horn Screw
