A20BHM V2 0.068Sec 11.4Kg High Speed Brushless Programmable Servo With Multi-directional Cable Exit

$79.99 piece
200items available

With sufficient stock, packages will be shipped within 2 working days.

Insufficient stock, we will inform you as soon as the lead time is confirmed.

The package is expected to be delivered within 4 - 9 days after shipment.

Contact Us

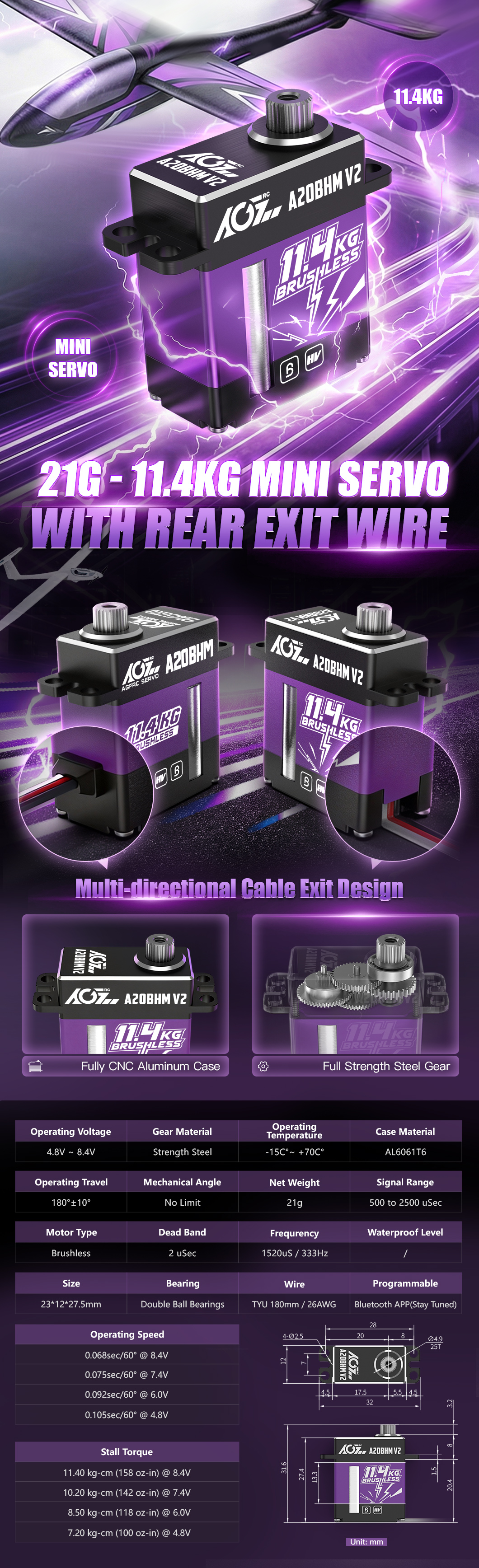

AGFRC A20BHM V2 0.068Sec 11.4Kg High-Performance Mini Servo with Multi-directional Cable Exit for Precision RC Applications
➤ AGFRC A20BHM V2 is an upgraded version of A20BHM, featuring a dual-direction cable design. It is a high-performance Mini brushless servo with flexible output lines. It supports both side and bottom output, and is specially designed for use in equipment with strict requirements for installation space. The servo has a torque of 11.4 kg-cm and a high speed of 0.068 at 8.4V. Among servos of the Mini size, it is definitely an excellent choice.
MAIN FEATURES
➤ Multi-direction Cable Exit Design.
➤ High Torque And Speed For Responsive Performance.
➤ Durable Construction Titanium Gear.
➤ Easy installation and Integration into Existing Setups.
➤ Low noise and minimal electrical interference.
SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Strength Steel
Sensor Type
Potentiometer
Motor Type
Brushless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ4.94 mm
Wire
TYU 180mm / 26AWG
Wire Color



Dimensions
23*12*27.5mm
Weight
21g
Operating Speed
0.105 sec/60° @4.8V
0.092 sec/60° @6.0V
0.075 sec/60° @7.4V
0.068 sec/60° @8.4V
Stall Torque
7.2 kg·cm (100 oz·in) @4.8V
8.5 kg·cm (118 oz·in) @6.0V
10.2 kg·cm (142 oz·in) @7.4V
11.4 kg·cm (158 oz·in) @8.4V
PACKAGE INCLUDES
➤ 1 x A20BHM V2 Servo
➤ 4 x 25T Plastic Horns
➤ 3 x Mounting Screw
➤ 1 x Horn Screw
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
Spec Datasheet
Download
Normal Firmware Waiting...
3D File
Download

+
