B53CHN V2 2S HV 20.5KG High Torque 0.06Sec Fast Speed Coreless Motor Standard Digital Servo For RC Car /Jets
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.

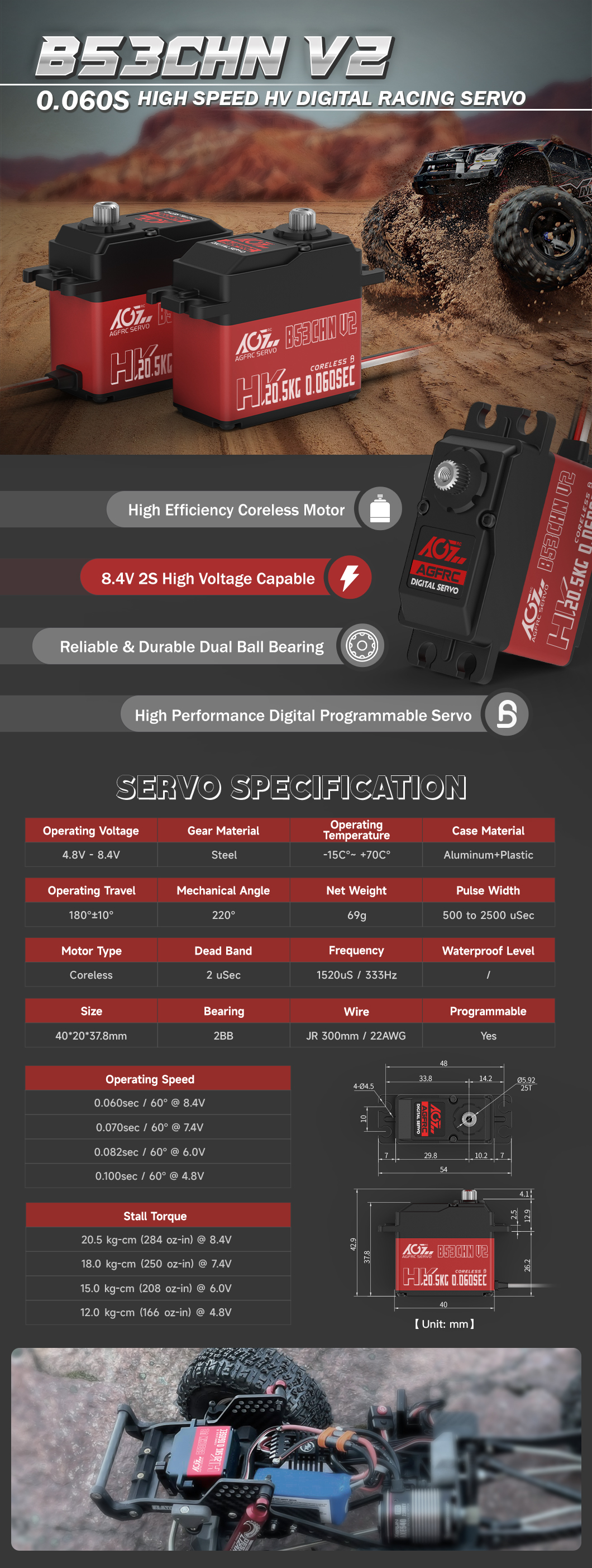

AGFRC 2S HV B53CHN V2 20.5KG High Torque 0.06Sec Fast Speed Coreless Motor Standard Digital Servo For RC Car /Jets
➤ AGFRC B53CHN V2 is a high voltage digital affordable coreless standard servo. Its max torque can reach 20.5KG and fastest speed can reach 0.06Sec at 8.4V voltage. If you want fast speed, It will be a good choice. The newly upgraded steel gears and long-life coreless motor make the servo work more stable and reliable. Its case is made of dust-proof and splash-proof medium aluminum. In addition, it can also be used with 25T aluminum servo horn and programming card.
MAIN FEATURES
➤ High Precision Steel Gears.
➤ High Quality Coreless Motor.
➤ Ultra-Smooth Double Bearings.
➤ Aluminium Middle Case.
➤ Supports Programmable Functions.
➤ Ideal for 1/10 RC Car, Monster Truck, Spartan Boat, 1/12 On Road, Truck, Buggy, Crawler, Airplane, Jet, Helicopter and Engine etc.
SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum + Plastic
Gear Material
Strength Steel
Sensor Type
Potentiometer
Motor Type
Coreless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
JR 360mm / 22AWG
Wire Color
Dimensions
40*20*37.5mm
Weight
69g
Operating Speed
0.100 sec/60° @4.8V
0.082 sec/60° @6.0V
0.070 sec/60° @7.4V
0.060 sec/60° @8.4V
Stall Torque
12.5 kg·cm (166 oz·in) @4.8V
15.5 kg·cm (208 oz·in) @6.0V
18.5 kg·cm (250 oz·in) @7.4V
20.5 kg·cm (284 oz·in) @8.4V
PACKAGE INCLUDES
➤ 1 x B53CHN V2 Servo
➤ 2 x 25T Plastic Horns
➤ 4 x Mounting Screw
➤ 1 x Horn Screw
➤ 4 x Rubber Pad
➤ 4 x Copper Sleeve
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
