2026 Special Edition SA53BULW 0.080Sec 34Kg High Speed Torque Magner Angle Brushless Smart Servo For 1/8 1/10 RC Model
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.

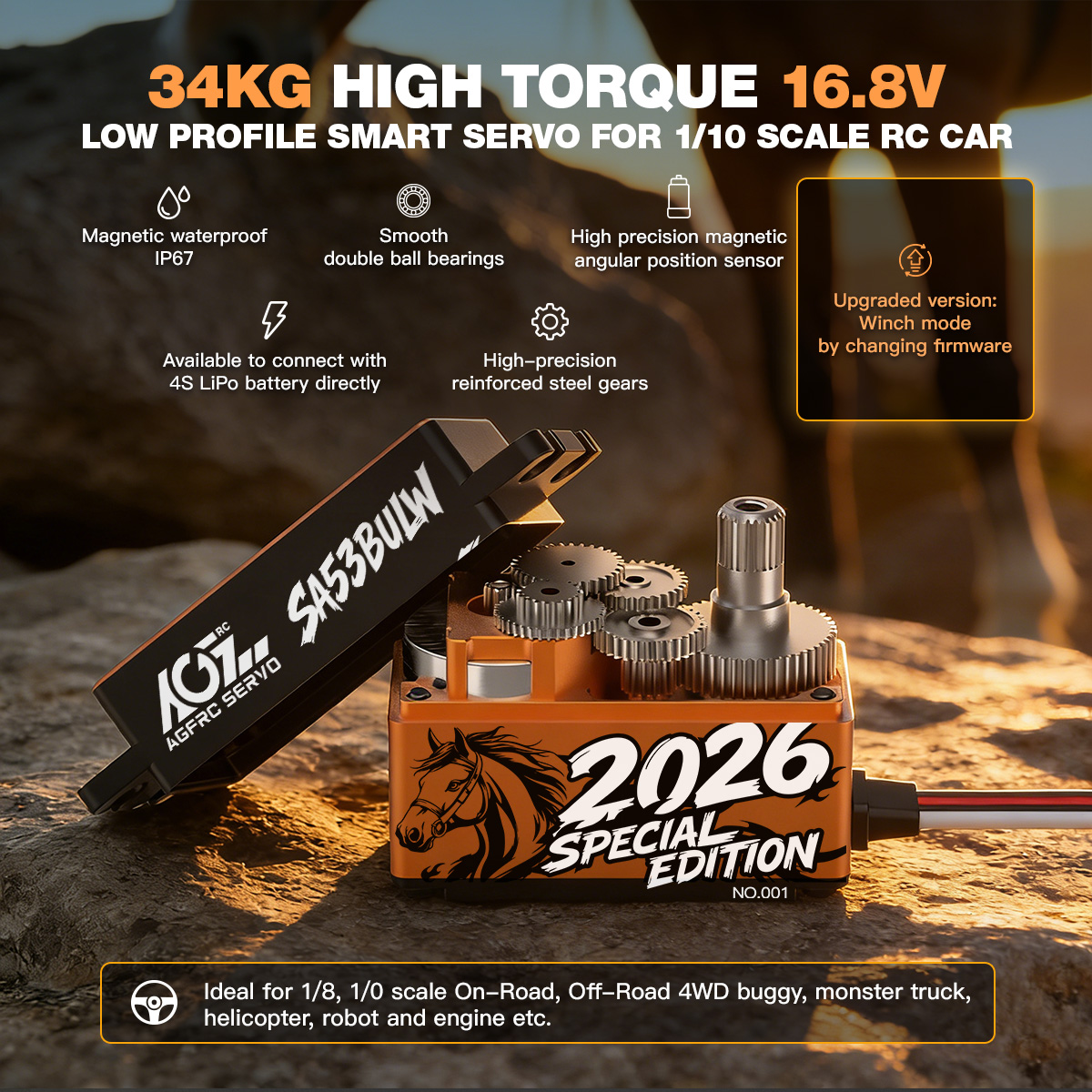

AGFRC 2026 Special Edition SA53BULW Waterproof 0.080Sec High Speed 34Kg Torque Magnet Angle Servo For 1/8 1/10 Rc Model
➤ The SA53BULW is also a budget-friendly server, specifically designed for beginners and enthusiasts seeking a lower-priced version. It adopts a dust-proof and splash-proof CNC housing design. The magnetic sensor is waterproof to IP67 level and can be used in harsh environments such as rainy days, mud, sand dunes, snow, streams and dampness.
➤ The neat and wear-resistant 4-pin wire can be directly connected to 3S or 4S LiPo batteries. It features an ultra-high torque of 34KG and a fast speed of 16.8V in 0.080 seconds. The long-life brushless motor, in combination with reinforced steel gears, operates more efficiently, precisely and smoothly. Of course, custom parameter programming is also an indispensable feature.
MAIN FEATURES
➤ The Maximum Voltage Can Reach 4S.
➤ High Quality Long Life Span Brushless Motor.
➤ Upgraded Neat And Wear-Resistant 4 PIN Wire.
➤ Dust-Proof And Splash-Proof CNC Shell Design.
➤ Silky Smooth Double Ball Bearings.
➤ High-Precision Reinforced Steel Gears.
➤ High Accuracy Magnetic Sensor Waterproof IP67.
➤ Supports Programmable Digital Circuits.
➤ Design for 1/8, 1/10 scale on-road, off-road, rock crawler, monster truck, boat, airplane, and engine, etc.
SPECIFICATIONS
Operating Voltage
7.4V - 17.0V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Strength Steel
Sensor Type
Magnetic Servo
Motor Type
Brushless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
TYU+JST 300mm / 26AWG
Wire Color
Dimensions
40.8*20.2*30.1mm
Weight
66.5g
Operating Speed
0.105 sec/60° @12.0V
0.092 sec/60° @14.4V
0.085 sec/60° @16.0V
0.080 sec/60° @16.8V
Stall Torque
26.0 kg·cm (361 oz·in) @12.0V
30.0 kg·cm (417 oz·in) @14.4V
33.0 kg·cm (458 oz·in) @16.0V
34.0 kg·cm (472 oz·in) @16.8V

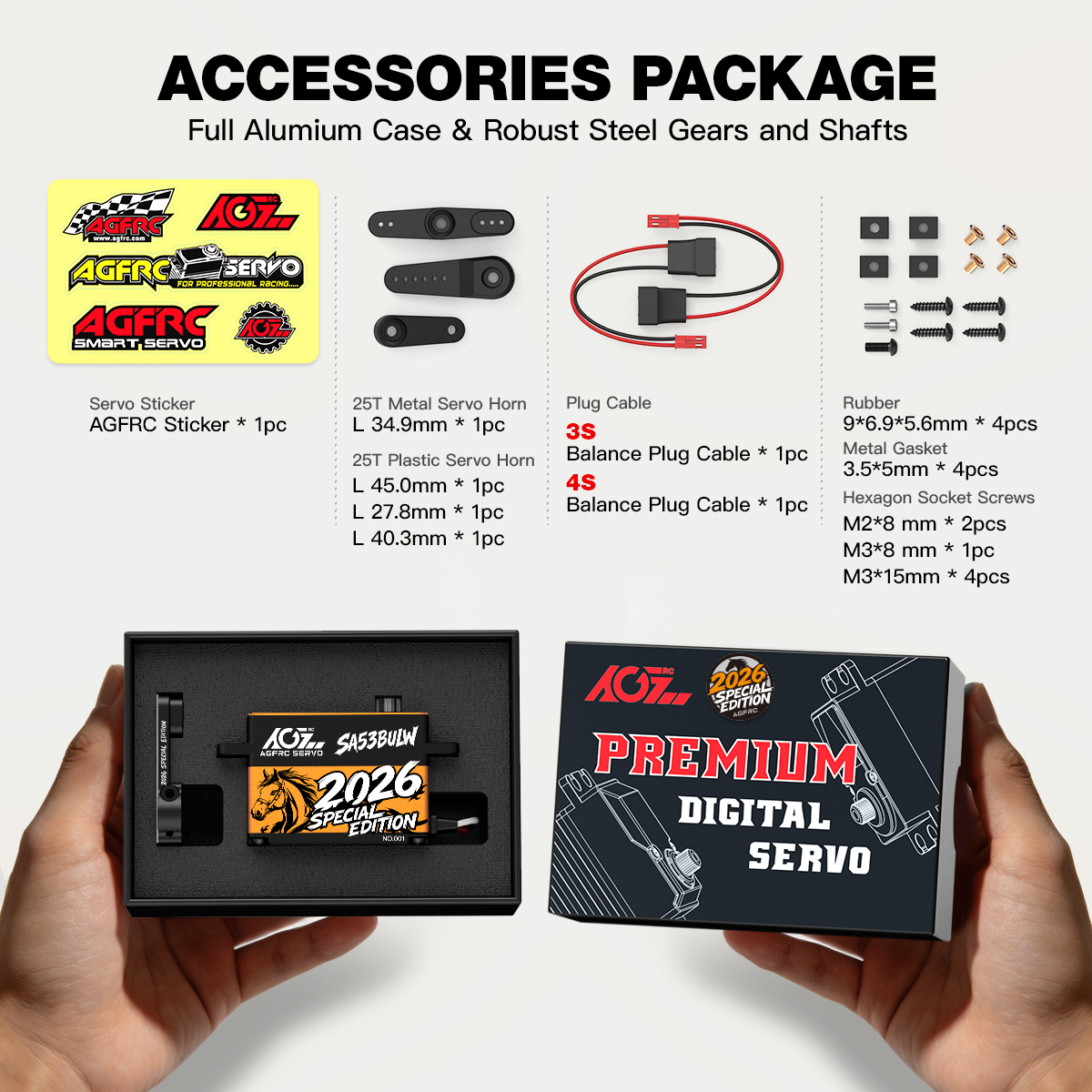

PACKAGE INCLUDES
➤ 1 x SA53BULW Servo
➤ 1 x 25T Metal Horns
➤ 3 x 25T Plastic Horn
➤ 4 x Mounting Screw
➤ 3 x Horn Screw
➤ 4 x Rubber Pad
➤ 4 x Copper Sleeve
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
