AGFRC
2026 Special Edition A86BHM 55Kg High Torque 0.110Sec Speed For 1/8 1/10 RC Model
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.
AGFRC 54Kg High Torque Brushless Super Powerful Digital Servo Motor For RC Cars/Large Size Helicopter (2026 Special A86BHM)
➤ AGFRC A86BHM Standard Servo, with the help of the long lifespan Brushless Motor, which can reach almost 55 kg·cm super torque with a speed of 0.110sec at 8.4V. This servo is made in a heat sink case design for fast heat dissipation, added extra patent steel gears, super smooth three ball bearings, and a strengthened high chrome 2mm steel shaft for high precision digital controlling. It is a high-performance programmable standard digital servo perfect for scale crawlers, 1/10 & 1/8 scale buggies, trucks, and cars. If you need the waterproof version for other applications, please go for the A86BHMW Servo.

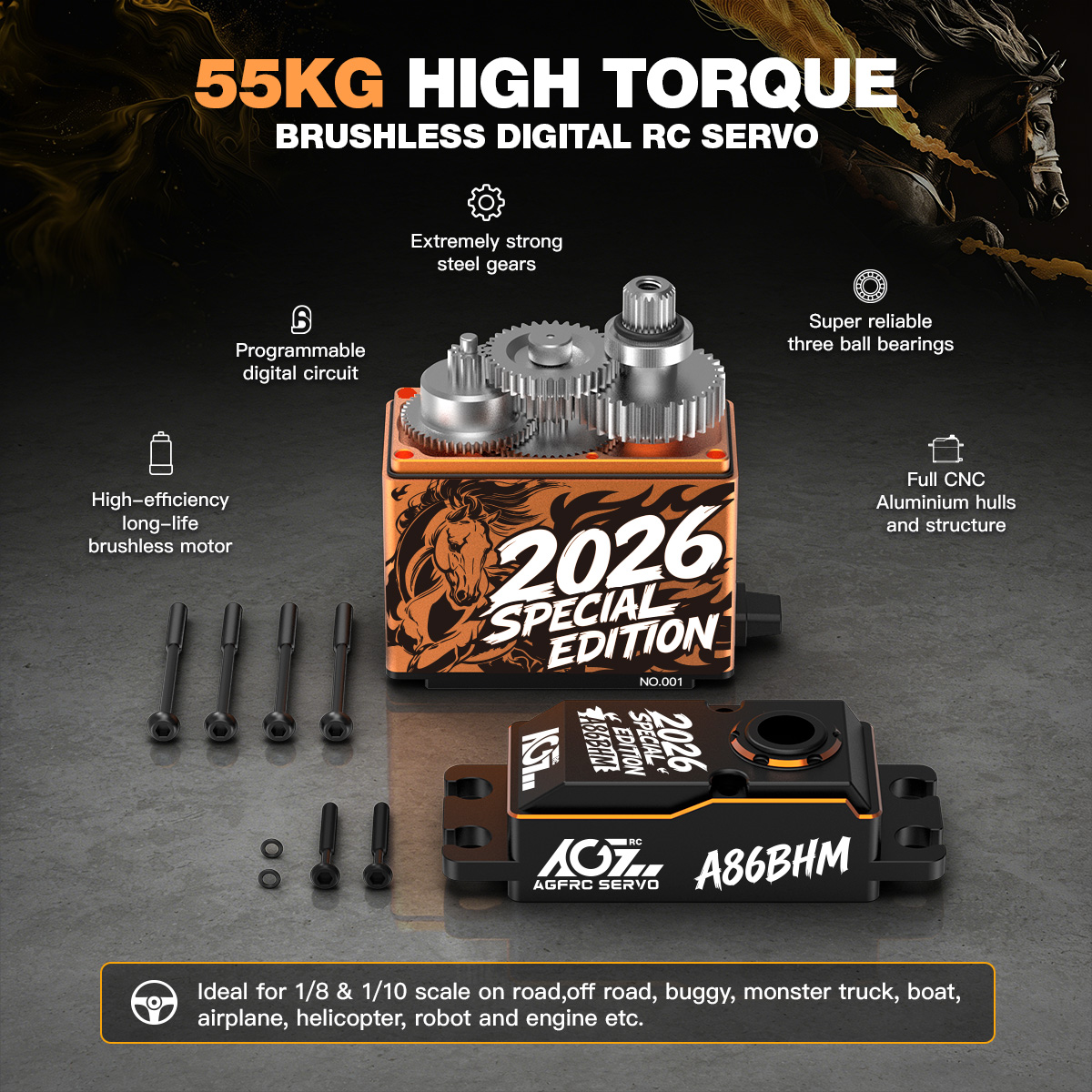

MAIN FEATURES
➤ Ultra light unique design with heat sink maching.
➤ High performance digital servo.
➤ Strengthen high chrome steel shaft.
➤ Extra strong patent steel gears.
➤ Super strong three ball bearings.
➤ High effiviency brushless motor.
➤ Programmable Digital Circuit.
➤ Design for 1/8, 1/10 scale on-road, off-road, buggy, monster truck, boat, airplane, helicopter, and engine, etc.

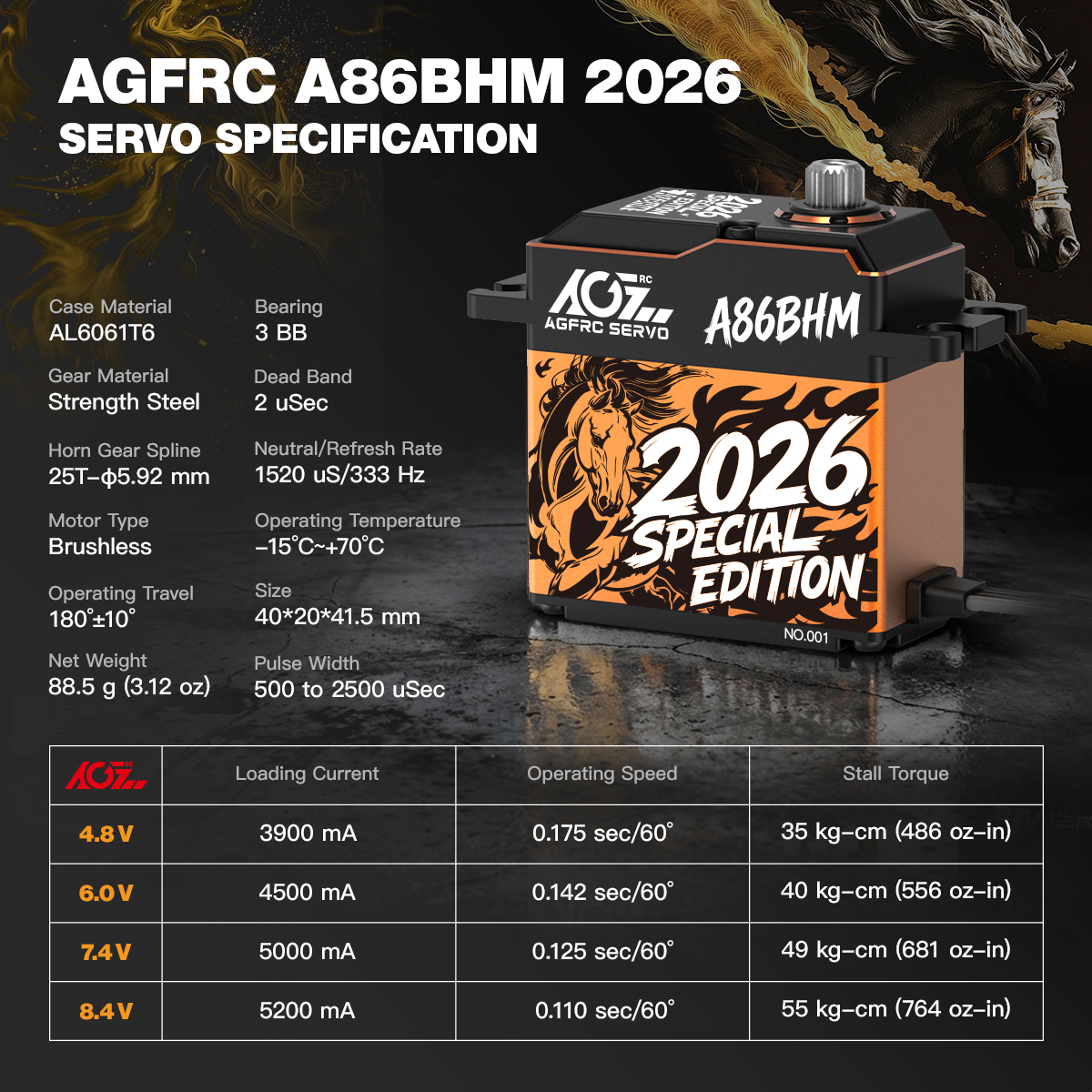

SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Strength Steel
Sensor Type
Potentiometer
Motor Type
Brushless
Bearing
3BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
TYU 300mm / 22AWG
Wire Color
Dimensions
40*20*41.5mm
Weight
88.5g
Operating Speed
0.175 sec/60° @4.8V
0.142 sec/60° @6.0V
0.125 sec/60° @7.4V
0.110 sec/60° @8.4V
Stall Torque
35 kg·cm (486 oz·in) @4.8V
40 kg·cm (556 oz·in) @6.0V
49 kg·cm (681 oz·in) @7.4V
55 kg·cm (764 oz·in) @8.4V

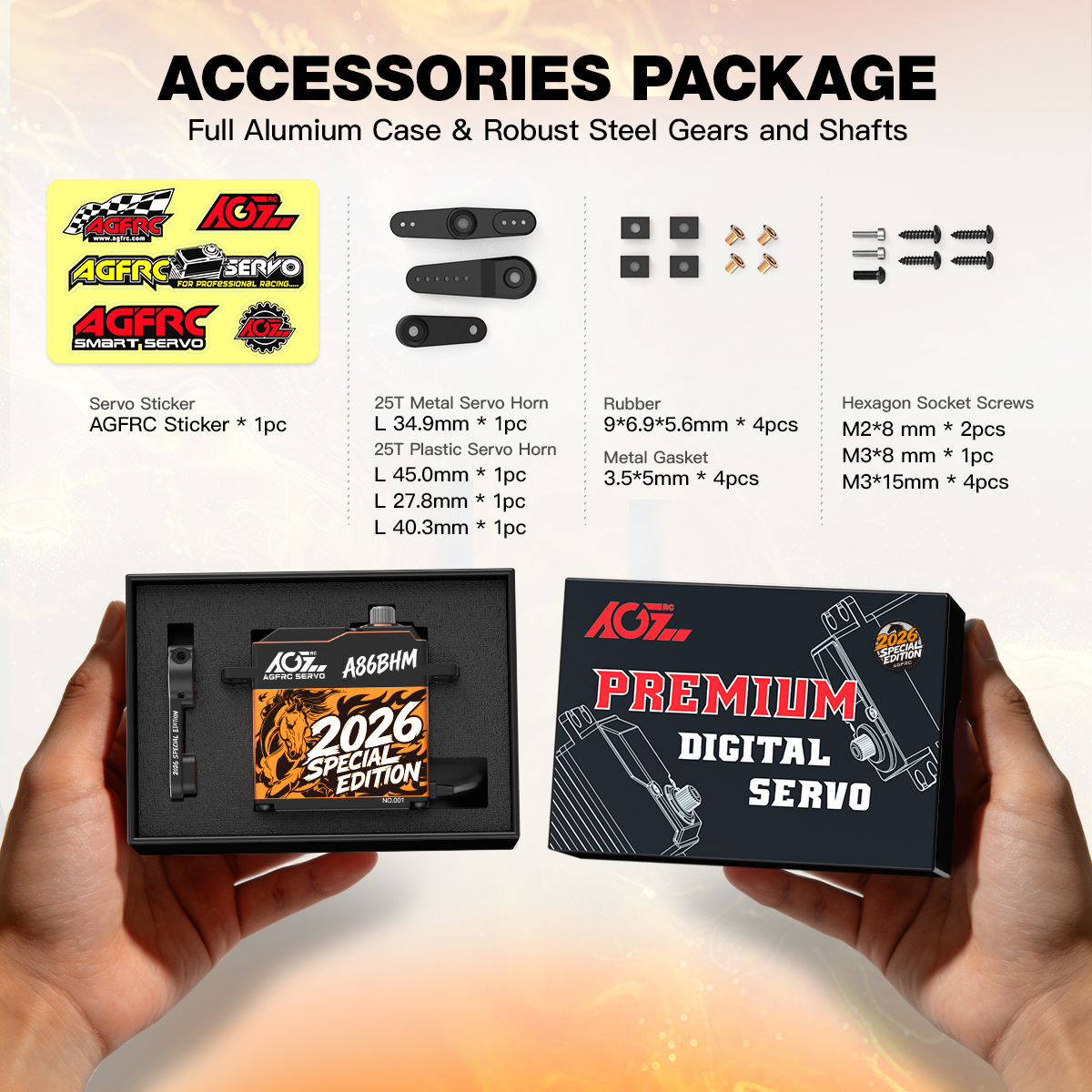

PACKAGE INCLUDES
➤ 1 x 2026 A86BHM Servo
➤ 1 x 25T Metal Horn
➤ 3 x 25T Plastic Horn
➤ 4 x Mounting Screw
➤ 3 x Horn Screw
➤ 4 x Rubber Pad
➤ 4 x Copper Sleeve
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
