2026 Special Edition A280BHLW V2 165Kg High Torque Large Size Servo For 1/5 RC Model
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.
AGFRC 165Kg High Torque 0.160 Speed Large Size Servo For 1/5 RC Model (2026 Special A280BHLW V2)
➤ The A280BHLW V2 is a rugged, high-performance digital brushless servo designed for extreme conditions. Operating reliably from -30°C to +70°C, it delivers exceptional cold-weather performance without compromising responsiveness. Featuring a wide voltage range (4.8V–8.4V) and a rapid 333Hz refresh rate, it achieves precision control with ultra-fast motion—reaching 0.16 seconds per 60° at 8.4V—and impressive stall torque up to 165.0 kg-cm. Built with eight ball bearings, metal gearing, and IP65/IP67 waterproof options, this servo is engineered for demanding applications in industrial automation, outdoor robotics, and harsh-environment operations.
MAIN FEATURES
➤ Ultra-High Torque Output.
➤ High-Speed Performance.
➤ Wide Operating Temperature Range.
➤ Advanced Motor & Drive System.
➤ High-Refresh Digital Control.
➤ Programmable & Versatile Signal Support.

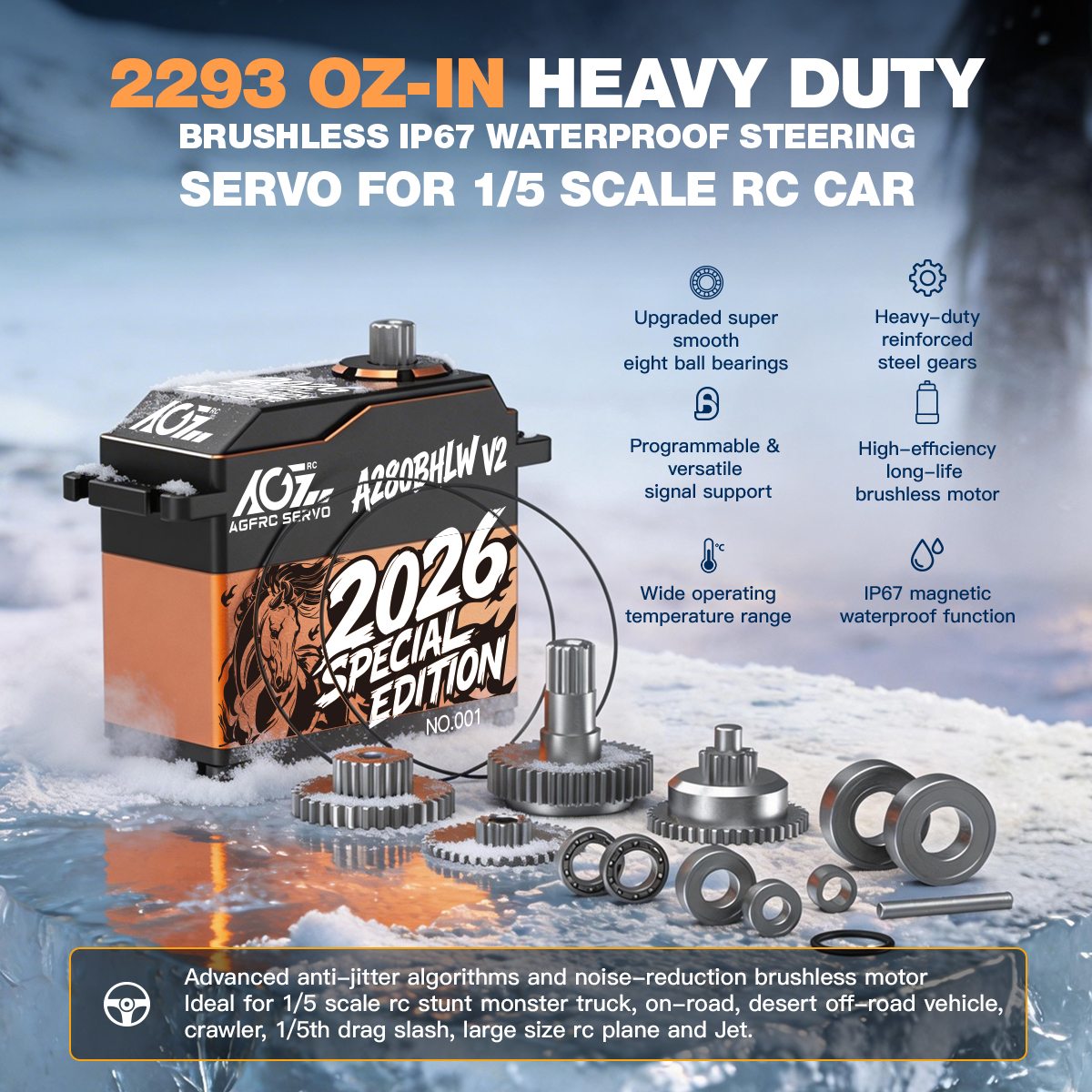

➤ Robust Mechanical Design.

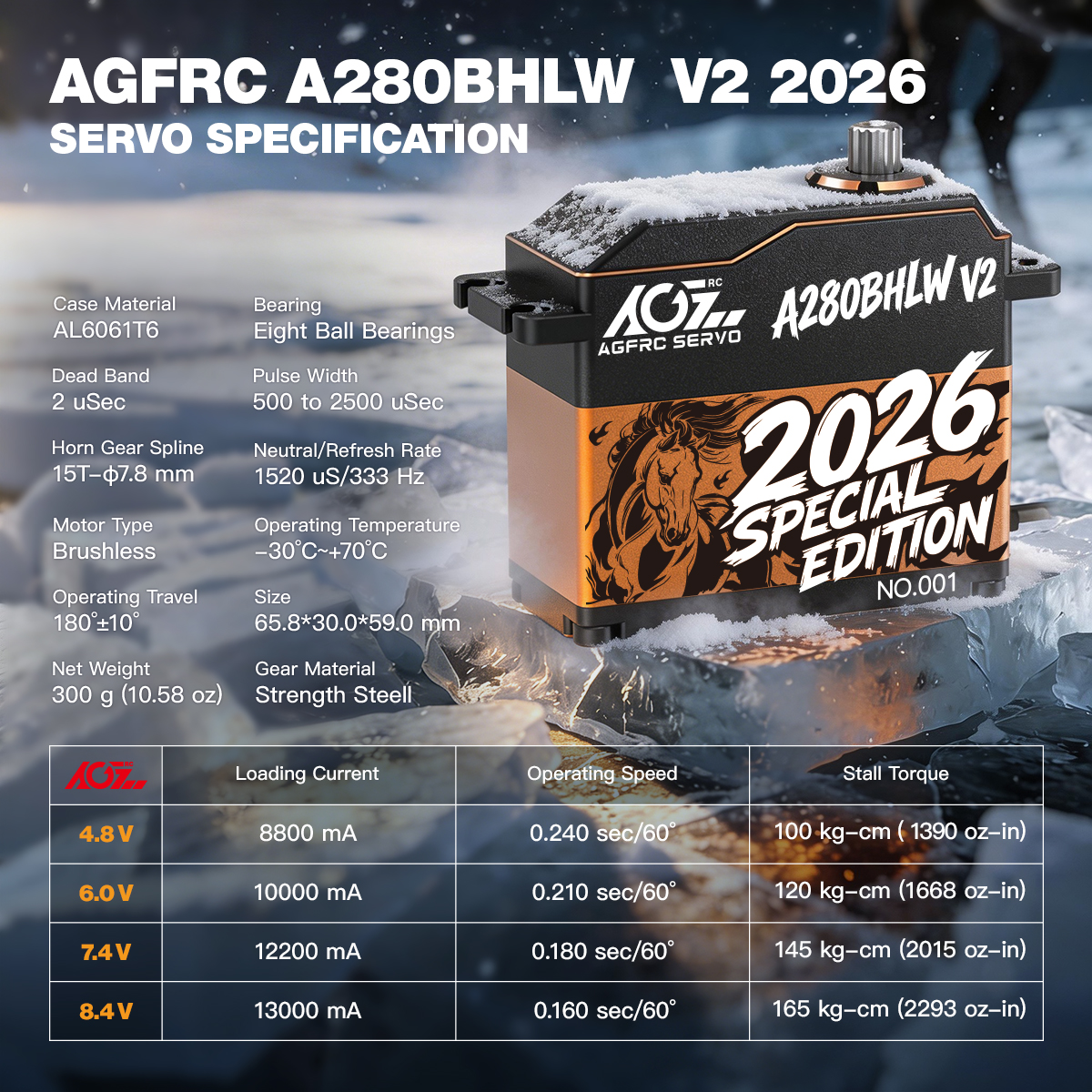

SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-30°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Strength Steel
Sensor Type
Magnetic Servo
Motor Type
Brushless
Bearing
8BB
Direction
CCW
Horn Gear Spline
15T-ɸ7.8 mm
Wire
TYU 300mm / 22AWG
Wire Color
Dimensions
65.8*30.0*59.0mm
Weight
300g
Operating Speed
0.240 sec/60° @12.0V
0.210 sec/60° @14.4V
0.180 sec/60° @16.0V
0.160 sec/60° @16.8V
Stall Torque
100 kg·cm (1390 oz·in) @12.0V
120 kg·cm (1668 oz·in) @14.4V
145 kg·cm (2015 oz·in) @16.0V
165 kg·cm (2293 oz·in) @16.8V

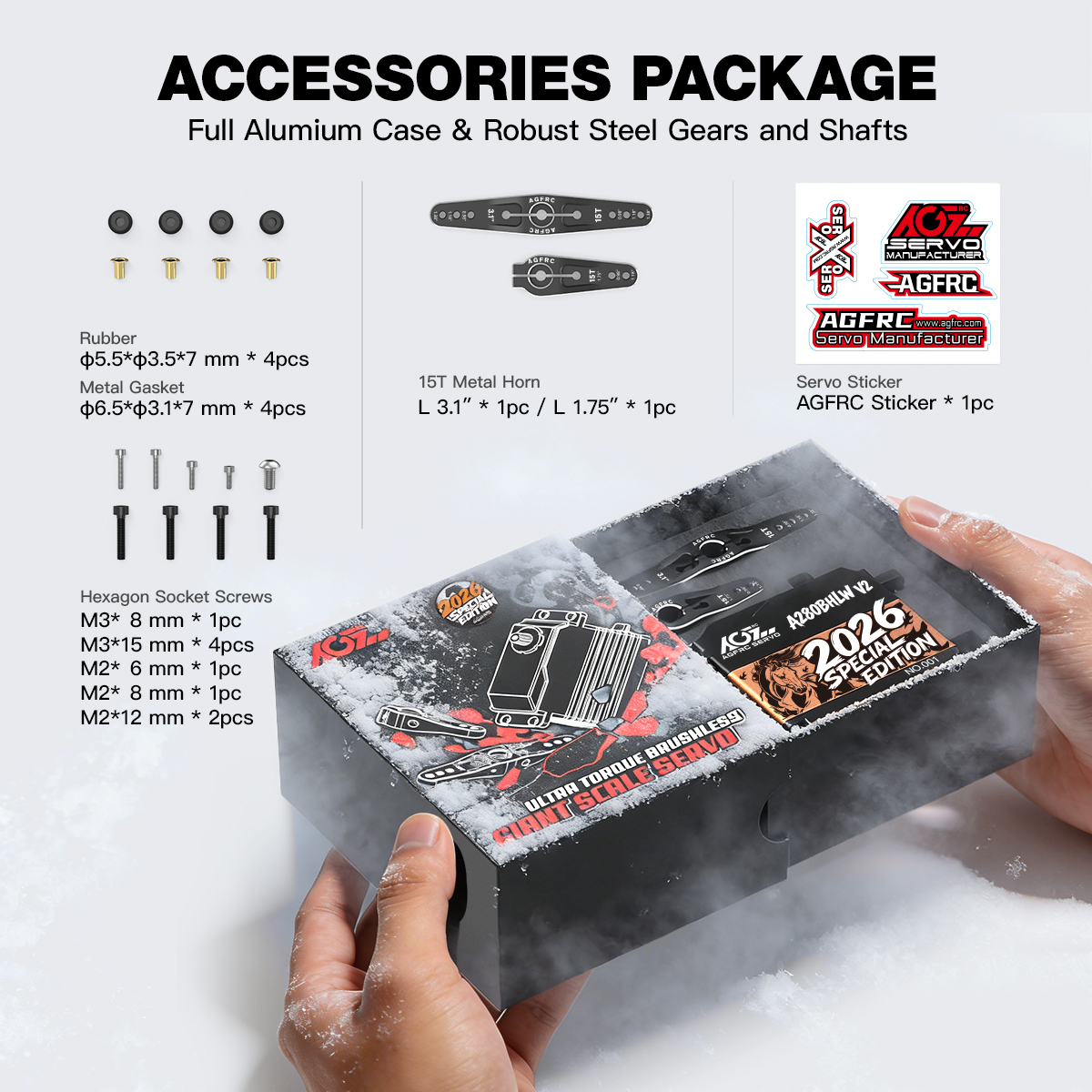

PACKAGE INCLUDES
➤ 1 x 2026 A280BHLW V2 Servo
➤ 1 x 15T Metal Horn
➤ 3 x 15T Plastic Horn
➤ 5 x Mounting Screw
➤ 4 x Horn Screw
➤ 4 x Rubber Pad
➤ 4 x Copper Sleeve
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
