2026 Special Edition SA75BUMW 0.092Sec 62Kg High Speed High Torque Regular And Winch Brushless Waterproof Servo For 1/8 1/10 RC Model
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.
AGFRC 2026 Special Edition Waterproof 62Kg High Torque 0.092Sec Speed Magnet Angle Servo For 1/8 1/10 Rc Model
➤ SA75BUMW is a budget 4s servo which is designed for the beginner and hobbyists seek for lower price version.It adopts dust-proof and splash-proof CNC shell design, and the magnetic sensor waterproof reaches IP67 grade, which can be used for harsh environments such as rainy days, muddy, sand dunes, snow, streams, and humidity. Neat and wear-resistant 4 PIN wires, allow to direct connect with 3S or 4S LiPo battery. Featured 62KG superb high torque and 0.092Sec fast speed at 16.8V. With the cooperation of a long-life brushless motor and reinforced steel gears, the work is more efficient, precise and smooth. Of course, custom parameter programming is also an essential function.
➤ Compared with the A75BUMW servo, the SA75BUMW enables you to switch between winch mode and normal mode.

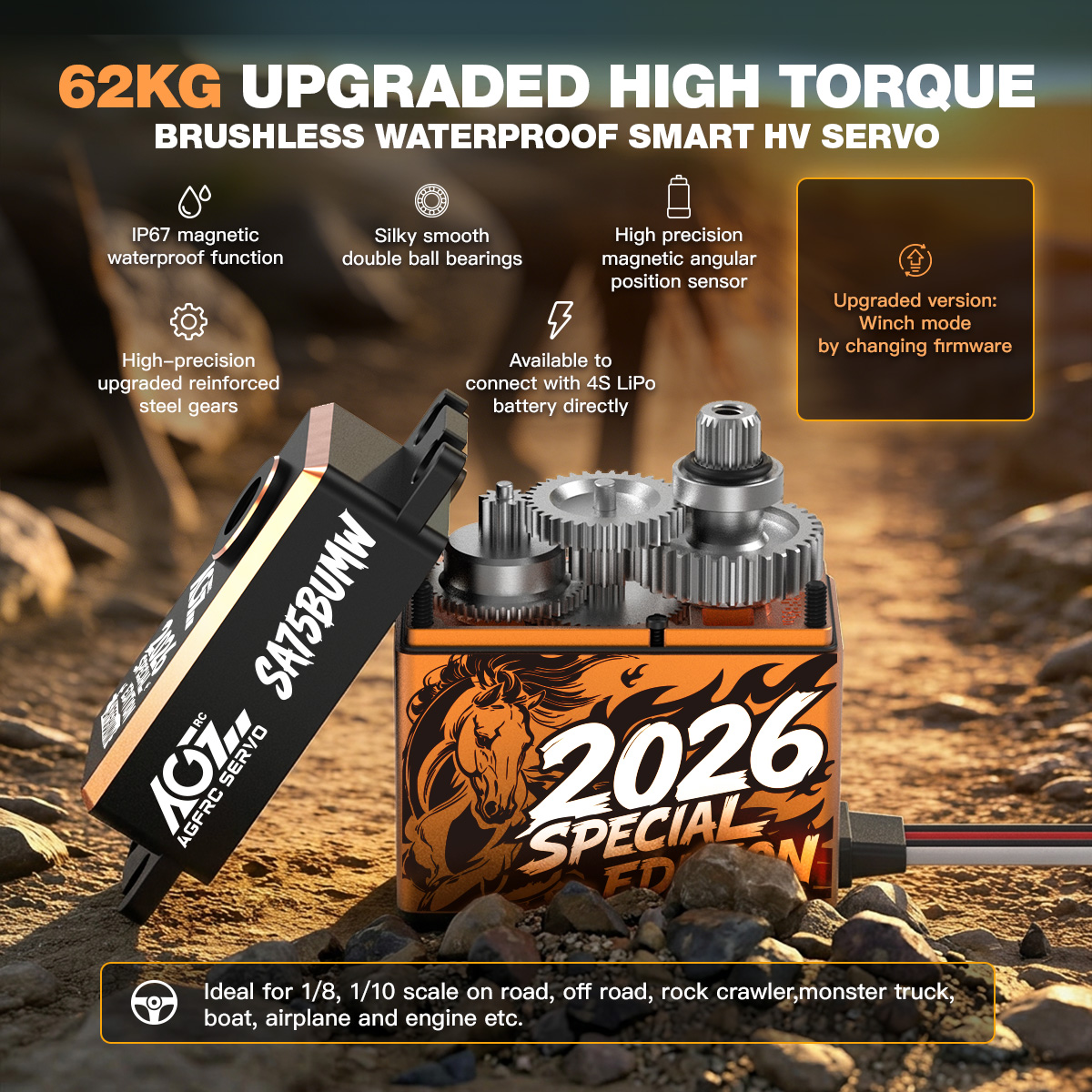

MAIN FEATURES
➤ The Maximum Voltage Can Reach 4S.
➤ High Quality Long Life Span Brushless Motor.
➤ Upgraded Neat And Wear-Resistant 4 PIN Wire.
➤ Dust-Proof And Splash-Proof CNC Shell Design.
➤ Silky Smooth Double Ball Bearings.
➤ High-Precision Reinforced Steel Gears.
➤ High Accuracy Magnetic Sensor Waterproof IP67.
➤ Supports Programmable Digital Circuits.
➤ Design for 1/8, 1/10 scale on-road, off-road, rock crawler, monster truck, boat, airplane, and engine, etc.

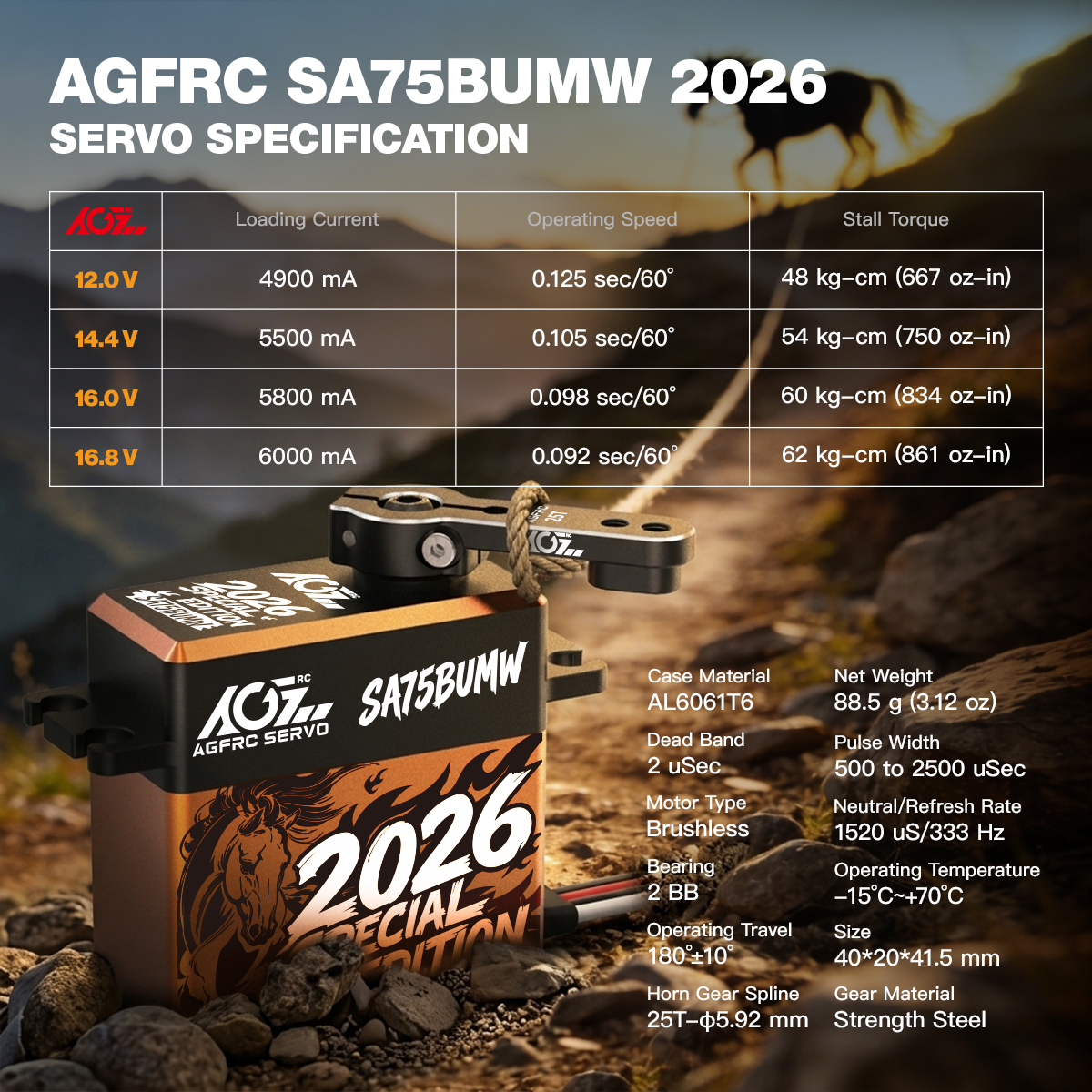

SPECIFICATIONS
Operating Voltage
7.4V - 17.0V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Strength Steel
Sensor Type
Magnetic Servo
Motor Type
Brushless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
TYU+JST 300mm / 26AWG
Wire Color
Dimensions
40*20*41.5mm
Weight
88.5g
Operating Speed
0.125 sec/60° @12.0V
0.105 sec/60° @14.4V
0.098 sec/60° @16.0V
0.092 sec/60° @16.8V
Stall Torque
48.0 kg·cm (667 oz·in) @12.0V
54.0 kg·cm (750 oz·in) @14.4V
60.0 kg·cm (834 oz·in) @16.0V
62.0 kg·cm (861 oz·in) @16.8V

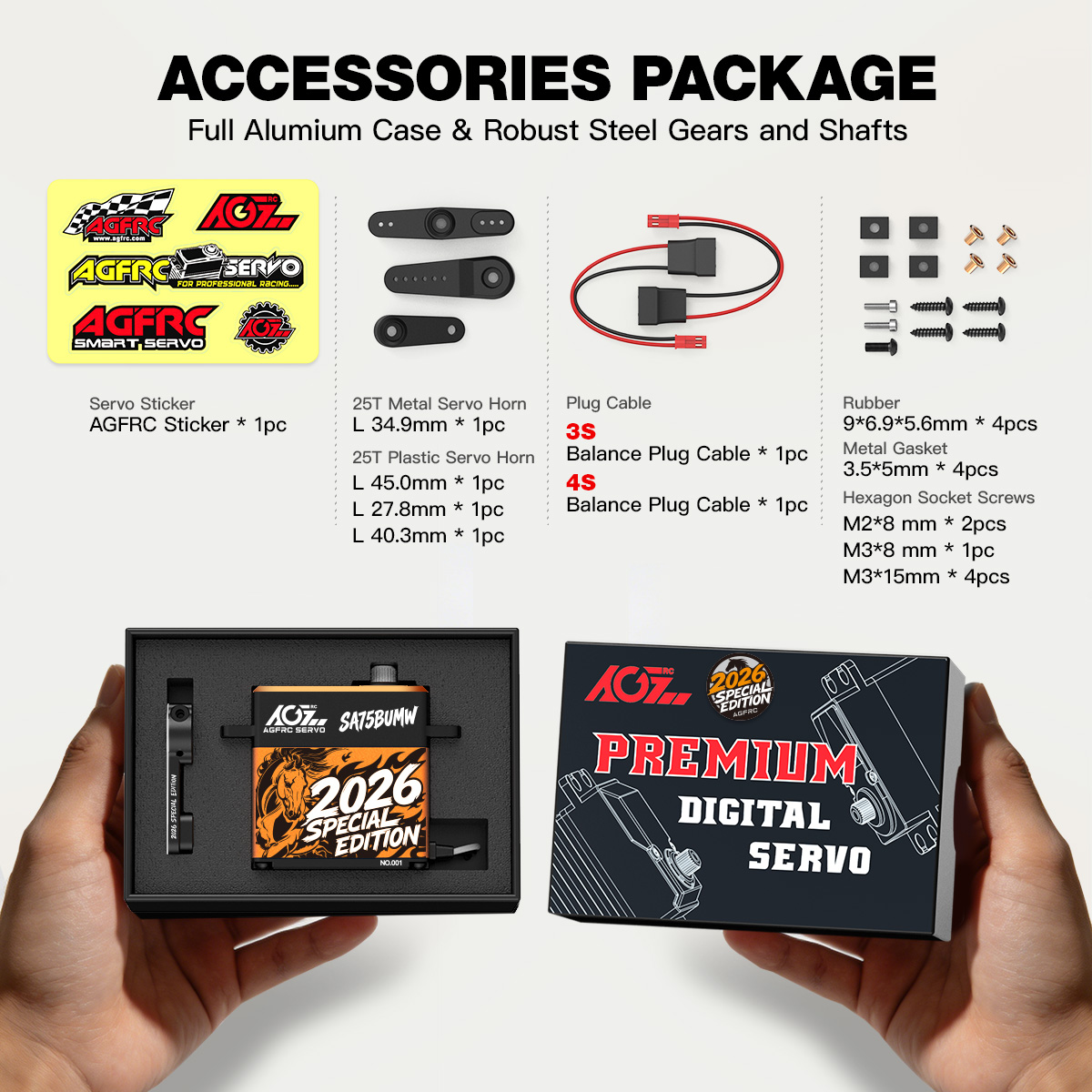

PACKAGE INCLUDES
➤ 1 x SA75BUMW Servo
➤ 1 x 25T Metal Horn
➤ 3 x 25T Plastic Horn
➤ 4 x Mounting Screw
➤ 3 x Horn Screw
➤ 4 x Rubber Pad
➤ 4 x Copper Sleeve
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
