2026 Special Edition A73BHLW V2 40Kg Torque Magnetic Waterproof High Waterproof Programmable Brushless Digital Servo

4 / 5

2026 Special Edition A73BHLW V2 40Kg Torque Magnetic Waterproof High Waterproof Programmable Brushless Digital Servo

With sufficient stock, packages will be shipped within 2 working days.

Insufficient stock, we will inform you as soon as the lead time is confirmed.

The package is expected to be delivered within 4 - 9 days after shipment.

Product Tag:

AGFRC Magnetic Waterproof High 40Kg Torque Waterproof Programmable Brushless Digital Servo (2026 Special A73BHLW V2)

➤ Affordable and practical programmable digital circuit IP67 waterproof standard servo A73BHLW V2 version is newly upgraded. It is more durable to be used in 10th scale rc models in harsh environments such as snow, rain, wet jungle, seaside, sand dunes, and mud.

➤ With these supports, the servos run more reliably and smoothly. In addition, the price of the V2 version is still very affordable; it can not only meet the requirements and applications of most enthusiasts, but also be a budget servo with high cost performance.

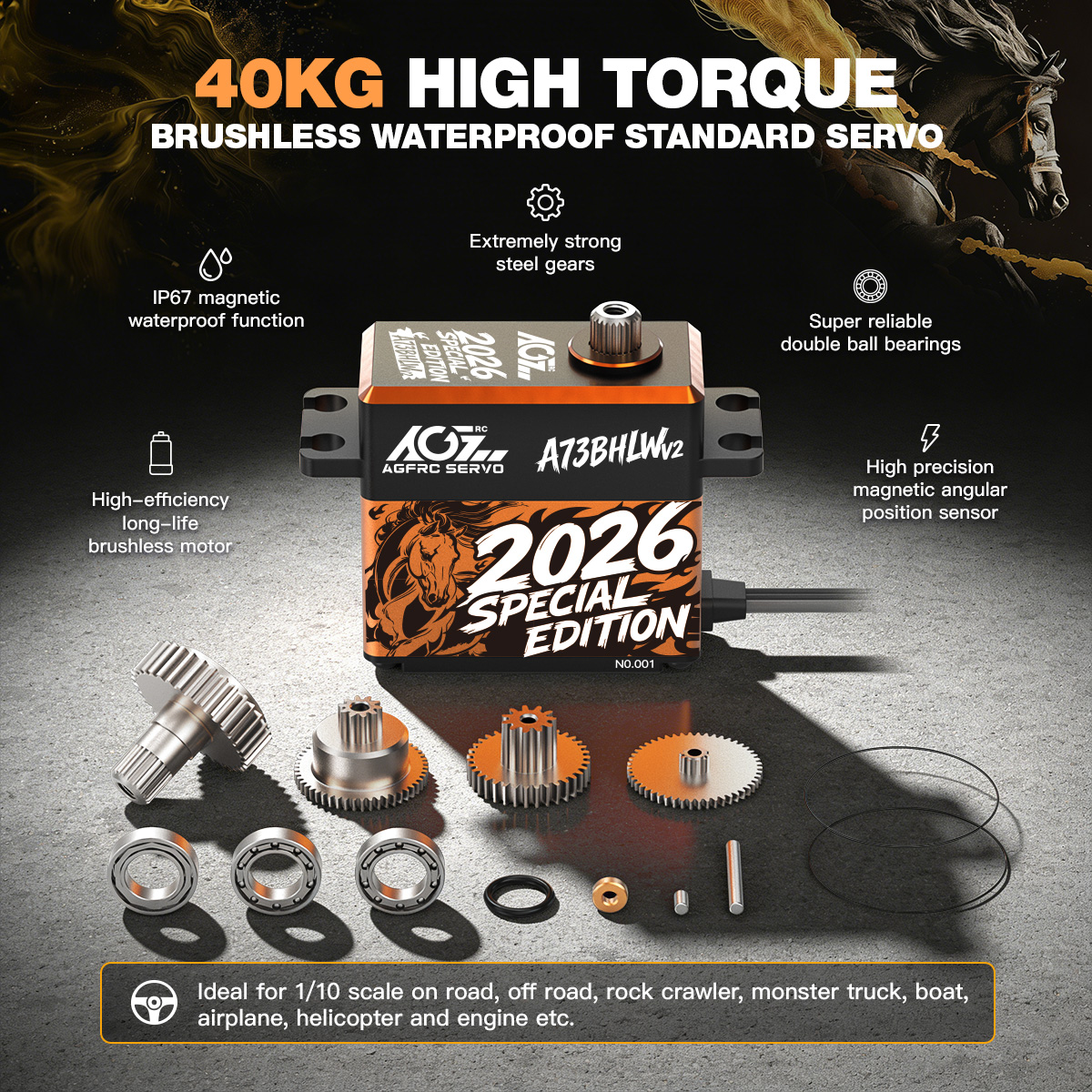

MAIN FEATURES

➤ High Performance Low Profile Digital Servo.

➤ High Precision Steel Gear.

➤ High Quality Brushless Motor.

➤ Full Aluminium Heat Sink Case.

➤ Programmable Digital Circuit.

➤ IP67 Waterproof & Dust-proof.

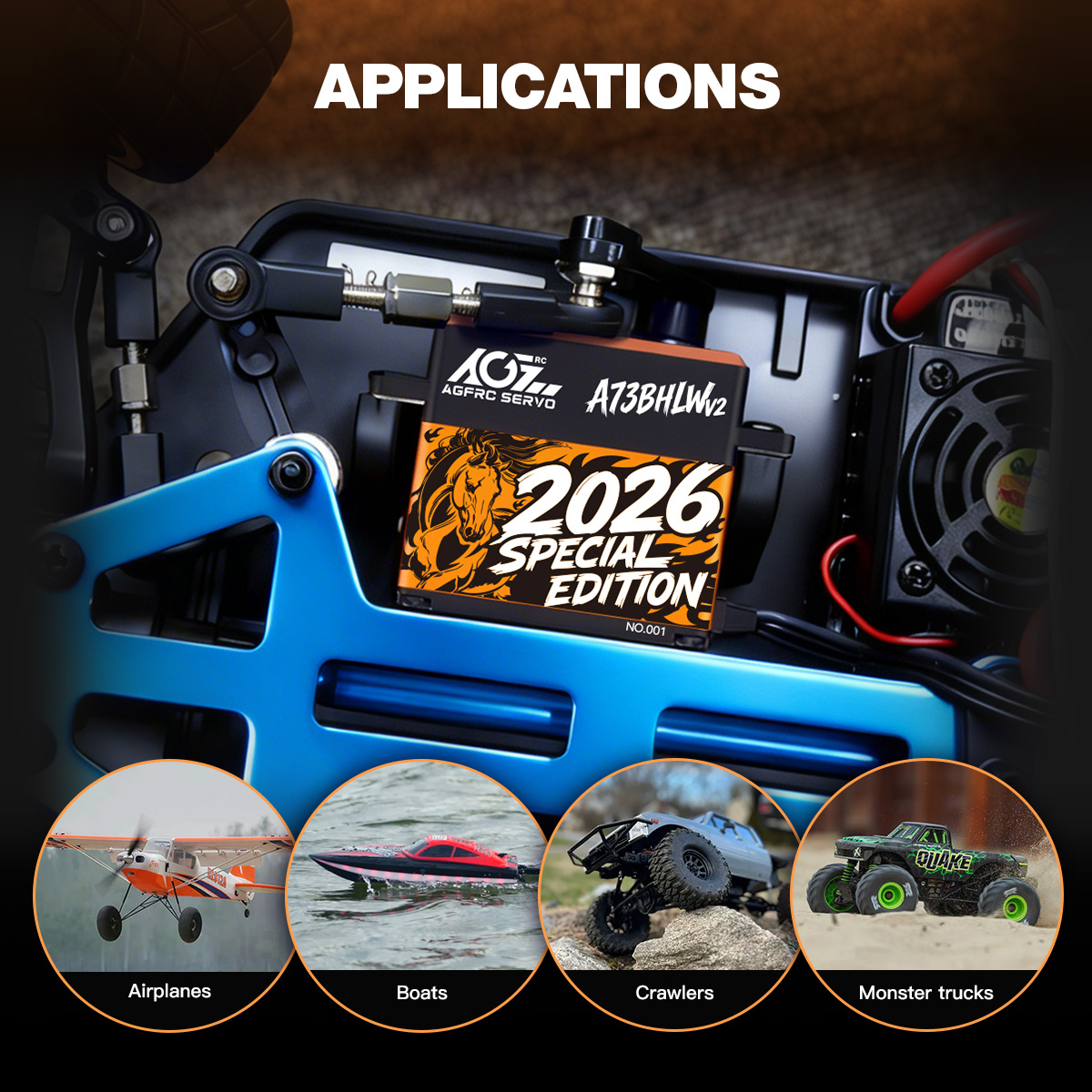

➤ Design for 1/10 scale on-road, off-road, rock crawler, monster truck, boat, airplane, helicopter, and engine, etc.

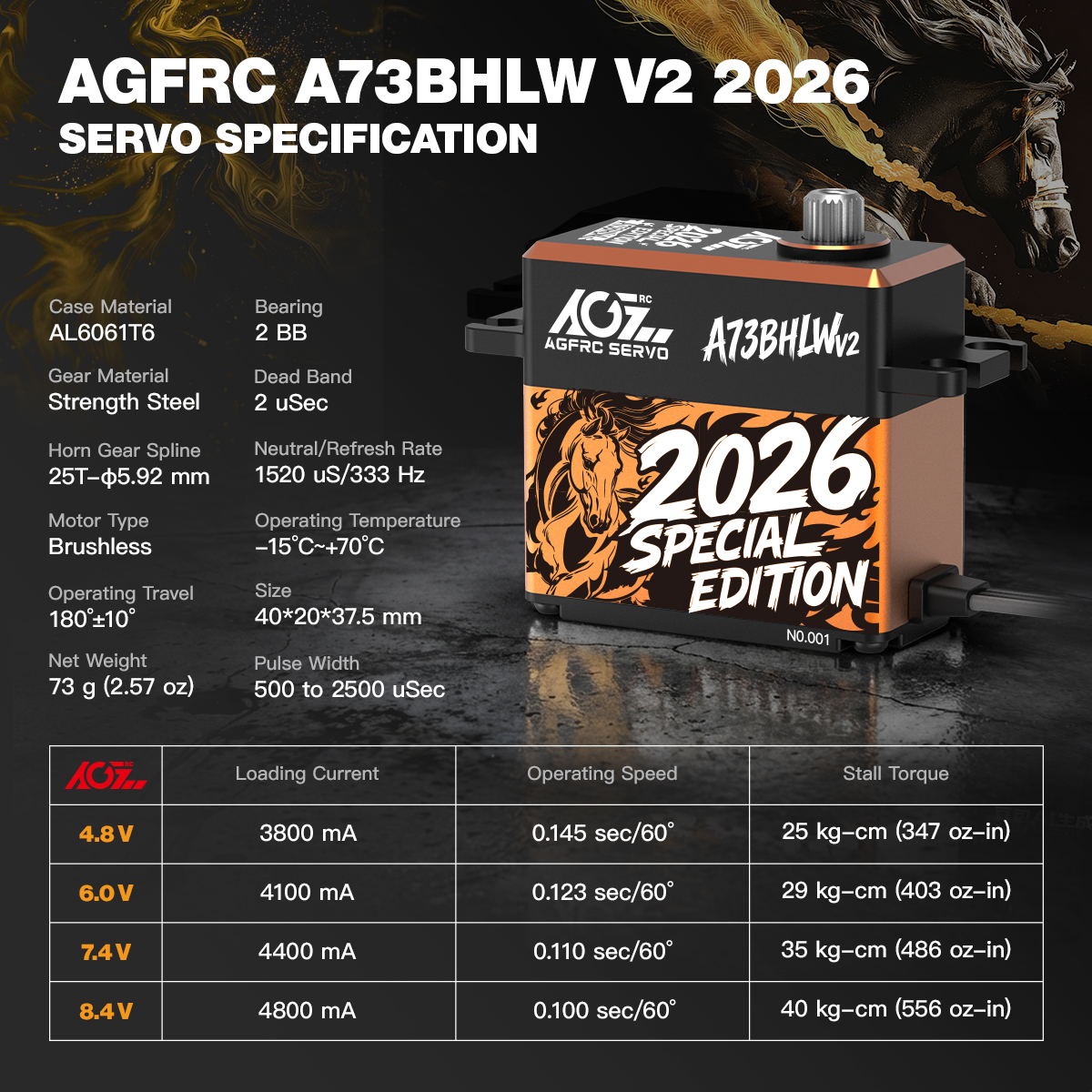

SPECIFICATIONS

Operating Voltage

4.8V - 8.4V

Temperature Range

-15°C - +70°C

Refresh Rate

1520 µS / 333Hz

Travel Angle

180 ± 10°

Programmable

Yes

Case Material

Aluminum

Gear Material

Strength Steel

Sensor Type

Magnetic Sensor

Motor Type

Brushless

Bearing

2BB

Direction

CCW

Horn Gear Spline

25T-ɸ5.92 mm

Wire

TYU 300mm / 22AWG

Wire Color

Dimensions

40*20*37.5mm

Weight

73.5g

Operating Speed

0.145 sec/60° @4.8V

0.126 sec/60° @6.0V

0.110 sec/60° @7.4V

0.100 sec/60° @8.4V

Stall Torque

25 kg·cm (347 oz·in) @4.8V

29 kg·cm (403 oz·in) @6.0V

35 kg·cm (486 oz·in) @7.4V

40 kg·cm (556 oz·in) @8.4V

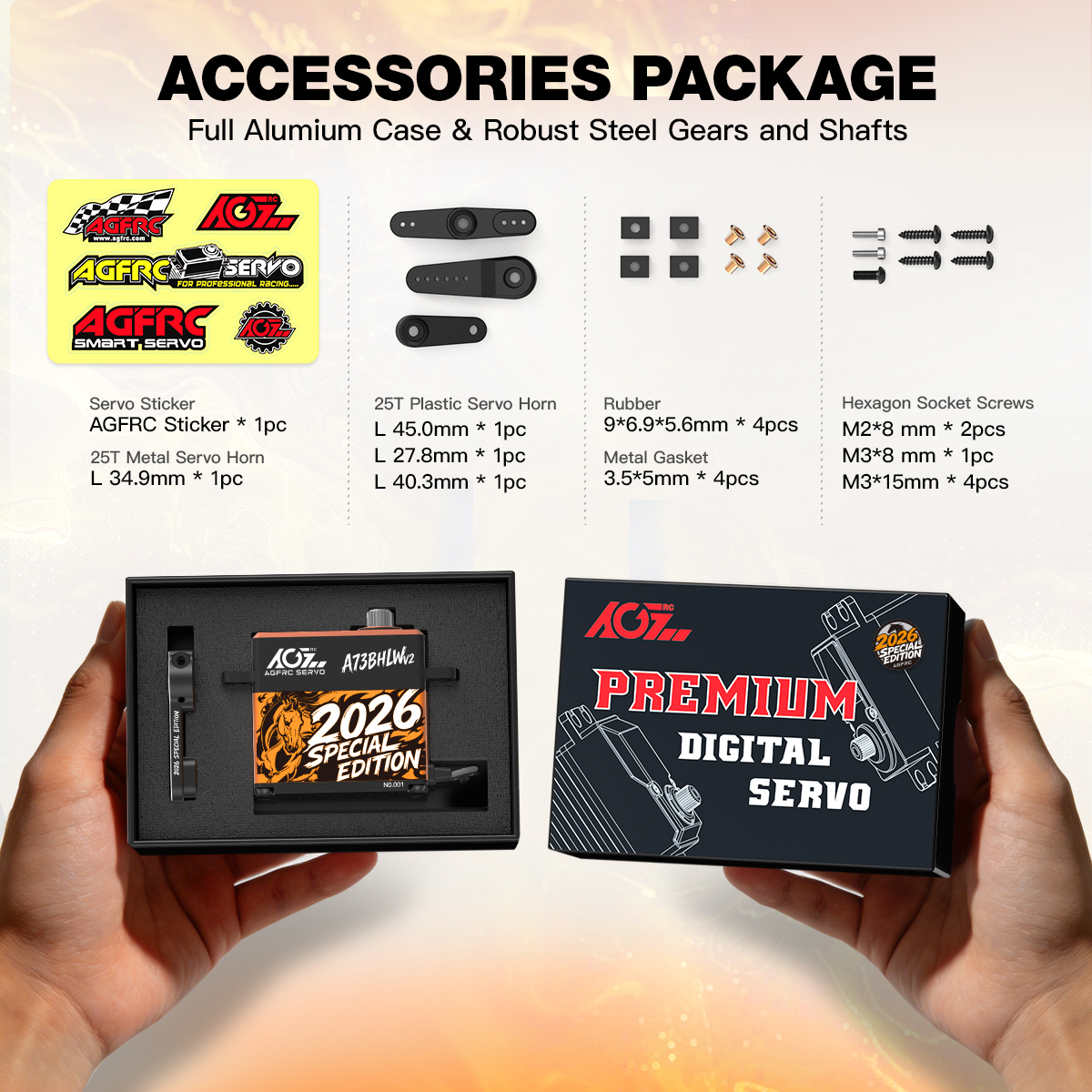

PACKAGE INCLUDES

➤ 1 x 2026 A73BHLW V2 Servo

➤ 1 x 25T Metal Horn

➤ 3 x 25T Plastic Horn

➤ 4 x Mounting Screw

➤ 3 x Horn Screw

➤ 4 x Rubber Pad

➤ 4 x Copper Sleeve

➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.

➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
