2026 Special Edition A50BHL 19KG High Torque Programmable Low Profile Brushless Digital Servo for Drift Car
With sufficient stock, packages will be shipped within 2 working days.
Insufficient stock, we will inform you as soon as the lead time is confirmed.
The package is expected to be delivered within 4 - 9 days after shipment.
AGFRC 19KG High Torque Programmable Low Profile Brushless Digital Servo for Throttle or Steering (2026 Special A50BHL)

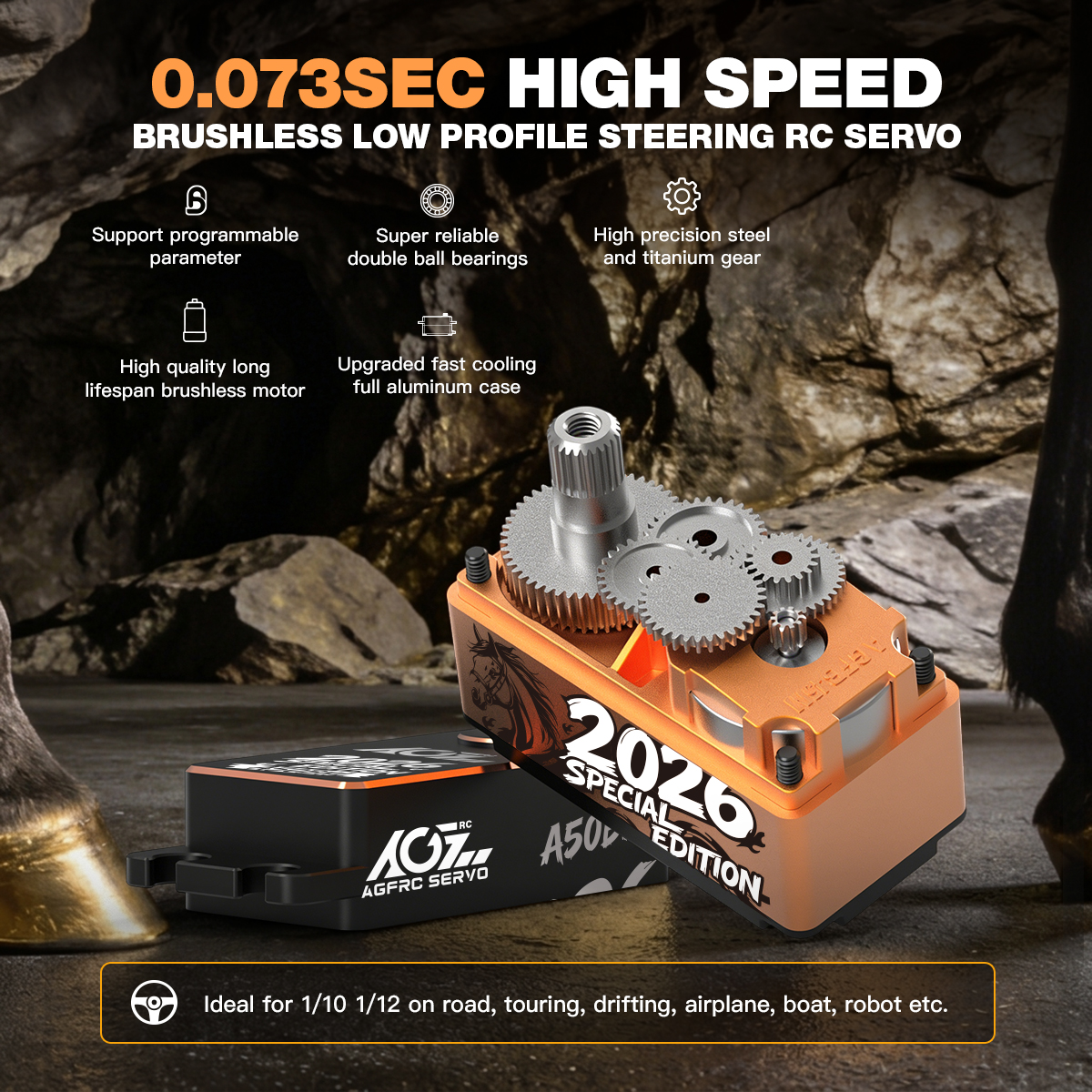

➤ The A50BHL brushless programmable low profile servo is one of the most popular products for 1/10 1/12 drift car enthusiasts. In addition, high-precision steel gears and silk-smooth dual ball bearings can effectively ensure the smooth operation of the servo. Bring you a drifting experience like never before.
MAIN FEATURES
➤ High Performance Low Profile Digital Servo.
➤ High Precision Steel Gear.
➤ High Quality Brushless Motor.
➤ Full Aluminium Heat Sink Case.
➤ Programmable Digital Circuit.
➤ Design for 1/10, 1/12 drift car, on road, touring, drifting, airplane, boat, robot, etc.

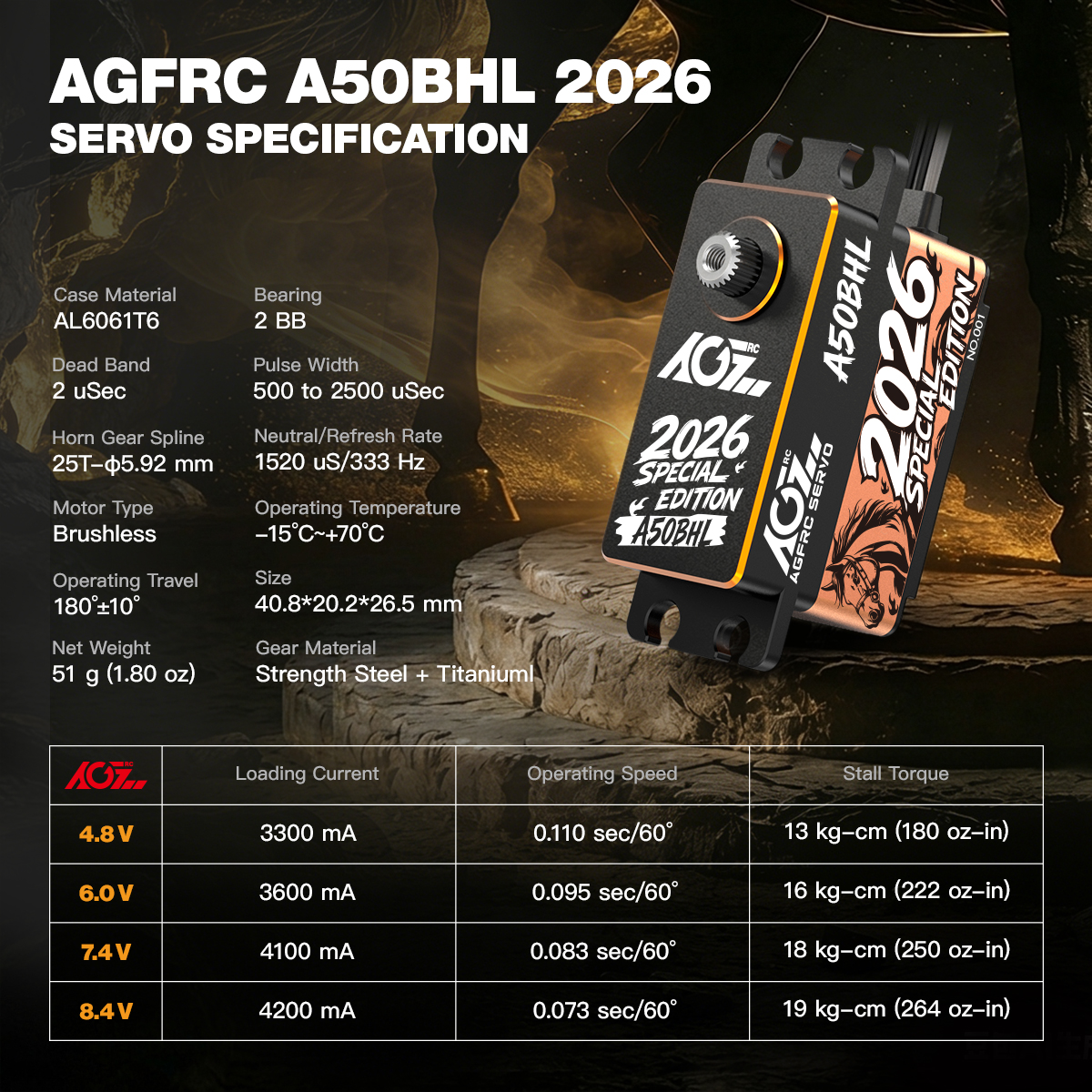

SPECIFICATIONS
Operating Voltage
4.8V - 8.4V
Temperature Range
-15°C - +70°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
180 ± 10°
Programmable
Yes
Case Material
Aluminum
Gear Material
Strength Steel
Sensor Type
Magnetic Sensor
Motor Type
Brushless
Bearing
2BB
Direction
CCW
Horn Gear Spline
25T-ɸ5.92 mm
Wire
JR 180mm / 22AWG
Wire Color
Dimensions
40.8*20.2*26.5mm
Weight
50g
Operating Speed
0.110 sec/60° @4.8V
0.095 sec/60° @6.0V
0.083 sec/60° @7.4V
0.073 sec/60° @8.4V
Stall Torque
13 kg·cm (180 oz·in) @4.8V
16 kg·cm (222 oz·in) @6.0V
18 kg·cm (250 oz·in) @7.4V
19 kg·cm (264 oz·in) @8.4V

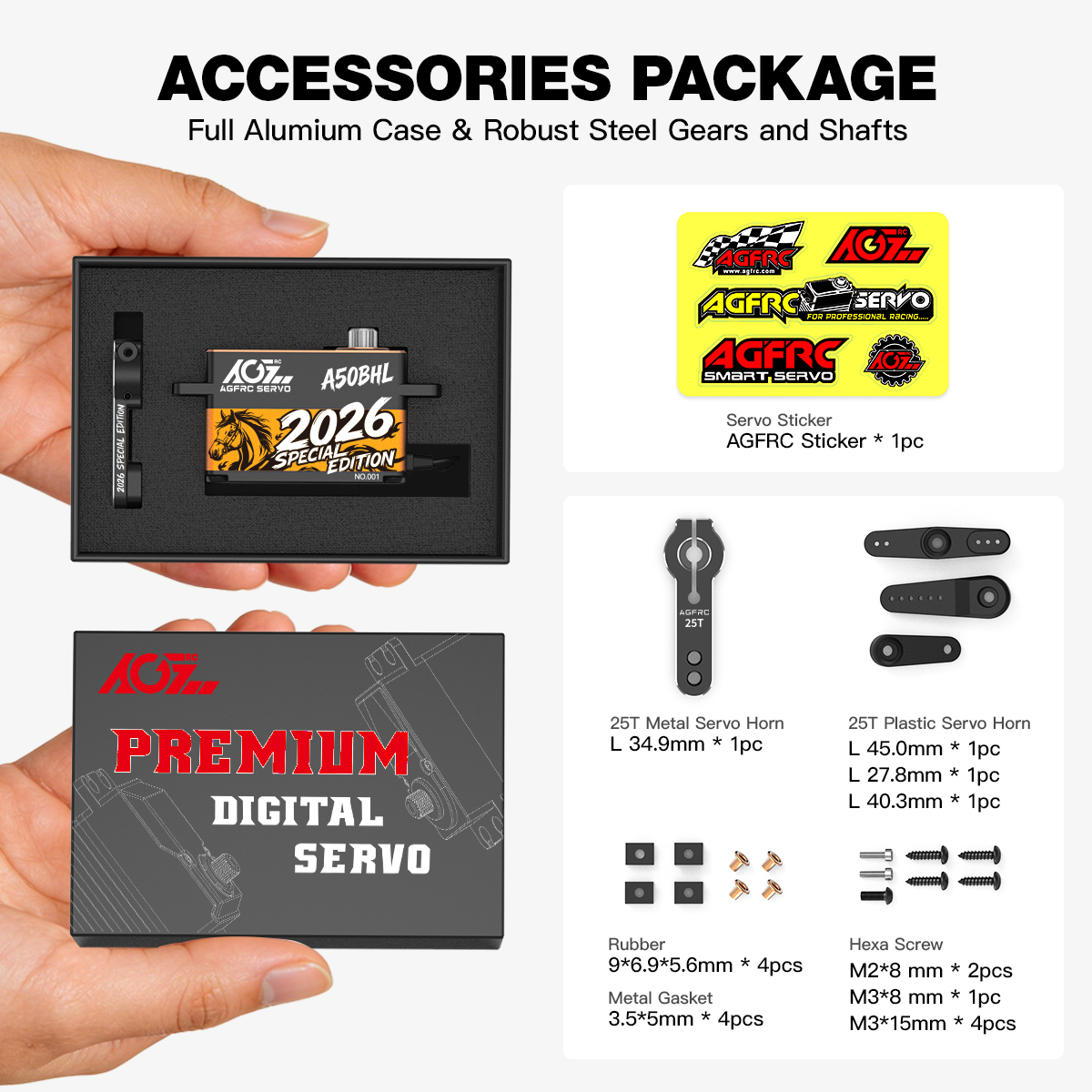

PACKAGE INCLUDES
➤ 1 x 2026 A50BHL Servo
➤ 1 x 25T Metal Horn
➤ 3 x 25T Plastic Horn
➤ 4 x Mounting Screw
➤ 3 x Horn Screw
➤ 4 x Rubber Pad
➤ 4 x Copper Sleeve
➤ Perhaps you will need a spec datasheet or other related documents of the products. If there is a download button, it means you can simply click to download. We will continuously update the latest files for each product.
➤ If you do not find the file you want, please feel free to contact shopping@agfrc.com directly.
