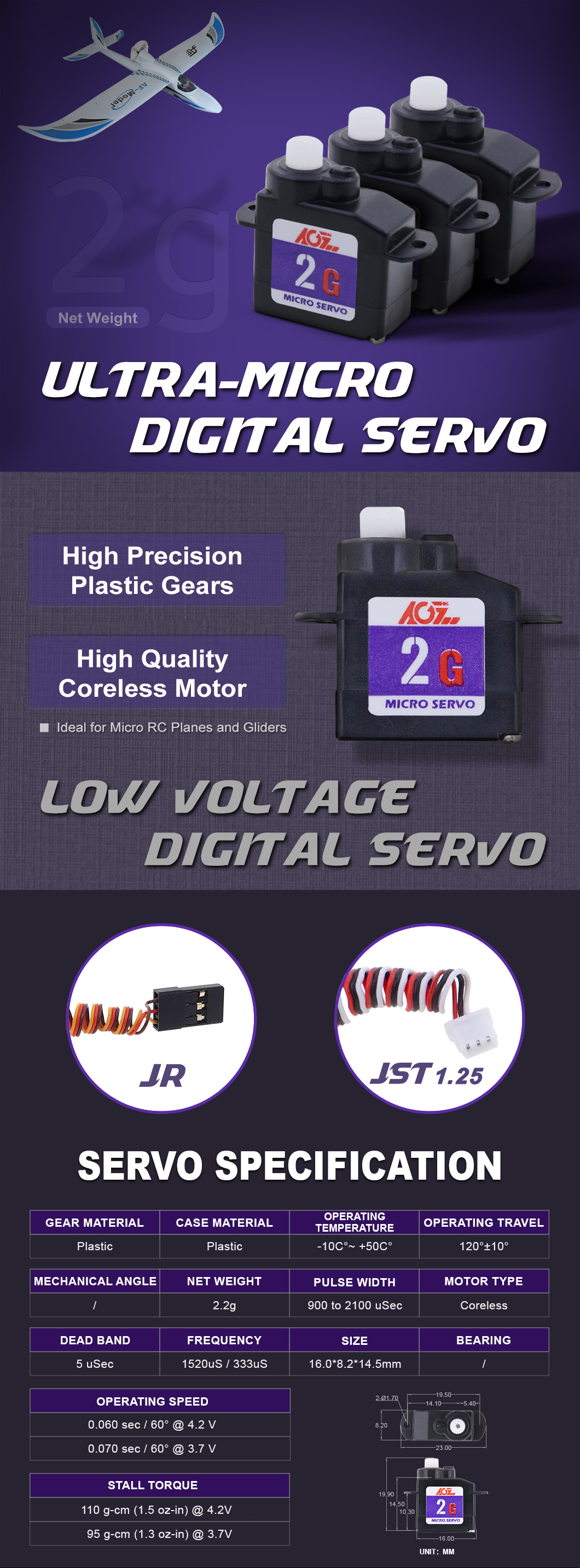

AGFRC Brand C02CLS Super Light 2.2g Coreless Digital Servo for Remote Control Helicopter Aircraft
➤ C02CLS is a 2.2g micro servo with a 4.2V low-voltage capable sub-micro nano digital circuit. It is made in 20T spline, potentiometer angle sensor, and coreless motor, feature with 120 degree operating travel angle. Suitable for most small-scale hobby asked for 1S powered applications.
MAIN FEATURES
➤ High Performance Digital Servo
➤ High Precision Plastic Gears
➤ High Quality Coreless Motor
SPECIFICATIONS
Operating Voltage
3.6V - 4.2V
Temperature Range
-10°C - +50°C
Refresh Rate
1520 µS / 333Hz
Travel Angle
120 ± 10°
Programmable
No
Case Material
Plastic
Gear Material
plastic
Sensor Type
Potentiometer
Motor Type
Coreless
Bearing
- -
Direction
CCW
Horn Gear Spline
20T-ɸ3.85 mm
Wire
JST(JR) 100mm / 32AWG
Wire Color
Dimensions
20.2 x 8.5 x 19.3mm
Weight
2.2g
Operating Speed
0.070 sec/60° @3.7V
0.060 sec/60° @4.2V
Stall Torque
95 g·cm (1.3 oz·in) @3.7V
100 g·cm (1.5 oz·in) @4.2V
PACKAGE INCLUDES
➤ 1 x C02CLS Servo
➤ 4 x Plastic Horn
➤ 2 x Mounting Screw
➤ 1 x Horn Screw
